Question 251

(0)

Click the exhibit. The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succ

Question 252

(0)

Which of the following about VPN labels is FALSE?

Question 253

(0)

Click the exhibit. Based on this output from PE router R1, how many other PEs are participating in the VPRN?

Question 254

(0)

On which object is ADSPEC enabled?

Question 255

(0)

An SDP using GRE encapsulation is configured for an E-pipe service. The network port used by the SDP has an MTU of 8000. What value does the SDP path MTU have by default on an Nokia 7750 SR?

Question 256

(0)

A VPLS receives a frame with the single VLAN tag 35 on the Q-in-Q SAP 1/1/1:35.*. Which of the following describes default Nokia 7750 SR behavior?

Question 257

(0)

Which of the following about the Isp-ping command on the Nokia 7750 SR is FALSE?

Question 258

(0)

Click the exhibit. The operator at PE1 wants to analyze the traffic between CE4 and PE2. On an Nokia 7750 SR, which of the following is required as part of the configuration?

Question 259

(0)

Which of the following about route distinguishes on the Nokia 7750 SR is TRUE?

Question 260

(0)

Which of the following about VPRNs is TRUE?

Question 251

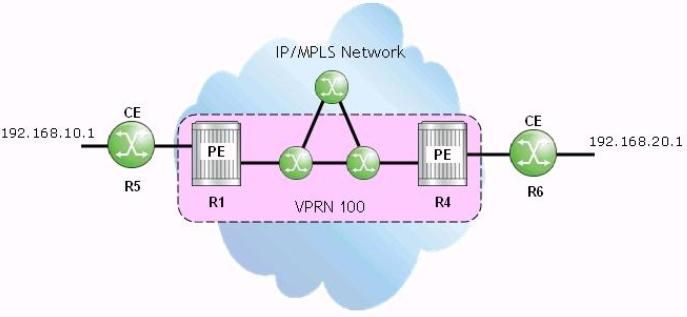

Click the exhibit.

The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succeed when performed on router R1?

'ping 192.168.20.1'

'oam vprn-ping 100 source 192.168.10.1 destination 192.168.20.1'

'oam vprn-ping 100 source 192.168.20.1 destination 192.168.10.1'

'ping 10.10.10.6' (router R6's system IP)

Show Answer Comment (0)

Question 252

Which of the following about VPN labels is FALSE?

They are signaled between PE devices using MP-BGP.

They are swapped at each P router as a packet crosses the service provider network.

They are also known as the inner label or service label.

They indicate to the egress PE the VPRN to which a packet belongs.

Show Answer Comment (0)

Question 253

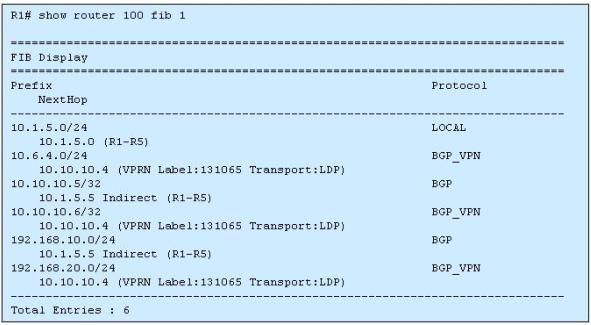

Click the exhibit.

Based on this output from PE router R1, how many other PEs are participating in the VPRN?

Show Answer Comment (0)

Question 254

On which object is ADSPEC enabled?

SDP

Network port

LSP

Service

RSVP

Show Answer Comment (0)

Question 255

An SDP using GRE encapsulation is configured for an E-pipe service. The network port used by the SDP has an MTU of 8000. What value does the SDP path MTU have by default on an Nokia 7750 SR?

7958

7978

8022

8042

Show Answer Comment (0)

Question 256

A VPLS receives a frame with the single VLAN tag 35 on the Q-in-Q SAP 1/1/1:35.*. Which of the following describes default Nokia 7750 SR behavior?

The frame is dropped.

The VLAN tag is removed, and the frame is transported over the network.

The VLAN tag is kept, and the frame is transported over the network.

The VLAN tag is kept, a VLAN of 0 is added, and the frame is transported over the network.

Show Answer Comment (0)

Question 257

Which of the following about the Isp-ping command on the Nokia 7750 SR is FALSE?

An echo request is sent based on the LSP's label stack.

Echo reply packets may not take the same path as the LSP.

The IP destination address is used to initiate echo requests,

The test fails if the LSP is not operationally up.

Show Answer Comment (0)

Question 258

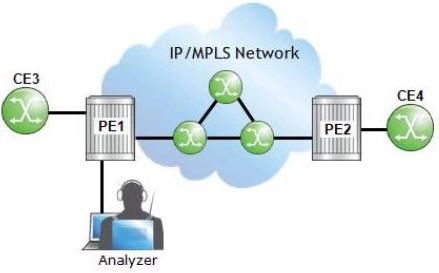

Click the exhibit.

The operator at PE1 wants to analyze the traffic between CE4 and PE2. On an Nokia 7750 SR, which of the following is required as part of the configuration?

Both PE1 and PE2 need a mirror source.

PE2 needs a mirror source with the remote source specified.

PE1 needs a mirror source with the remote source specified.

Both PE1 and PE2 need a mirror destination.

PE2 needs a mirror destination that specifies a SAP.

Show Answer Comment (0)
