Question 281

(0)

Which of the following about transport and service tunnels is FALSE?

Question 282

(0)

In a Layer 2 encapsulation using T-LDP, what does the second (bottom) label represent?

Question 283

(0)

Which of the following statements about SAPs that are part of a VPVVS is FALSE?

Question 284

(0)

Which of the following about SAPs is TRUE?

Question 285

(0)

An E-pipe is configured with a service MTU of 5000. What is the minimum MTU value that should be set on an access port for a dot1q encapsulated SAP on this service?

Question 286

(0)

On an Nokia 7750 SR, which of the following statements about the default advertisement of VRF routes is true?

Question 287

(0)

Which of the following comparisons between E-pipes and VPLSes is FALSE?

Question 288

(0)

Which of the following about the Nokia 7750 SR sdp-ping is TRUE?

Question 289

(0)

Click on the exhibit button below. Which of the following is the correct configuration for an MP-BGP session on 6VPE1?

Question 290

(0)

Which of the following statements is FALSE regarding 6VPE?

Question 281

Which of the following about transport and service tunnels is FALSE?

Service tunnels are unidirectional.

Transport tunnels are unidirectional.

A service will use the same service label for every hop.

A local service requires a transport tunnel.

Show Answer Comment (0)

Question 282

In a Layer 2 encapsulation using T-LDP, what does the second (bottom) label represent?

Tunnel Label

VC Label

Operational Control Word

VPI

VCI

Show Answer Comment (0)

Question 283

Which of the following statements about SAPs that are part of a VPVVS is FALSE?

SAPs can be defined on Ethernet, POS, Sonet/SDH, or TDM channels.

Only one SAP is required for a service that originates and terminates on the same Nokia 7750 SR.

SAPs can have QoS policies assigned to them.

Multiple SAPs can be defined on the same port.

Show Answer Comment (0)

Question 284

Which of the following about SAPs is TRUE?

More than one SAP can be configured on a physical port that is configured for null encapsulation.

Dot1Q Ethernet encapsulated access ports can support multiple SAPs and services.

SAPs can be created on ports designated as 'Network'.

SAPs can only be created on Ethernet ports.

Show Answer Comment (0)

Question 285

An E-pipe is configured with a service MTU of 5000. What is the minimum MTU value that should be set on an access port for a dot1q encapsulated SAP on this service?

5000

5004

5008

5014

Show Answer Comment (0)

Question 286

On an Nokia 7750 SR, which of the following statements about the default advertisement of VRF routes is true?

All routes in the VRF are advertised to the PEs and CEs.

No routes in the VRF are advertised to the PEs or to the CEs.

All routes in the VRF are advertised to the PEs, but not to the CEs.

All routes in the VRF are advertised to the CEs, but not to the PEs.

Show Answer Comment (0)

Question 287

Which of the following comparisons between E-pipes and VPLSes is FALSE?

They both function as a Layer 2 switch from the service provider's perspective.

They both support SAP encapsulations of null, dot1Q and Q-in-Q.

They both use SAPs as the demarcation point between the customer and the provider.

MAC addresses are learned by VPLSes, but not by E-pipes.

Show Answer Comment (0)

Question 288

Which of the following about the Nokia 7750 SR sdp-ping is TRUE?

It tests the IGP reachability of the far-end IP address of an SDP.

It tests that the MTU settings of a service are correct.

It tests in-band, uni-directional or round-trip connectivity of SDPs.

It tests the reachability of hosts connected to an SDP.

Show Answer Comment (0)

Question 289

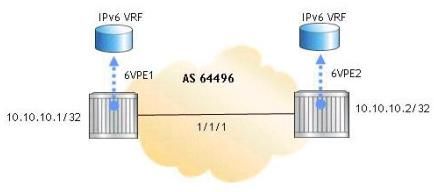

Click on the exhibit button below.

Which of the following is the correct configuration for an MP-BGP session on 6VPE1?

PE1>config>router>bgp#info -------------------------------------------- group 'multi-bgp' family vpn-ipv6 neighbor 10.10.10.2/32 local-address 10.10.10.1 peer-as 64496 exit exit

PE1>config>router>bgp#info ------------------------------------------- group 'multi-bgp' family ipv6 vpn-ipv4 neighbor 10.10.10.2 local-address 10.10.10.1 peer-as 64496 exit exit

PE1>config>router>bgp#info -------------------------------------------- group 'multi-bgp' family vpn-ipv6 neighbor 10.10.10 2 local-address 10.10.10.1 peer-as 64496 exit exit

PE1>config>router>bgp#info -------------------------------------------- group 'multi-bgp' family ipv6 vpn-ipv6 neighbor 10.10.10.2/32 local-address 10.10.10.1 peer-as 64496 exit exit

Show Answer Comment (0)
