The WAN connection of a Cisco Meraki MX security appliance is congested, and the MX appliance is buffering the traffic from LAN ports going to the WAN ports. High, normal, and low priority queue buffers are all full. Which proportion of the normal traffic is forwarded compared to the other queues?
4/10 packets
2/7 packets
2/10 packets
5/15 packets
Which enrollment method must be used when containerization is required on BYOD Android devices managed by Systems Manager?
Android Enterprise utilizing a Work Profile
Systems Manager network ID
Android Business utilizing a BYOD Profile
Systems Manager container ID
What is out of scope when considering the Best practices for high-density wireless designs?
maximum beamforming
band selection
minimum bitrate
number of SSIDs

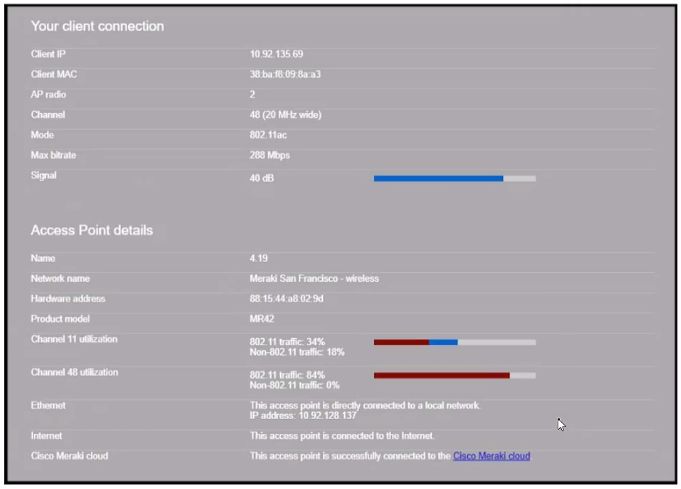

Refer to the exhibit.
Why does the end user complain of poor wireless performance?
Channel 48 utilization is at 84 percent.
Non-802.11 traffic of 18 percent indicates poor AP placement.
The client is connected to the secondary radio of the AP instead of the primary radio
The client is using a 20 MHz channel width to connect.
A Cisco Meraki MX security appliance is trying to route a packet to the destination IP address of 172.18.24.12. Which routes contained in its routing table does it select?
Auto VPN route 172.18.0.0/16
static route 172.16.0.0/12
non-Meraki VPN route 172.18.24.0/24
directly connected 172.18.16.0/20
A Cisco Meraki MV camera is monitoring an office and its field of vision currently captures work desks and employee computer screens. However, recording employee computer screens is prohibited by local regulation.
Which feature in Dashboard can be used to preserve the current position of the camera while also meeting regulation requirements?
zone exclusion
privacy window
area or interest
sensor crop
restricted mode
Which Cisco Meraki product must be deployed in addition to Systems Manager so that Systems Manager Sentry enrollment can be used?
MS Switch
Meraki Insight
MR Access Point
MV Smart Camera
Which information do the MXs in a High Availability pair share?
spanning-tree state
time synchronization state
DHCP association database
stateful firewall database
Which VLAN is used to source pings across the site-to-site VPN when using the MX Live tools?
highest VLAN ID that is configured and set to NO to use VPN
lowest VLAN ID that is configured and set to YES to use VPN
highest VLAN ID that is configured and set to YES to use VPN
lowest VLAN ID configured and set to NO to use VPN
A new application needs to be pushed to all iOS devices. Some devices report ''NotNow'' in the event log and do not install the application.
What does the ''NotNow'' event indicate?
The application requires the most recent iOS version.
The device is locked with a passcode.
The device cannot connect to Apple servers.
The device cannot connect to Cisco Meraki servers.
