Blue Prism AD01 Practice Test - Questions Answers, Page 2

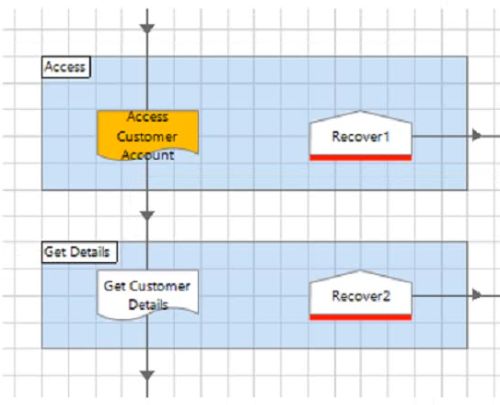

Understanding the Diagram and Process Flow:

The process includes a sub-page called 'Access Customer Account', which contains an error.

When debugging, choosing to 'Step Over' (F10) will execute the sub-page without stepping into each individual stage within it.

Exception Handling in Blue Prism:

If an error occurs within the 'Access Customer Account' sub-page, the process will throw an exception.

The process will then move to the appropriate Recover stage to handle the exception.

Recover Stage Focus:

Option A: Incorrect. Focus will not move directly to the stage containing the error within the sub-page.

Option B: Incorrect. The process does not move to the internal recover stage of the sub-page if there are no breakpoints.

Option C: Correct. The process will move to the 'Recover1' stage after the exception is thrown, as it is the appropriate recover stage for handling the error.

Option D: Incorrect. Focus will not move to the 'Get Customer Details' stage, as the exception handling logic will direct it to 'Recover1'.

Conclusion:

The correct answer is C. The process will work all stages in the 'Access Customer Account' page until the exception is thrown, and then focus will move to the 'Recover1' stage.

Blue Prism Developer Documentation: Exception Handling and Recovery Stages

Blue Prism Training Material on Debugging and Exception Management

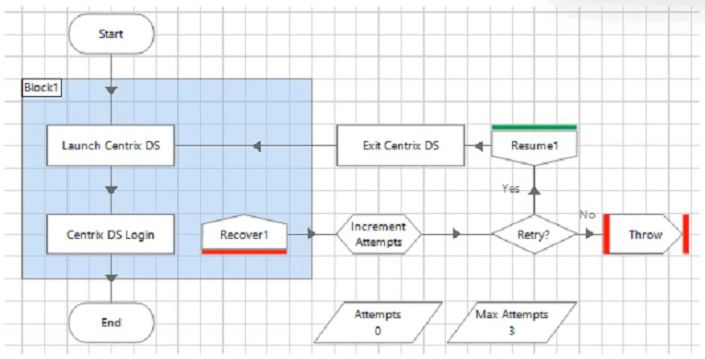

Understanding the Process Flow:

The process is designed to attempt the actions within Block1 up to three times before throwing an exception.

The 'Attempts' data item starts at 0 and is incremented by 1 each time the Increment Attempts Calculation stage is executed.

The 'Max Attempts' data item is set to 3, which represents the maximum number of allowed attempts.

Calculation Stage Expression:

The correct expression for incrementing the 'Attempts' data item should add 1 to the current value of 'Attempts'.

In Blue Prism, data items are referenced using square brackets. Therefore, the correct expression should be [Attempts] + 1.

Analysis of Options:

Option A: +1 is incomplete and not correct.

Option B: Attempts +1 is incorrect because it lacks the proper referencing syntax.

Option C: Max Attempts + 1 is incorrect because it references the wrong data item and will result in the incorrect calculation.

Option D: {Attempts + 1 is incorrect due to syntax issues.

Option E: [Attempts] + 1 is the correct expression, using proper syntax to reference the 'Attempts' data item.

Conclusion:

The correct expression for the 'Increment Attempts' Calculation stage is E. [Attempts] + 1.

Blue Prism Developer Documentation: Calculation Stages

Blue Prism Training Material on Data Item Reference
