Microsoft AZ-500 Practice Test - Questions Answers, Page 21

References:

https://blogs.technet.microsoft.com/manageabilityguys/2015/11/19/enabling-the-microsoft-monitoring-agent-in-windows-json-templates/

The following example identifies user accounts that failed to log in more than five times in the last day, and when they last attempted to log in.

let timeframe = 1d;

SecurityEvent

| where TimeGenerated > ago(1d)

| where AccountType == 'User' and EventID == 4625 // 4625 - failed log in

| summarize failed_login_attempts=count(), latest_failed_login=arg_max(TimeGenerated, Account) by Account | where failed_login_attempts > 5

| project-away Account1

References:

https://docs.microsoft.com/en-us/azure/azure-monitor/log-query/examples

Box1: Activity log

Azure activity logs provide insight into the operations that were performed on resources in your subscription. Activity logs were previously known as “audit logs” or “operational logs,” because they report control-plane events for your subscriptions.

Activity logs help you determine the “what, who, and when” for write operations (that is, PUT, POST, or DELETE).

Box 2: Logs

Log Integration collects Azure diagnostics from your Windows virtual machines, Azure activity logs, Azure Security Center alerts, and Azure resource provider logs. This integration provides a unified dashboard for all your assets, whether they're on-premises or in the cloud, so that you can aggregate, correlate, analyze, and alert for security events.

References:

https://docs.microsoft.com/en-us/azure/security/azure-log-audit

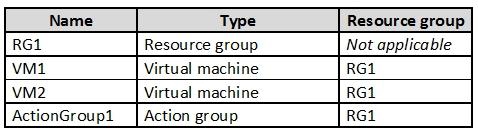

Box 1:

The scope for the action rule is set to VM1 and is set to suppress alerts indefinitely.

Box 2:

The scope for the action rule is not set to VM2.

Box 3:

Adding a tag is not an administrative operation.

References:

https://docs.microsoft.com/en-us/azure/azure-monitor/platform/alerts-activity-log

https://docs.microsoft.com/en-us/azure/azure-monitor/platform/alerts-action-rules

Note: Choose 3 boxs, not all

References:

https://docs.microsoft.com/en-us/azure/azure-monitor/insights/solution-targeting

Just-in-time (JIT) virtual machine (VM) access can be used to lock down inbound traffic to your Azure VMs, reducing exposure to attacks while providing easy access to connect to VMs when needed.

Note: When just-in-time is enabled, Security Center locks down inbound traffic to your Azure VMs by creating an NSG rule. You select the ports on the VM to which inbound traffic will be locked down. These ports are controlled by the just-in-time solution.

When a user requests access to a VM, Security Center checks that the user has Role-Based Access Control (RBAC) permissions that permit them to successfully request access to a VM. If the request is approved, Security Center automatically configures the Network Security Groups (NSGs) and Azure Firewall to allow inbound traffic to the selected ports and requested source IP addresses or ranges, for the amount of time that was specified. After the time has expired, Security Center restores the NSGs to their previous states. Those connections that are already established are not being interrupted, however.

Reference:

https://docs.microsoft.com/en-us/azure/security-center/security-center-just-in-time

A network security group (NSG) enables you to filter inbound traffic to, and outbound traffic from, a virtual machine (VM). You can log network traffic that flows through an NSG with Network Watcher's NSG flow log capability. Steps include:

Create a VM with a network security group

Enable Network Watcher and register the Microsoft.Insights provider

Enable a traffic flow log for an NSG, using Network Watcher's NSG flow log capability

Download logged data

View logged data

Reference:

https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-nsg-flow-logging-portal

When automatic provisioning is On, Security Center provisions the Log Analytics Agent on all supported Azure VMs and any new ones that are created.

Supported Operating systems include: Ubuntu 14.04 LTS (x86/x64), 16.04 LTS (x86/x64), and 18.04 LTS (x64) and Windows Server 2008 R2, 2012, 2012 R2, 2016, version 1709 and 1803

Reference:

https://docs.microsoft.com/en-us/azure/security-center/security-center-enable-data-collection
