HOTSPOT

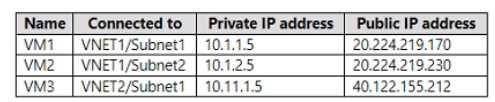

You have an Azure subscription that contains the virtual machines shown in the following table.

Subnet1 and Subnet2 have a network security group {NSG). The NSG has an outbound rule that has the following configurations:

• Port; Any

• Source: Any

• Priority: 100

• Action: Deny

• Protocol: Any

• Destination: Storage

The subscription contains a storage account named storage1.

You create a private endpoint named Private1 that has the following settings:

• Resource type: Microsoft.Storage/storageAccounts

• Resource: storage1

• Target sub-resource: blob

• Virtual network: VNet1

• Subnet: Subnet1

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

HOTSPOT

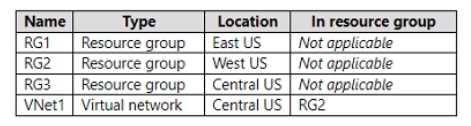

You have an Azure subscription that contains the resources shown in the following table.

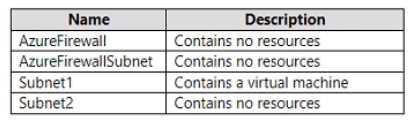

VNet1 contains the subnets shown in the following table.

You plan to use the Azure portal to deploy an Azure firewall named AzFW1 to VNet1.

Which resource group and subnet can you use to deploy AzFW1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

DRAG DROP

You have an Azure subscription that contains an Azure web app named Appl.

You plan to configure a Conditional Access policy for App1. The solution must meet the following requirements:

• Only allow access to App1 from Windows devices.

• Only allow devices that are marked as compliant to access App1.

Which Conditional Access policy settings should you configure? To answer, drag the appropriate settings to the correct requirements. Each setting may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

HOTSPOT

You have an Azure subscription that is linked to an Azure AD tenant and contains the virtual machines shown in the following table.

The subnets of the virtual networks have the service endpoints shown in the following table.

You create the resources shown in the following table.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE:

Each correct selection is worth one point.

HOTSPOT

You have an Azure subscription that contains a user named User1 and a storage account named storage1. The storage1 account contains the resources shown in the following table.

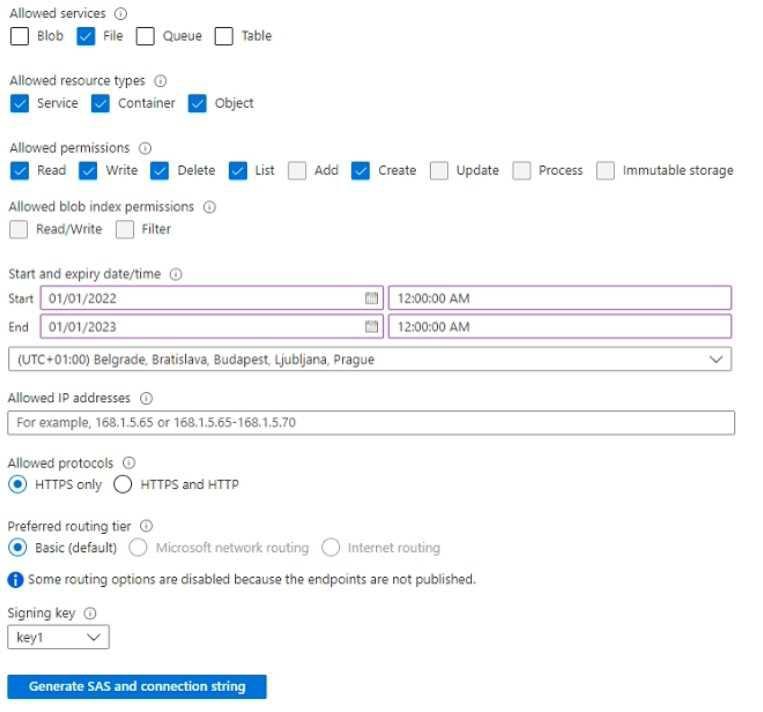

In storage1, you create a shared access signature (SAS) named SAS1 as shown in the following exhibit.

To which resources can User! write on July 1, 2022 by using SAS1 and key 1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

HOTSPOT

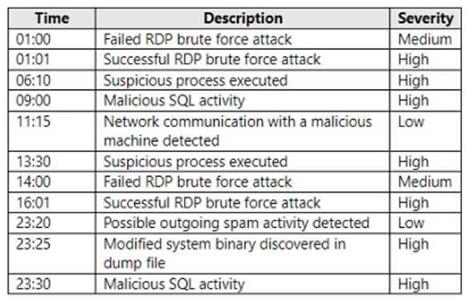

On Monday, you configure an email notification in Microsoft Defender for Cloud to notify user1 @contoso.com about alerts that have a severity level of Low, Medium, or High. On Tuesday, Microsoft Defender for Cloud generates the security alerts shown in the following table.

How many email notifications will user1 @contoso.com receive on Tuesday? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

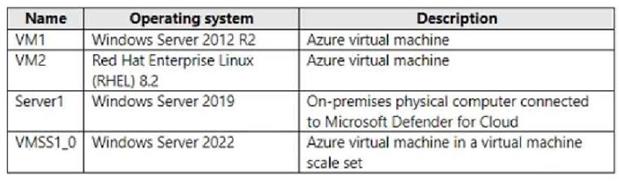

You have an Azure subscription and the computers shown in the following table.

You need to perform a vulnerability scan of the computers by using Microsoft Defender for Cloud.

Which computers can you scan?

HOTSPOT

You have an Azure Subscription that is linked to an Azure Active Directory (Azure AD). The tenant contains the users shown in the following table.

You have an Azure key vault named Vault1 that has Purge protection set to Disabled. Vault1 contains the access policies shown in the following table.

You create role assignments for Vault1 as shown in the following table.

For each of the following statements, Yes if the statement is true, Otherwise, select No.

NOTE: Each correct selection is worth one point.

You have an Azure subscription that contains a Microsoft Defender External Attack Surface

Management (Defender EASM) resource named EASM1. EASM1 has discovery enabled and contains several inventory assets. You need to identify which inventory assets are vulnerable to the most critical web app security risks. Which Defender EASM dashboard should you use?
