Your company has five offices. Each office has a firewall device and a local internet connection. The offices connect to a third-party SD-WAN. You have an Azure subscription that contains a virtual network named Vnet1. Vnet1 contains a virtual network gateway named Gateway1. Each office connects to Gateway1 by using a Site-to-Site VPN connection. You need to replace the third-party SD-WAN with an Azure Virtual WAN. What should you include in the solution?

You have an Azure subscription that contains a virtual network named Vnet1. Vnet1 contains 20 subnets and 500 virtual machines. Each subnet contains a virtual machine that runs network monitoring software.

You have a network security group (NSG) named NSG1 associated to each subnet.

When a new subnet is created in Vnet1, an automated process creates an additional network monitoring virtual machine in the subnet and links the subnet to NSG1.

You need to create an inbound security rule in NS61 that will allow connections to the network monitoring virtual machines from an IP address of 131.107.1.15. The solution must meet the following requirements:

• Ensure that only the monitoring virtual machines receive a connection from 131.107.1.15.

• Minimize changes to NSG1 when a new subnet is created.

What should you use as the destination in the inbound security rule?

HOTSPOT

You have an Azure subscription that contains the virtual networks shown in the following table.

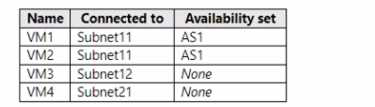

The subscription contains the virtual machines shown in the following table.

You create a load balancer named LB1 that has the following configurations:

• SKU: Basic

• Type: Internal

• Subnet: Subnetl2

• Virtual network VNet1

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE:

Each correct selection is worth one point.

HOTSPOT

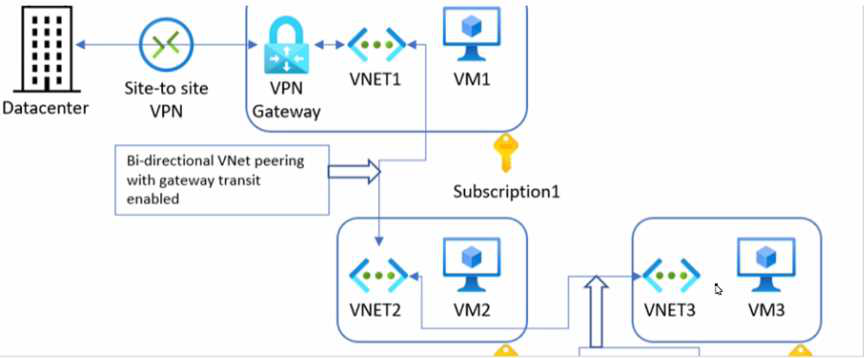

You have the Azure environment shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.

HOTSPOT

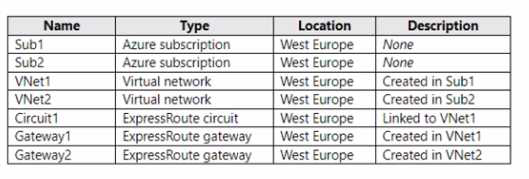

You have the Azure resources shown in the following table.

You need to link VNei2 to Circuit1

What should you create in each subscription? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

HOTSPOT

You have an Azure subscription that contains the resource groups shown in the following table.

You have the virtual networks shown in the following table.

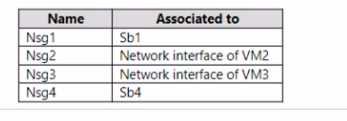

Vne1l contains two virtual machines named VM1 and VM2. Vnet2 contains two virtual machines named VM3 and VM4. You have the network security groups (NSGs) shown in the following table that include only default rules.

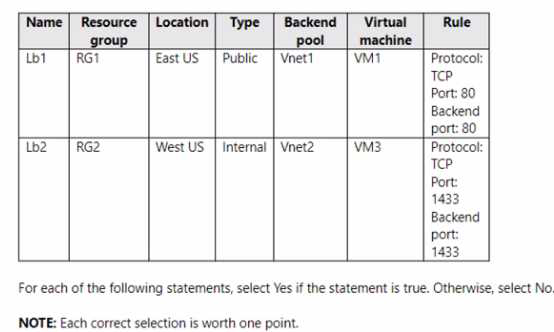

You have the Azure load balancers shown in the following table.

DRAG DROP

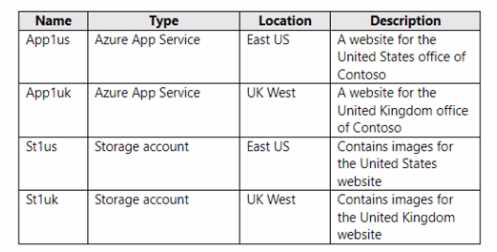

Your company, named Contoso, Ltd, has an Azure subscription that contains the resources show in the following table.

You plan to deploy Azure Front Door. The solution must meet the following requirement:

• Requests to a URL of https://contoso.azurefd.net/uk must be routed to App1uk.

• Requests to a URL of https://contoso.azurefd.net/us must be routed to App1us.

• Requests to a URL of https://contoso.azurefd.net/images must be routed to the storage account closest to the user.

What is the minimum number of backend pools and routing rules you should create? To answer, the appropriate number to the correct component. Each number may be used once, more than once, or not at all. You may need to drag the spilt bar between panes scroll to view content:

Note: Each correct selection is worth one point.

DRAG DROP

You have an Azure subscription that contain a viral network named Vnet1 and an Azure SQL database named SQL1 has a private endpoint on Vnet1.

You have a partner company named fabrikam, has an Azure subscription that contains a virtual network named Vnet1 and a virtual machine named VM1, VM1 is connected to Vnet2

You need to provide VM1 with accesss to SQL 1 by using an Azure private Link service.

What should you implement on each virtual network? To answer, drag the appropriate resources to the correct virtual networks. Each resource may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content Note: Each correct selection is worth one point.

HOTSPOT

Your on-premises network contains a VPN device.

You have an Azure subscription that contains a virtual network and a virtual network gateway.

You need to create a Site-to-Site VPN connection that has a custom cryptographic policy.

How should you complete the PowerShell script? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.
