Microsoft AZ-700 Practice Test - Questions Answers, Page 15

You plan to implement an Azure virtual network that will contain 10 virtual subnets. The subnets will use IPv6 addresses. Each subnet will host up to 200 load-balanced virtual machines.

You need to recommend which subnet mask size to use for the virtual subnets.

What should you recommend?

You have 10 on-premises networks that are connected by using a 3rd party Software Defined Wide Area Network (SD-WAN) solution. You have an Azure subscription that contains five virtual networks.

You plan to connect the Azure virtual networks and the on-premises networks by using an Azure Virtual WAN with a single virtual WAN hub.

You need to ensure that the Azure Virtual WAN can act as a node in the 3rd party SD-WAN solution.

What should you include in the solution?

HOTSPOT

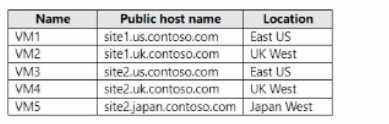

You have an Azure subscription. The subscription contains virtual machines that host websites as shown in the following table.

You have the Azure Traffic Manager profiles shown in the following table.

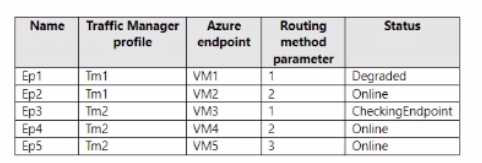

You have the endpoints shown in the following table.

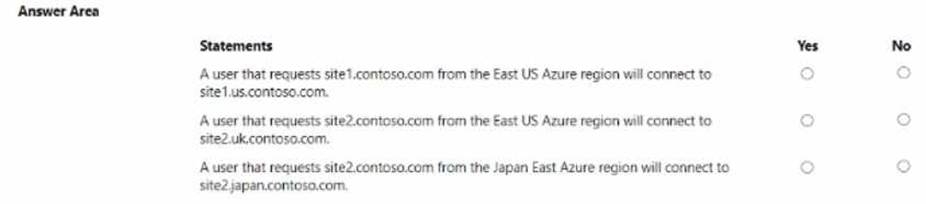

For each of the following statements, select Yes if the statement is true. Otherwise select No.

NOTE: Each connect selection is worth one point.

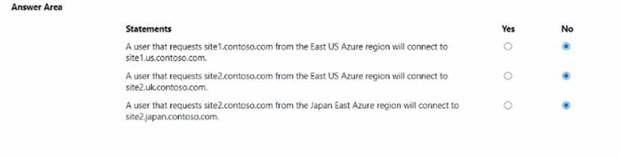

Answer:

You plan to implement an Azure virtual network that will contain 10 virtual subnets. The subnets will use IPv6 addresses. Each subnet will host up to 200 load-balanced virtual machines.

You need to recommend a load balancing solution for the virtual network. The solution must meet the following requirements:

• The virtual machines and the load balancer must be accessible only from the virtual network.

• Costs must be minimized.

What should you include in the recommendation?

You have three on-premises networks.

You have an Azure subscription that contains a Basic Azure virtual WAN. The virtual WAN contains a single virtual hub and a virtual network ateway that is limited to a throughput of 1 Gbps.

The on-premises networks connect to the virtual WAN by using Site-to-Site (S2S) VPN connections.

You need to increase the throughput of the virtual WAN to 3 Gbps. The solution must minimize administrative effort.

What should you do?

Your company has four branch offices and an Azure Subscription. The subscription contains an Azure VPN gateway named GW1.

The branch offices are configured as shown in the following table.

The branch office routers provide internet connectivity and Site-to-Site VPN connections to GW1.

The users in Branch1 report that they can connect to internet resources, but cannot access Azure resources.

You need to ensure that the Branch1 users can connect to the Azure Resources. The solution must meet the following requirements:

• Minimize downtime for all users.

• Minimize administrative effort.

What should you do first?

HOTSPOT

You have an Azure subscription

You plan to use Azure Virtual WAN.

You need to deploy a virtual WAN hub that meets the following requirements:

• Supports 4 Gbps of Site-to-Site (S2S) VPN traffic

• Supports 8 Gbps of ExpressRoute traffic

• Minimizes costs

How many scale units should you configure? To answer select the appropriate options in the answer

area.

NOTE Each correct selection is worth one point.

HOTSPOT

You have an Azure subscription that contains an app named Appl. App1 is deployed to the Azure App Service apps show in the following table.

You need to publish App1 by using Azure Front Door. The solution must ensure that all the requests to App1 are load balanced between all the available worker instances.

What is the minimum number of origin groups and origins that you should configure? To answer,

select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Answer:

You have an Azure subscription that contains a virtual network named Vnet1. Vnet1 contains 20 subnets and 500 virtual machines. Each subnet contains a virtual machine that runs network monitoring software.

You have a network security group (NSG) named NSG1 associated to each subnet.

When a new subnet is created in Vnet1, an automated process creates an additional network monitoring virtual machine in the subnet and links the subnet to NSG1.

You need to create an inbound security rule in NS61 that will allow connections to the network monitoring virtual machines from an IP address of 131.107.1.15. The solution must meet the following requirements:

• Ensure that only the monitoring virtual machines receive a connection from 131.107.1.15.

• Minimize changes to NSG1 when a new subnet is created.

What should you use as the destination in the inbound security rule?
