When two fans in a Dell EMC PowerStore system are faulted, the system's behavior is to send an increased fan speed signal to the surviving fans to compensate for the loss and continue normal operations. This is a part of the system's design to ensure redundancy and maintain cooling within operational parameters even when one or more fans are not functioning1.

The system monitors the health of all fans continuously. If a fan fault is detected, the system will:

Generate an alert to notify the administrator of the fault.

Increase the speed of the remaining fans to prevent overheating.

Continue to operate normally unless the temperature exceeds safe operating limits.

The administrator should then take the following steps:

Acknowledge the alert in the PowerStore Manager.

Plan for the replacement of the faulted fans as soon as possible to restore full redundancy.

Follow the replacement procedures as outlined in the Dell PowerStore Installation and Service Guide2.

It is important to address fan faults promptly to ensure the long-term health and performance of the PowerStore system. The increased fan speed is a temporary measure to maintain operations until the faulted fans can be replaced.

When the node A and B embedded module fault LEDs on a Dell EMC PowerStore system are alternating between blue and amber, with the blue LED illuminated for 3 seconds, it indicates that the system is not initialized1. This LED behavior is part of the system's design to communicate its current state to the user or technician on-site.

The initialization process is a critical step during the installation of a PowerStore system. It involves setting up the system's configuration, including network settings, storage pools, and other essential parameters. Until this process is completed, the system cannot perform storage operations or host any virtual machines.

To resolve this and initialize the system, the following steps should be taken:

Connect to the system through the PowerStore Manager using a supported web browser.

Complete the Initial Configuration Wizard (ICW), which guides you through the necessary steps to initialize the system.

Once the ICW is completed, the system will finalize its configuration and the LEDs should reflect a normal operational state.

For more detailed guidance on the initialization process and understanding the LED indicators, refer to the Dell PowerStore Installation and Service Guide2. This document provides comprehensive instructions on installing and configuring the PowerStore system, ensuring it is ready for use.

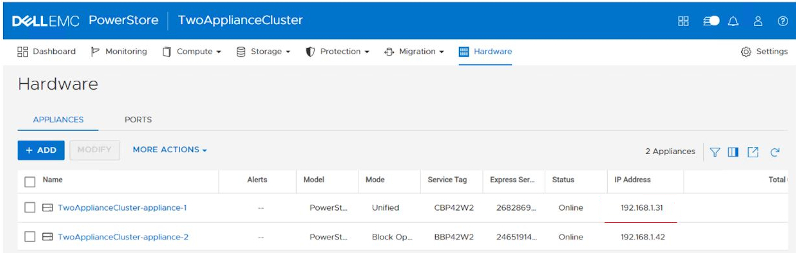

In the Dell EMC PowerStore system, the primary appliance is typically indicated by the 'Mode' column within the system's user interface. The 'Mode' column shows the operational mode of the appliance, which can include states such as 'Primary', 'Secondary', or 'Standby'. The primary appliance is the one that is actively servicing workloads and managing operations within the PowerStore cluster1.

The 'Service Tag' column represents the unique identifier for each physical appliance, the 'Model' column indicates the specific model of the appliance, and the 'IP Address' column shows the network address assigned to the appliance. While these columns provide important information, they do not indicate the role of the appliance within the cluster.

For more detailed information on identifying the primary appliance and understanding the role of each appliance in a PowerStore cluster, users can refer to the Dell PowerStore Clustering and High Availability documentation1. This documentation provides insights into the clustering architecture of PowerStore and how the primary appliance is determined during the initial configuration process.

Heat dissipation in Dell EMC PowerStore systems is typically related to the power and cooling requirements of the system, which are influenced by the system's configuration and components. Generally, lower model numbered systems, which have less processing power and storage capacity, will have lower heat dissipation specifications compared to higher model numbered systems that are more powerful and have greater storage capacity1.

The heat dissipation specification is an important factor in data center planning as it affects the environmental control requirements such as cooling and airflow. When planning for the installation of PowerStore systems, it is crucial to consider the heat output of the systems to ensure that the data center environment can maintain the optimal temperature for reliable operation.

For detailed specifications on heat dissipation for specific PowerStore models, one should refer to the official Dell EMC PowerStore Spec Sheets, which provide comprehensive information on the electrical and thermal characteristics of each model1. These documents are essential for understanding the power consumption and cooling requirements of PowerStore systems. Following the guidelines provided in these documents helps ensure that the systems are deployed in an environment that can support their thermal management needs.

The Pre-Upgrade Health Check (PUHC) results for a Dell EMC PowerStore system can be viewed in the details of Appliances and Nodes within the PowerStore Manager (UI). The PUHC is designed to validate the health of the cluster before a software upgrade and is more thorough than the continuous background checks performed by the alert mechanism of PowerStore1.

To view the PUHC health check results, follow these steps:

Log in to the PowerStore Manager using a supported web browser.

Navigate to the 'Settings' menu and select 'Upgrades'.

Within the 'Upgrades' section, you can view the status and results of the PUHC.

Click on the details of a specific appliance or node to see the health check results, including any warnings or actions required.

It is important to address any issues highlighted by the PUHC before proceeding with a software upgrade to ensure a successful update process. For more detailed instructions on running and interpreting the PUHC, refer to the Dell Support Knowledge Base Article1. This resource provides comprehensive guidance on using the PUHC and System Checks to prepare for a Non-Disruptive Upgrade (NDU).

A data collection in Dell EMC PowerStore Manager can be initiated from the cluster, appliance, and alerts sections within the PowerStore Manager user interface. This process is essential for gathering system logs and other information that can be used for troubleshooting or analysis.

To initiate a data collection, follow these steps:

Log into the PowerStore Manager user interface.

Navigate to the 'Settings' menu.

Go to the 'Support' section.

Select 'Gather Support Materials'.

Choose the scope of the data collection, which can be at the cluster level, for a specific appliance, or related to certain alerts.

Click the 'Gather Support Materials' button to start the collection process.

Monitor the progress in the 'Jobs' section of PowerStore Manager or within the 'Support Materials' section1.

It is important to note that the data collection process may take some time to complete, depending on the amount of data and the system's performance. Once the data collection is finished, the gathered materials can be used by Dell EMC support for further analysis or can be reviewed by the storage administrator to address any issues1. For more detailed instructions on data collection, refer to the Dell EMC PowerStore documentation or the support knowledge base articles provided by Dell23. Following these guidelines ensures that the data is collected correctly and efficiently.

This command is used to inject a temporary root access key into the Dell EMC Data Domain system, allowing the storage administrator to have root access to perform the necessary tasks.

Based on the documentation and available commands for storage administrators, this is the appropriate command for the described scenario.

The Dell EMC PowerStore base enclosure contains two nodes. These nodes are configured in an Active-Standby mode to ensure high availability and load balancing1. Each node is 1U in size and stacks vertically within the base enclosure, with the top node inverted to fit within the compact design. This configuration allows for one node to be actively handling workloads while the other stands by ready to take over in case of a failure or maintenance event, ensuring continuous operation and data accessibility1.

For more detailed information on the node configuration within the PowerStore base enclosure, administrators can refer to the Dell PowerStore Introduction to the Platform documentation, which provides insights into the system's architecture and design considerations1. It is important to understand the node roles and configurations to effectively manage and maintain the PowerStore system.

For a Dell EMC PowerStore X implementation, a minimum of six IP addresses are required for the storage network. This is to accommodate the various components that need network connectivity within the PowerStore infrastructure1.

The allocation of these IP addresses typically includes:

* Two IP addresses for the storage processors or nodes within the PowerStore appliance.

* Two IP addresses for the management interfaces.

* Two additional IP addresses for redundancy or other network services.

It's important to plan the network configuration carefully to ensure that there are enough IP addresses available for all required services and for future expansion. For optimization and best practices in IP address allocation, administrators should refer to the Dell EMC PowerStore Networking Guide for Storage Services2. This guide provides detailed information on network requirements, including IP address allocation and network design considerations for PowerStore systems.
