DRAG DROP

Drag and drop the features about multicast from the left onto the multicast protocols on the right. Not all options ate used.

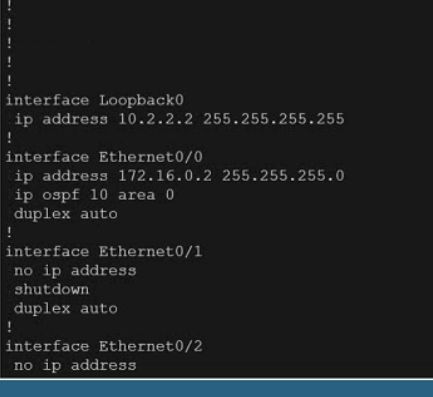

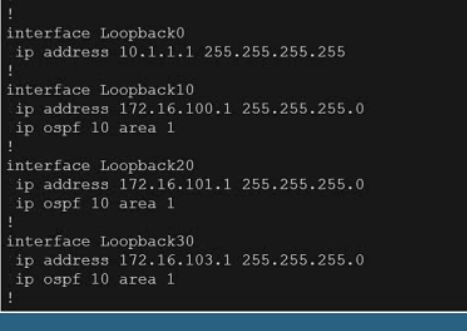

Refer to the exhibit.

Refer to the exhibit. Users at the branch office on R1 reported issue with an application at the home office on R4. While troubleshooting the issue, a network engineer determined that

The branch-office users can connect to the home office.

The IS-IS adjacencies between R1 and R2 and R1 and the branch office are up.

Traffic from R1 to the R2 10.20.1.0/24 network is moving normally.

The application at the home office is experiencing packet drops on the connection to the Branch, and R3 cannot reach the R1 172.16.10.0/24 network.

Which action resolves the issues?

Refer to the exhibit.

Refer to the exhibit. After a recent network implementation project, customer A is performing stress testing to verify network redundancy at the branch office connected to R4. When the link from R2 is shut own as shown, the SLA tracking object fails and the cost of the link between R2 and R4 increases to 100. However, a traceroute operation from a PC in the Branch office shows that traffic to HQ is still routed via R2. Which solution corrects the problem and optimizes traffic flow via R3 without creating operational overhead?

Refer to the exhibit.

Refer to the exhibit. An engineer is troubleshooting an issue with traffic steering using the color-only automated steering mechanism. BGP is failing to automatically steer traffic into an SR policy with the given color of a route, regardless of the next hop. The layer 2 configuration is correct, and the physical connection between the devices is working normally. Whch additional command sequence must the engineer add to correct the issue?

Refer to the exhibit.

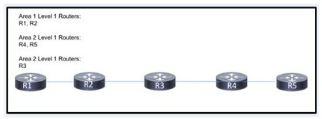

Refer to the exhibit. This network is deployed with all connected links configured to run IS-IS. The routing protocol is enacted globally on each router, and the network engineer expects full routing Information to be shared among all routers. R5 is receiving routes from R4 but is missing routes from R1. Which action corrects the issue so that all routes are shared among the routers?

Refer to the exhibit.

Refer to the exhibit. An engineer working for a private telecommunication company with an employee id: 4233:46:364 notices that the customer network going through AS30-AS65001-AS65000 is experiencing packet drops when it accesses an application at 172.16.20.1/32 In the DC cloud. The BGP link between AS20 and AS30 is inaccessible because of a fiber cut. Routers RL, RN, and RZ are configured with confederation identifier 10. Which action resolves this Issue?

Which type of BGP attribute does a route reflector attach to routes learned from iBGP peers that allows them to be accepted by other iBGP peers, thereby eliminating the need for a full-mesh BGP topology?

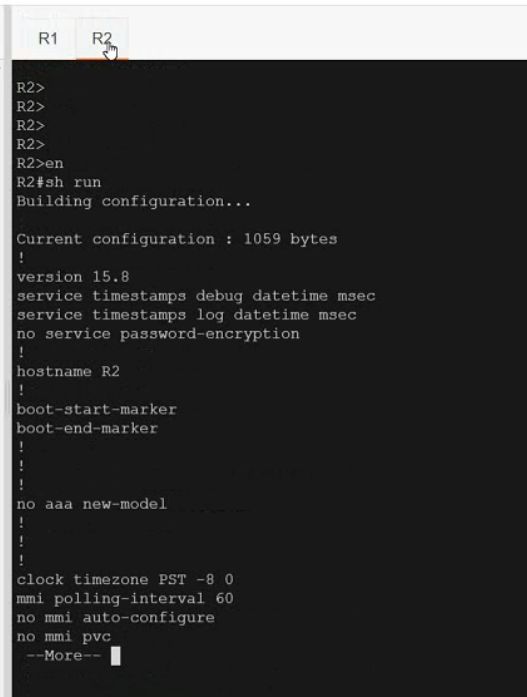

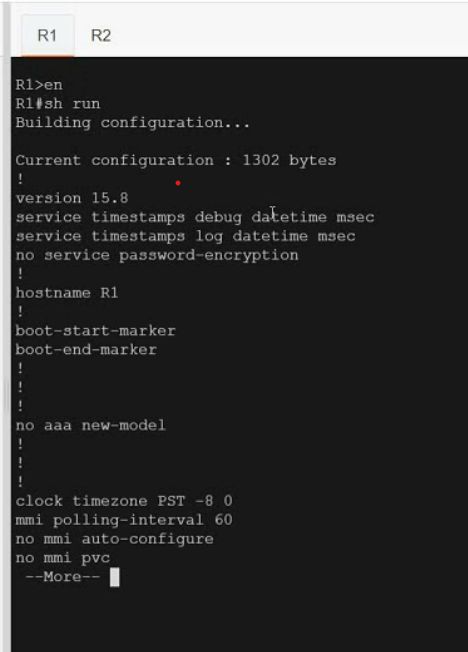

Refer to the exhibit.
