When the GVRP registration mode is FORBIDDEN, no VLAN can be created or registered on the interface. In addition, which VLANs are deregistered on the interface?
A.
All VLANs except VLAN 1
B.
All VLANs except VLAN 4095
C.
All VLANs
D.
All VLANs except the VLAN specified by the user
Which statement about the VLAN on a Layer 2 switch is true?
A.
The CFI in the VLAN tag specifies whether the priority in the VLAN tag is valid.
B.
The VLAN tag is located in the Layer 2 header of a packet.
C.
The CFI in the VLAN tag contains two bits.
D.
A VLAN on the switch is a broadcast domain. The broadcast domains are separated.
Which statement about VLAN mapping is false?
A.
VLAN mapping is also called VLAN translation.
B.
VLAN mapping can implement translation between C-VLAN IDs and S-VLAN IDs.
C.
VLAN mapping can be configured.
D.
VLAN mapping means that a VLAN tag is added to packets.
Which are the port roles defined in STP?
A.
Root Port
B.
Designated Port
C.
Alternate Port
D.
All of the above
Which VLAN assignment methods are supported by the Huawei S9300? (Choose three.)
A.
Assigning VLANs based on Layer 7 protocols
B.
Assigning VLANs based on protocols
C.
Assigning VLANs based on IP subnets
D.
Assigning VLANs based on MAC addresses
Which statement about MUX VLAN is false?
A.
Principal VLAN
B.
Subordinate VLAN
C.
Subordinate group VLAN
D.
Guest VLAN
Which is contained in the GVRP VLAN deregistration message?
A.
Specified VLAN ID
B.
Specified IP address
C.
Specified MAC address
D.
Known port number
Which statements are true? (Choose three.)
A.
The sub-VLANs are configured in the super VLAN view.
B.
VLANs 1 to 4094 can be configured as a super VLAN.
C.
The aggregate-vlan command is used to configure the super VLAN.
D.
A VLAN to be configured as a super VLAN cannot contain any interface.

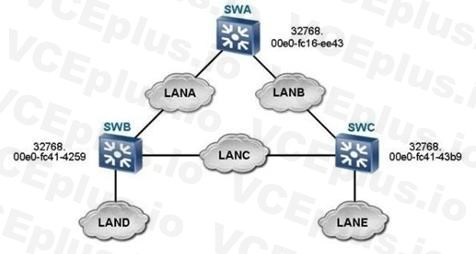

On the STP network as shown in the figure, which device may be the blocked port belong to?
A.
SWA
B.
SWB
C.
SWC
D.
None of the above
