Huawei H12-224 Practice Test - Questions Answers, Page 7

Add to Whishlist

List of questions

Question 61

Report Export Collapse

Which of the following statements about STP Designated Port is true?

Each of the bridge can have one Designated Port only.
Each of the bridge can have one Designated Port only.
Designated Port is responsible for forwarding packets to its connected network segments.
Designated Port is responsible for forwarding packets to its connected network segments.
The only path leading to the Root Bridge is through Designated Port.
The only path leading to the Root Bridge is through Designated Port.
Designated Port forwards the data packet from its corresponding switch to the Root Switch.
Designated Port forwards the data packet from its corresponding switch to the Root Switch.
Suggested answer: B
asked 18/09/2024
Carlos Castro
37 questions

Question 62

Report Export Collapse

When configuring VLAN mapping, you must set the priority of outer VLAN ID.

True
True
False
False
Suggested answer: B
asked 18/09/2024
Cintron, Rigoberto
44 questions

Question 63

Report Export Collapse

Which are the two parts in the port identifier of the uplink interface on a non-root switch?

1-bit port priority and 1-bit port number
1-bit port priority and 1-bit port number
1-bit port priority and 2-bit port number
1-bit port priority and 2-bit port number
2-bit port priority and 1-bit port number
2-bit port priority and 1-bit port number
2-bit port priority and 2-bit port number
2-bit port priority and 2-bit port number
Suggested answer: A
asked 18/09/2024
Keith Barker
34 questions

Question 64

Report Export Collapse

Before configuring 802.1x services, you need to determine the configuration roadmap and prepare data.

Which are general steps in the configuration roadmap? (Choose three.)

Configure a Tftp server.
Configure a Tftp server.
Configure an AAA authentication template.
Configure an AAA authentication template.
Configure a domain.
Configure a domain.
Configure 802.1x authentication.
Configure 802.1x authentication.
Suggested answer: B, C, D
asked 18/09/2024
Nicklas Magnusson
44 questions

Question 65

Report Export Collapse

Which statement is false?

The switch supports 1:1 VLAN mapping.
The switch supports 1:1 VLAN mapping.
The switch does not support N:1 VLAN mapping on an interface.
The switch does not support N:1 VLAN mapping on an interface.
The switch can perform VLAN mapping for double-tagged packets.
The switch can perform VLAN mapping for double-tagged packets.
The switch can map the outer VLAN ID of packets to another VLAN ID.
The switch can map the outer VLAN ID of packets to another VLAN ID.
Suggested answer: B
asked 18/09/2024
Przemysław Doczkal
50 questions

Question 66

Report Export Collapse

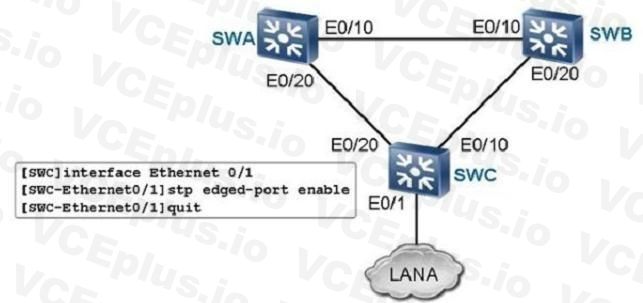

On the RSTP network as shown in the figure, what is the port role of SWC E0/1 according to the configuration? (Choose two.)

Huawei H12-224 image Question 66 31285 09182024192138000000

Designated port
Designated port
Root port
Root port
Alternate port
Alternate port
Edge port
Edge port
Suggested answer: A, D
asked 18/09/2024
Nagaretnam, Ravin
45 questions

Question 67

Report Export Collapse

GARP involves various messages. Besides JoinIn message and Leave message, which are also the GARP messages? (Choose three.)

Notice
Notice
Empty
Empty
JoinEmpty
JoinEmpty
LeaveAll
LeaveAll
Suggested answer: B, C, D
asked 18/09/2024
Tiziano Riezzo
55 questions

Question 68

Report Export Collapse

On an STP network, before the interface status transits from non-forwarding to forwarding, how many Forward Delay intervals does the interface wait for?

2
2
3
3
4
4
5
5
Suggested answer: A
asked 18/09/2024
Anthony Zaborski
54 questions

Question 69

Report Export Collapse

The dot1x command is used to enable 802.1x authentication globally or on an interface. Which statements about the undo dot1x command are true? (Choose three.)

It is used to disable 802.1x authentication globally.
It is used to disable 802.1x authentication globally.
It will disconnect online users from the interface; therefore, use the command with caution.
It will disconnect online users from the interface; therefore, use the command with caution.
It is used to disable 802.1x authentication on an interface.
It is used to disable 802.1x authentication on an interface.
Ensure that there are no online users before you run the undo dot1x command. Otherwise, running the undo dot1x command fails.
Ensure that there are no online users before you run the undo dot1x command. Otherwise, running the undo dot1x command fails.
Suggested answer: A, C, D
asked 18/09/2024
Franco Santos
46 questions

Question 70

Report Export Collapse

Which is the port state defined in RSTP?

Discarding
Discarding
Learning
Learning
Forwarding
Forwarding
All of the above
All of the above
Suggested answer: D
asked 18/09/2024
Ella Parkum
44 questions
