Which of the following AS-paths can be matched by the AS-Path filter configured using the ip as-path-filter 1 permit ^12.*74$ command?
Which of the following command outputs indicates that a loop has occurred on a switch?
The default SSM group address range is 232.0.0.0/8. Which of the following configurations can be performed to modify the SSM group address range?
In the aggregate ipv4-address {mask | mask-length} [as-set | attribute-policy route-policy-name1 | detail-suppressed | origin-policy route-policy-name2 | suppress-policy route-policy-name3] command, multiple parameters can be used to affect the BGP summarized route and summarization result. Which of the following statements regarding this command are true?
For Huawei S series switches, to control which member switch becomes the master switch of a stack, first power on the switch you wish to be the master switch, and then wait 20 seconds before powering on the other member switches.
Which of the following statements regarding the packet processing method in the MPLS network model are false?
Which of the following statements is true according to the topology shown?
OSPF has been configured on R1 as shown above, but R1 does not learn the routes from any other routers, which of the following are possible causes? (Choose all that apply.)
To reduce the amount of OSPF data and routing information in some areas, OSPF has special area types. Which of the following statements regarding OSPF special areas is true?
The output of the display in vpn-instance verbose command for displaying detailed information about all VPN instances on a network device is as follows. Which of the following statements are false?

Question 91

Report
Export
Collapse

Which of the following statements regarding IS-IS LSP fragment extension is true?

A.
LSP fragment extension enables an IS-IS router to generate multiple LSP fragments to carry more IS-IS information.
A.
LSP fragment extension enables an IS-IS router to generate multiple LSP fragments to carry more IS-IS information.
Answers
B.
An IS-IS router can generate a maximum of 1024 LSP fragments.
B.
An IS-IS router can generate a maximum of 1024 LSP fragments.
Answers
C.
LSP fragment extension is implemented by adding virtual systems, with a maximum of 1000 virtual systems supported.
C.
LSP fragment extension is implemented by adding virtual systems, with a maximum of 1000 virtual systems supported.
Answers
D.
LSP fragment extension is also valid for Hello PDUs.
D.
LSP fragment extension is also valid for Hello PDUs.
Answers
Suggested answer: A

Question 92

Report
Export
Collapse

Which of the following statements regarding IS-IS route summarization is true?

A.
Route summarization can be configured and takes effect on all types of routers.
A.
Route summarization can be configured and takes effect on all types of routers.
Answers
B.
Route summarization takes effect only on Level-2 routers.
B.
Route summarization takes effect only on Level-2 routers.
Answers
C.
Route summarization takes effect only on Level-1 routers.
C.
Route summarization takes effect only on Level-1 routers.
Answers
D.
Route summarization takes effect only on Level-1-2 routers.
D.
Route summarization takes effect only on Level-1-2 routers.
Answers
Suggested answer: A

Explanation:

Reference: https://support.huawei.com/enterprise/en/doc/EDOC1100069334/8552081d/configuring-is-is-route-summarization

Question 93

Report
Export
Collapse

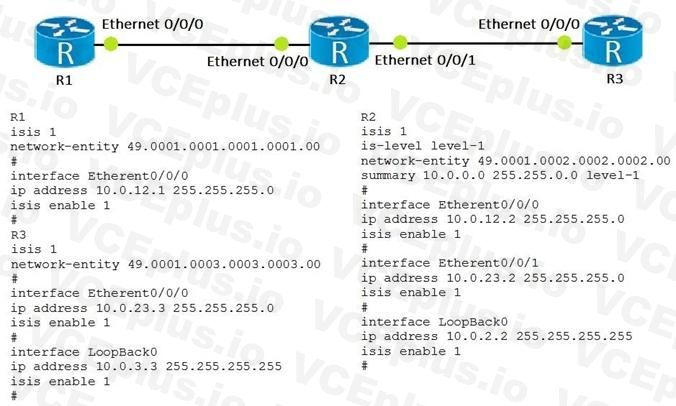

Which of the following statements is true according to the topology shown?

A.
Routing entries 10.0.3.3/32 and 10.0.0.0/16 exist in the IP routing table of R1.
A.
Routing entries 10.0.3.3/32 and 10.0.0.0/16 exist in the IP routing table of R1.
Answers
B.
Routing entries 10.0.2.2/32 and 10.0.3.3/32 exist in the IP routing table of R1.
B.
Routing entries 10.0.2.2/32 and 10.0.3.3/32 exist in the IP routing table of R1.
Answers
C.
Because routing summarization is configured on R2, only the routing entry 10.0.0.0/16 exists in the IP routing table of R1.
C.
Because routing summarization is configured on R2, only the routing entry 10.0.0.0/16 exists in the IP routing table of R1.
Answers
D.
Routing entries 10.0.2.2/16 and 10.0.0.0/16 exist in the IP routing table of R1.
D.
Routing entries 10.0.2.2/16 and 10.0.0.0/16 exist in the IP routing table of R1.
Answers
Suggested answer: C

Question 94

Report
Export
Collapse

Which of the following statements regarding BGP attributes is true?

A.
A route can have only one value for the Community attribute.
A.
A route can have only one value for the Community attribute.
Answers
B.
The number of the neighboring AS is displayed to the right of the AS_path list of a BGP routing entry.
B.
The number of the neighboring AS is displayed to the right of the AS_path list of a BGP routing entry.
Answers
C.
The Local_Pref attribute is exchanged only between EBGP peers and is not advertised other Ass.
C.
The Local_Pref attribute is exchanged only between EBGP peers and is not advertised other Ass.
Answers
D.
When advertising a route learned from an EBGP peer to an IBGP peer, the BGP speaker does not change the Next_Hop attribute of the route.
D.
When advertising a route learned from an EBGP peer to an IBGP peer, the BGP speaker does not change the Next_Hop attribute of the route.
Answers
Suggested answer: D

Question 95

Report
Export
Collapse

Many transition technologies have been adopted to replace IPv4 addresses on networks with IPv6 addresses. These technologies are categorized into IPv4/IPv6 coexistence technologies and IPv4/IPv6 interoperability technologies. Which of the following technologies are considered to be IPv4/IPv6 coexistence technologies?

A.
NAT64
A.
NAT64
Answers
B.
ISATAP
B.
ISATAP
Answers
C.
IPv6 over IPv4
C.
IPv6 over IPv4
Answers
D.
Dual Stack
D.
Dual Stack
Answers
Suggested answer: D

Question 96

Report
Export
Collapse

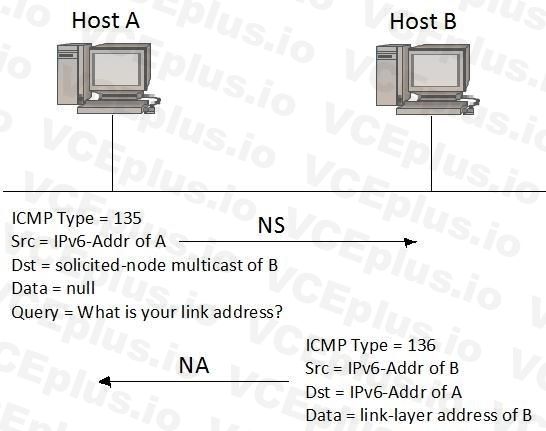

Does the following figure correctly show the process of obtaining the link-layer address using NDP?

A.
TRUE
A.
TRUE
Answers
B.
FALSE
B.
FALSE
Answers
Suggested answer: A

Question 97

Report
Export
Collapse

You are assigned the task of compressing an IPv6 address as much as possible. If the original IPv6 address is 2013:0000:130F:0000:0000:09C0:876A:130B, which of the following is the IPv6 address in its compressed format?

A.
213::13F::9C0:876A:13B
A.
213::13F::9C0:876A:13B
Answers
B.
2013::130F::09C0:876A:130B
B.
2013::130F::09C0:876A:130B
Answers
C.
2013:130F:0:0:9C0:876A:130B
C.
2013:130F:0:0:9C0:876A:130B
Answers
D.
2013:0:130F:0:0:09C0:876A:130B
D.
2013:0:130F:0:0:09C0:876A:130B
Answers
E.
2013:0:130F::09C0:876A:130B
E.
2013:0:130F::09C0:876A:130B
Answers
Suggested answer: E

Question 98

Report
Export
Collapse

Which of the following statements regarding the packet processing method in the MPLS network model are false?

A.
The device discards IP packets that enter the MPLS domain.
A.
The device discards IP packets that enter the MPLS domain.
Answers
B.
An LSR does not remove any label.
B.
An LSR does not remove any label.
Answers
C.
A Label Switched Path (LSP) is determined and established through various protocols during the packet forwarding process.
C.
A Label Switched Path (LSP) is determined and established through various protocols during the packet forwarding process.
Answers
D.
Both LERs and LSRs distribute labels.
D.
Both LERs and LSRs distribute labels.
Answers
Suggested answer: A

Question 99

Report
Export
Collapse

On an intra-AS MPLS BGP VPN, data packets are encapsulated with two MPLS labels before being sent to the public network. Which of the following statements regarding the labels is false?

A.
By default, a router assigns the same label value to all VPNv4 routes destined for the remote PE.
A.
By default, a router assigns the same label value to all VPNv4 routes destined for the remote PE.
Answers
B.
The egress PE uses the inner label to determine the egress CE which packets are sent.
B.
The egress PE uses the inner label to determine the egress CE which packets are sent.
Answers
C.
Two labels are used on an MPLS BGP VPN: public network label (outer label) and VPN label (inner label).
C.
Two labels are used on an MPLS BGP VPN: public network label (outer label) and VPN label (inner label).
Answers
D.
VPN labels are distributed by MP-BGP when routing information is transmitted. Public network labels are distributed by LDP.
D.
VPN labels are distributed by MP-BGP when routing information is transmitted. Public network labels are distributed by LDP.
Answers
Suggested answer: A

Question 100

Report
Export
Collapse

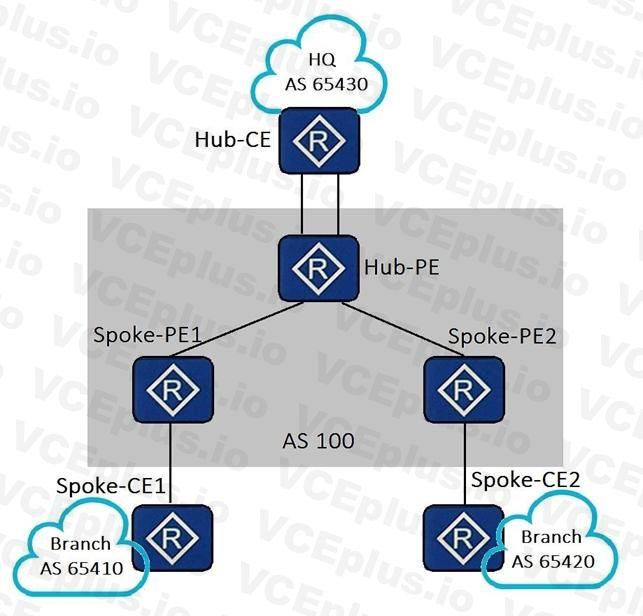

As shown in the figure below, an enterprise wants to implement secure access between the headquarters and branches through MPLS VPN. VPN traffic of branches must be forwarded through the headquarters for traffic monitoring. Which of the following statements regarding this solution is false?

A.
When the Hub-CE and Hub-PE use EBGP to transmit routing information, the Hub-PE must be able to accept routes with the AS number repeated once so that routes advertised by the Hub-CE can be received.
A.
When the Hub-CE and Hub-PE use EBGP to transmit routing information, the Hub-PE must be able to accept routes with the AS number repeated once so that routes advertised by the Hub-CE can be received.
Answers
B.
OSPF can be used to exchange routing information between Hub-CEs and Hub-Pes as well as between Spoke-Pes and Spoke-CEs.
B.
OSPF can be used to exchange routing information between Hub-CEs and Hub-Pes as well as between Spoke-Pes and Spoke-CEs.
Answers
C.
BGP can be used to exchange VPN routing information between CEs and Pes.
C.
BGP can be used to exchange VPN routing information between CEs and Pes.
Answers
D.
The MP-IBGP peer relationship can be established between Spoke-Pes to exchange VPN routing information.
D.
The MP-IBGP peer relationship can be established between Spoke-Pes to exchange VPN routing information.
Answers
Suggested answer: A
