Huawei H12-261 Practice Test - Questions Answers

List of questions

Question 1

Report Export Collapse

Router HW1 is seeing a large number of Discard Eligible (DE) frames. In Frame-relay, as part of the Congestion-Control Mechanism, the DE bit works in conjunction with which of the following mechanisms?

Differentiated Services Code Point (DSCP) settings
Differentiated Services Code Point (DSCP) settings
Frame-relay Traffic Shaping (FRTS) settings
Frame-relay Traffic Shaping (FRTS) settings
Class-to-Service (CoS) settings
Class-to-Service (CoS) settings
Type-of-service (ToS) settings
Type-of-service (ToS) settings
Forward Explicit Congestion Notification (FECN) of Backward Explicit Congestion Notification (BECN) settings
Forward Explicit Congestion Notification (FECN) of Backward Explicit Congestion Notification (BECN) settings
Suggested answer: E
asked 18/09/2024
Hiren Patel
35 questions

Question 2

Report Export Collapse

Which parameter will not be received from the root bridge by a non-root bridge running 802.1D STP?

Forward delay
Forward delay
Hello time
Hello time
Root cost
Root cost
Hold time
Hold time
Max Age
Max Age
Suggested answer: D
asked 18/09/2024
Ilia Voronkov
41 questions

Question 3

Report Export Collapse

Which of the following are used in Ethernet networks? (Multiple Choice)

802.5 encapsulated frames
802.5 encapsulated frames
802.3 encapsulated frames
802.3 encapsulated frames
CSMA/CD for media access
CSMA/CD for media access
Non Canonical format MAC addresses
Non Canonical format MAC addresses
Canonical format MAC addresses
Canonical format MAC addresses
Suggested answer: B, C, E
asked 18/09/2024
Louis Perriot
42 questions

Question 4

Report Export Collapse

Which of the following statements is true about the port mirroring on Huawei devices?

Huawei devices support port mirroring on the control traffic sent to the CPU
Huawei devices support port mirroring on the control traffic sent to the CPU
Huawei devices support flow-based port mirroring. The mirrored traffic can be copied onto multiple observing ports
Huawei devices support flow-based port mirroring. The mirrored traffic can be copied onto multiple observing ports
Traffic in the RSPAN is transmitted to observing ports in multicast mode
Traffic in the RSPAN is transmitted to observing ports in multicast mode
When the observing port becomes congested, mirrored packets cannot be discarded because these packets have higher priority than service traffic
When the observing port becomes congested, mirrored packets cannot be discarded because these packets have higher priority than service traffic
Suggested answer: A
asked 18/09/2024
Dawn Silva
27 questions

Question 5

Report Export Collapse

If a Gigabit Ethernet port receive buffer becomes full on a LAN switch, what protocol can be used to request that the remote port delay sending frames for a specified time?

802.3AF
802.3AF
802.1D
802.1D
802.3
802.3
802.3X
802.3X
802.1U
802.1U
Suggested answer: D
asked 18/09/2024
Mehr Khan
37 questions

Question 6

Report Export Collapse

When receives or transmits data frames on an access port, what will the switch do?

Switch will send tagged frames belong to a specified vlan
Switch will send tagged frames belong to a specified vlan
When received a tagged frame from an access port. Switch may forward it vlan
When received a tagged frame from an access port. Switch may forward it vlan
Switch will learn the MAC-address only on access port
Switch will learn the MAC-address only on access port
Switch only receives untagged frames from access port and drop all tagged frames
Switch only receives untagged frames from access port and drop all tagged frames
Suggested answer: A
asked 18/09/2024
Juan Contreras
36 questions

Question 7

Report Export Collapse

Spanning Tree Protocol calculates path cost based on which of the following?

Interface bandwidth
Interface bandwidth
Interface delay
Interface delay
Hop count
Hop count
Interface bandwidth and delay
Interface bandwidth and delay
Bridge priority
Bridge priority
Suggested answer: A
asked 18/09/2024
Christina Lanaski
38 questions

Question 8

Report Export Collapse

On router HW1, you want to view the status of a frame relay connection. Which "display" commands will show the status of a Frame-Relay PVC? (Multiple choice)

display frame relay interface
display frame relay interface
display frame relay pvc
display frame relay pvc
display fr lmi-info
display fr lmi-info
display fr map-info interface Serial 0/0/0
display fr map-info interface Serial 0/0/0
display fr interface Serial 0/0/0
display fr interface Serial 0/0/0
display fr inarp-info
display fr inarp-info
Suggested answer: D, E
asked 18/09/2024
Rumen Zazyov
33 questions

Question 9

Report Export Collapse

HW has a Frame Relay network with two sites (a headquarters site and a remote site) connected by a single PVC. RIP version 2 is running in the network. A new remote site is added and HW has ordered a second PVC between this site and the headquarters site. All Frame Relay interface IP addresses are in a single subnet. The customer configured Frame Relay DLCI mappings and can successfully ping from the new remote to the headquarters site as well as to the other remote site. However, the new router does not have a route in its route table to the other remote site's LAN, and cannot ping the LAN interface or any hosts on that LAN. What is most likely causing the problem?

Triggered updates should be configured on the headquarters router, to directly forward routing updates between the two remote sites
Triggered updates should be configured on the headquarters router, to directly forward routing updates between the two remote sites
The headquarters site router has split-horizon enabled on the frame-relay interface
The headquarters site router has split-horizon enabled on the frame-relay interface
Neighbor statements are not configured on the two remote sites, pointing to all other sites
Neighbor statements are not configured on the two remote sites, pointing to all other sites
The frame-relay IP to DLCI mappings are incorrectly configured
The frame-relay IP to DLCI mappings are incorrectly configured
RIP cannot propagate routing updates over a partial mesh frame-relay configuration, so another routing protocol should be selected
RIP cannot propagate routing updates over a partial mesh frame-relay configuration, so another routing protocol should be selected
Suggested answer: B
asked 18/09/2024
Maija Janite
38 questions

Question 10

Report Export Collapse

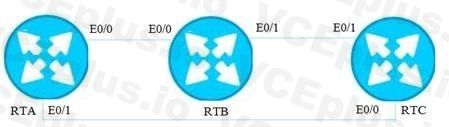

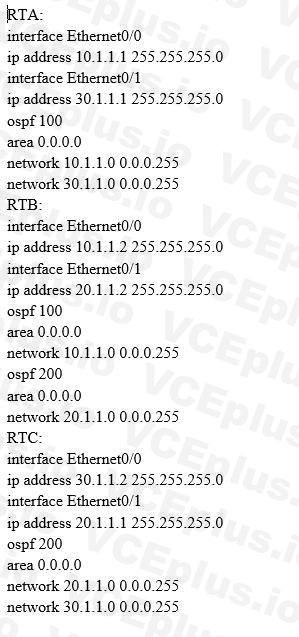

Huawei H12-261 image Question 10 32032 09182024192157000000

Based on the preceding networking and configurations, which of the following statements is true?

Huawei H12-261 image Question 10 32032 09182024192157000000

Route flapping occurs
Route flapping occurs
RTB and RTC cannot establish a neighbor relationship
RTB and RTC cannot establish a neighbor relationship
RTA and RTB cannot establish a neighbor relationship
RTA and RTB cannot establish a neighbor relationship
A neighbor relationship can be established; all network segments are reachable
A neighbor relationship can be established; all network segments are reachable
Suggested answer: D
asked 18/09/2024
Daniel Melendez
49 questions
Total 298 questions
