Question 71

(0)

The figure shows router data. Which of the following statements is false?

Question 72

(0)

Which of the following configurations regarding OSPFv3 route aggregation are true?

Question 73

(0)

On a Huawei device, when an external route is imported to IS-IS and the tag of the external route is set, the IS-IS metric type does not need to be changed, and the default style is retained.

Question 74

(0)

As shown in the following topology, EBGP runs between AS100, AS200, AS300, and AS400, and peer relationships have been established between them. When AS400 receives a BGP route to the network segmen

Question 75

(0)

If no area is divided, which of the following statements regarding the link-state routing protocol are true?

Question 76

(0)

A route selection tool can define multiple entries. Which of the following tools will automatically generate a deny-any entry at the end of the configuration?

Question 77

(0)

The figure shows the topology and configuration. Which of the following methods can be used to exclude the specific route 10.0.3.3/32 from the routing table of R1?

Question 78

(0)

If the Option field in the OSPFv3 Hello packet sent from GigabitEthernet0/0/0 of router A is 0x000013, which of the following statements are true?

Question 79

(0)

As shown in the following figure, R1, R2, and R3 run OSPF and advertise their loopback interface addresses into OSPF. Which of the following statements is false?

Question 80

(0)

After IS-IS area authentication is configured, which of the following IS-IS packets will carry authentication information?

Question 71

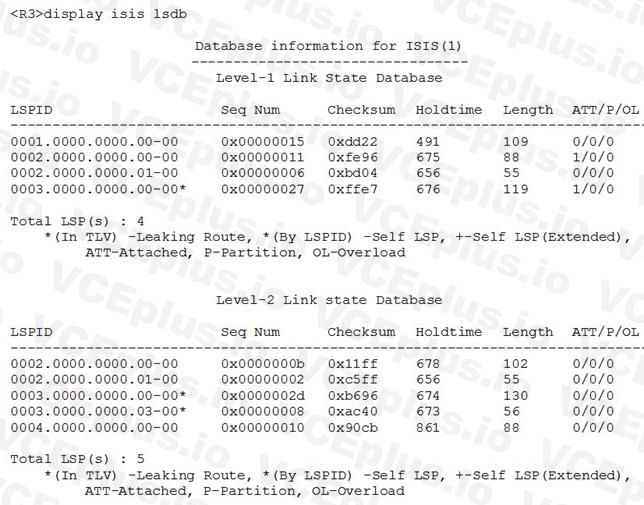

The figure shows router data. Which of the following statements is false?

The system ID of R3 is 0003.0000.0000.

R3 is a level-1-2 router.

R3 is the DIS of a Level-1 link.

R3 is the DIS of a Level-2 link.

Show Answer Comment (0)

Question 72

Which of the following configurations regarding OSPFv3 route aggregation are true?

[Huawei]ospfv3 1[Huawei-ospfv3-1]asbr-summary fc00:0:0:: 48 cost 20 tag 100

[Huawei]ospfv3 1[Huawei-ospfv3-1]abr-summary fc00:0:0:: 48 cost 400

[Huawei]ospfv3 1[Huawei-ospfv3-1]area 1[Huawei-ospfv3-1-area-0.0.0.1]abr-summary fc00:0:0:: 48 cost 400

[Huawei]ospfv3 1[Huawei-ospfv3-1]area 1[Huawei-ospfv3-1-area-0.0.0.1]asbr-summary fc00:0:0:: 48 cost 20 tag 100

[Huawei]interface gigabitethernet 1/0/0[Huawei- Gigabitethernet1/0/0]asbr-summary fc00:0:0:: 48 cost 20

Show Answer Comment (0)

Question 73

On a Huawei device, when an external route is imported to IS-IS and the tag of the external route is set, the IS-IS metric type does not need to be changed, and the default style is retained.

TRUE

FALSE

Show Answer Comment (0)

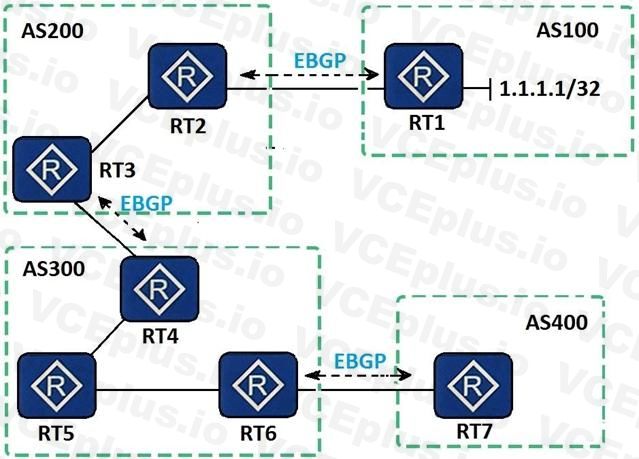

As shown in the following topology, EBGP runs between AS100, AS200, AS300, and AS400, and peer relationships have been established between them. When AS400 receives a BGP route to the network segment 1.1.1.1/32 from AS100, which of the following is the correct value of the AS_Path attribute?

100,200,300,400

300,200,100

400,300,200,100

100,200,300

Show Answer Comment (0)

Question 75

If no area is divided, which of the following statements regarding the link-state routing protocol are true?

Routers in the same routing domain may repeatedly receive the same link state information.

Routers in the entire routing domain have the same LSDB.

Each router establishes a routing domain topology.

Each router learns routing entries from updated routing information and adds them to the routing table.

The router sends all link state information from a neighbor to all other neighbors to ensure data synchronization in the database.

Show Answer Comment (0)

Question 76

A route selection tool can define multiple entries. Which of the following tools will automatically generate a deny-any entry at the end of the configuration?

Route policy

IP-prefix

Community-filter

AS-Path-filter

Show Answer Comment (0)

Question 77

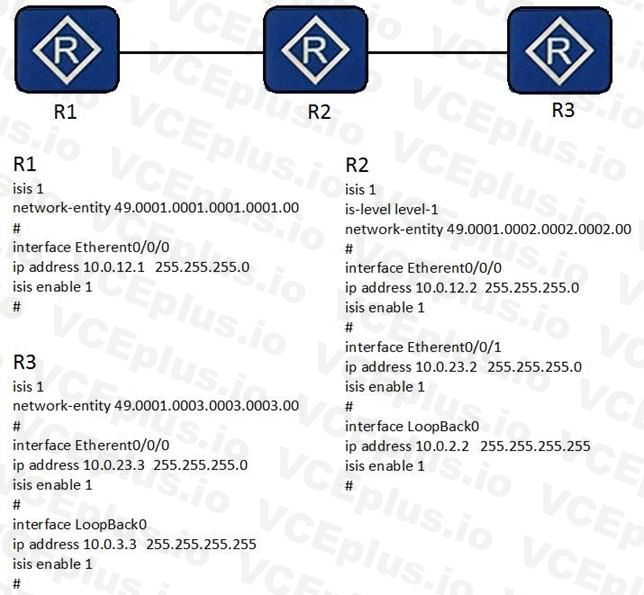

The figure shows the topology and configuration. Which of the following methods can be used to exclude the specific route 10.0.3.3/32 from the routing table of R1?

On R2, configure a filter-policy, use the ACL applied to the filter-policy to match 10.0.3.3/32, and apply the filter-policy to the export direction.

Configure route summarization on R2 and summarize routes as 10.0.0.0/16.

On R1, configure a filter-policy, use the ACL applied to the filter-policy to match 10.0.3.3/32, and apply the filter-policy to the import direction.

Configure route summarization on R3 and summarize routes as 10.0.0.0/16.

Show Answer Comment (0)

Question 78

If the Option field in the OSPFv3 Hello packet sent from GigabitEthernet0/0/0 of router A is 0x000013, which of the following statements are true?

GigabitEthernet0/0/0 of router A belongs to an NSSA.

GigabitEthernet0/0/0 of router A participates in IPv6 route calculation.

Router A supports flooding of AS-external-LSAs.

Router A is an OSPFv3 device enabled with the forwarding capability.

Show Answer Comment (0)

Question 79

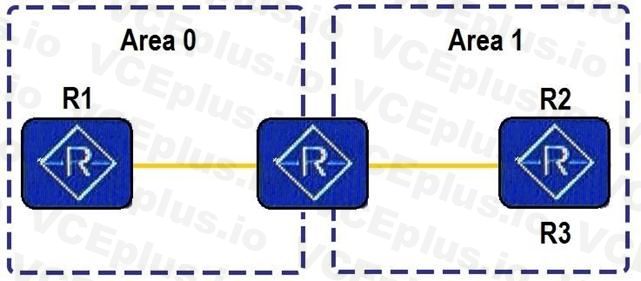

As shown in the following figure, R1, R2, and R3 run OSPF and advertise their loopback interface addresses into OSPF. Which of the following statements is false?
