Huawei H12-831_V1.0 Practice Test - Questions Answers, Page 28

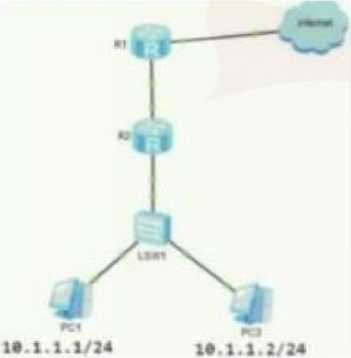

As shown in the figure, configure a backhaul summary route 10.0.0.0/24 on the border route RT1. next hop to RT2. At the same time, the default route to the external network is configured. At this point, a routing black hole will appear. The following is about routing

Is the black hole statement correct? (multiple choice)

esigth uses different colors to distinguish different alarm levels, red represents emergency, orange represents important, and yellow represents

The table is secondary, and blue represents the prompt. Which of the following statements about different alarm levels is correct: (multiple choice)

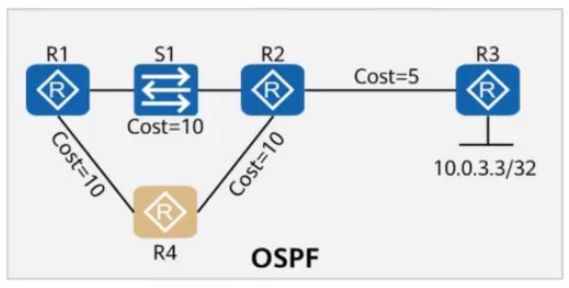

On the OSPF network shown in the figure, the cost values of links are marked, and OSPF IP FRR is enabled on R1. Which of the following statements are true?

On the OSPF network shown in the figure, the cost values of links are marked, and OSPF IP FRR is enabled on R1. Which of the following statements is false?

On a stable network that requires fast route convergence, you can change the value of the interval at which OSPF LSAs are updated to 0 so that topology or route changes can be immediately advertised on the network through LSAs, which speeds up route convergence.

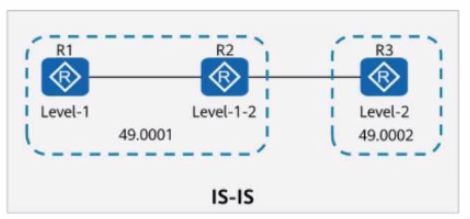

On the ISIS network shown in the figure, R1 imports a default route using the default-route-advertise always level-1 command. In this case, R3 can learn this default route through IS-IS.

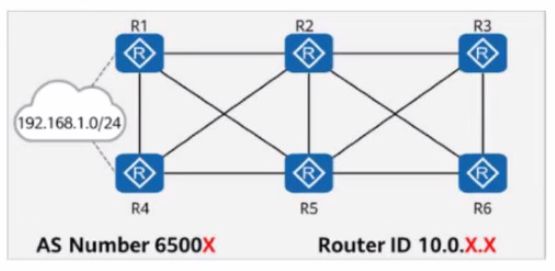

On the network shown in the figure, EBGP peer relationships are established between neighboring routers through directly connected interfaces. The router ID of each router is 10.0.X.X, and the AS number is 6500X, where X is the number of the router. Both Rl and R4 have static routes to 192.168.1.0/24, which are imported to BGP through the import-route command. R3 is configured with the peer y.y.y.y as-path-filter 1 import command for all peers. Which of the following sets of commands enables R3 to select the route with the longest AS_Path to 192.168.1.0/24?

To protect a device against the attacks of forged BGP messages, you can configure GTSM to check whether the TTL value in the IP message header is within the specified range. If the peer x.x.x.x valid-ttl-hops 100 command is configured on a device, the valid TTL value range of the detected message is [155, 255].

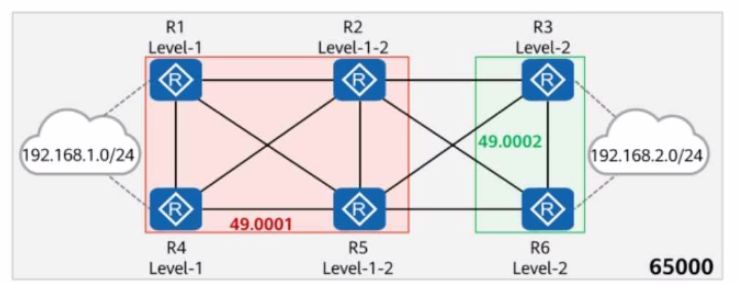

On the network shown in the figure, IS-IS runs on R1, R2, R4, and R5, and the area ID is 49.0001. IS-IS runs on R3 and R6, and the area ID is 49.0002. The import-route isis level-2 into level-1 command is configured on R2 and R5. In AS 65000, R1, R3, R4, and R6 each establish IBGP peer relationships with R2 and R5. R2 and R5 are RRs, and R1, R4, R3, and R6 are clients. The IBGP peer relationships are established using Loopback0. The IP address of Loopback0 on each router is 10.0.X.X/32, and the router ID is 10.0.X.X, where X is the number of the router. R1 and R4 import the external route 192.168.1.0/24 to BGP through the import-route command, and R3 and R6 import the external route 192.168.2.0/24 to BGP through the import-route command. Which of the following statements are true?
