Home / Huawei / H12-891

Huawei H12-891 Practice Test - Questions Answers, Page 40

Question list

List of questions

Question 391

(0)

Router HW enables OSPF and router HW has the role of ABR and is configured with abr-summary, so which class LSA Will it be aggregated?( Multi-select) (confirmed).

Question 392

(0)

As shown in the figure, a company sets up an OSPF network. The links in the figure all form OSPF adjacencies, and all OSFP devices declare their own loopback addresses. One day SIR2 The two links of

Question 393

(0)

The interface Serial0 of an existing router is in OSPF area 1, and the interface Serial0 is set to Silent interface. So what kind of impact will this setting have

Question 394

(0)

The Option field in OSPEv3 appears in all LSAs

Question 395

(0)

As shown in the following topology, EBGP is running between ASI0O0, AS.203, AS.30, AS8400, and the neighbor relationship has been established as RECEIVed by AS4O0 When AS1OO issues a 1..11/2 CIDR se

Question 396

(0)

What kind of scenario can use AS-path-filter?( Multiple select).

Question 397

(0)

In the following topology diagram, R1 can be established between R2 and R3 fetches the Internet, RI and R2, R1 and R3 EGP connections, R2, R3 belong to the same AS The default routes are issued t

Question 398

(0)

The existing router HWl running BGP is configured with both IBGP neighbors and EBGP tenants. The following descriptions about IBGP Neighbors and EBGP Neighbors are correct?

Question 399

(0)

As shown in the figure, in the context of IPv4 and IPv6, the SEL field in the NET address of the ISIS is always valued as 00?

Question 400

(0)

In an IPv6 network, two nodes A and B are neighbors to each other if node A sends to node B NS message, if Node B receives the message and then replies to the NA message, then on Node A On the view,

Question 391

Router HW enables OSPF and router HW has the role of ABR and is configured with abr-summary, so which class LSA Will it be aggregated?( Multi-select) (confirmed).

1 ?LSA

2 ?LSA

3 ?LSA

4 ?LSA

5 ?LSA

Show Answer Comment (0)

As shown in the figure, a company sets up an OSPF network. The links in the figure all form OSPF adjacencies, and all OSFP devices declare their own loopback addresses. One day SIR2 The two links of the S2AR1 suddenly failed, and in order to detect if the network was operating properly, the engineers performed a device status check, which is correct as described below

R5 can normally learn the loopback route to R2

R3 can not learn the loopback route to R2

R1 can normally learn the loopback route

R3 of R2 The loopback route of R2 can be learned normally

Show Answer Comment (0)

Question 393

The interface Serial0 of an existing router is in OSPF area 1, and the interface Serial0 is set to Silent interface. So what kind of impact will this setting have

OSPF establishes available adjacencies through this interface

OSPF does not add routes learned from the interface to the local routing table

OSPF does not establish any neighboring relationships through this interface D. OSPF receives routing updates from neighbors

Show Answer Comment (0)

Question 394

The Option field in OSPEv3 appears in all LSAs

True

False

Show Answer Comment (0)

Question 395

As shown in the following topology, EBGP is running between ASI0O0, AS.203, AS.30, AS8400, and the neighbor relationship has been established as RECEIVed by AS4O0 When AS1OO issues a 1..11/2 CIDR segment BGP route, the path order recorded in the ASPath attribute is correct

10,200,3

400,300,200,100

100,200,300,400

300,200,100

Show Answer Comment (0)

Question 396

What kind of scenario can use AS-path-filter?( Multiple select).

A Filters routes received from BGP neighbors based on the AS PATH attribute carried by the route, such as the command peer X.x.x.x as path-filter import

The apply clause in Route policy

Filter routes sent to BGP neighbors based on the AS PATH attribute that the route carries. For example, the command peer x.x.x.x as path-filter export

The if-match clause in Route-policy

Show Answer Comment (0)

Question 397

In the following topology diagram,

R1 can be established between R2 and R3 fetches the Internet, RI and R2, R1 and R3 EGP connections, R2, R3 belong to the same AS The default routes are issued through BGP separately, requiring R2 to be preferred for traffic accessed by RI to the Internet, and the following practices can be achieved

R1 specifies that peer R3 sets the MED property to 150 in the import direction

R2 specifies that peer R1 is in export The direction setting local priority is 150

R2 specifies peer R1 in the export direction setting MED property to 150

R1 specifies the peer R2 sets the local priority in the import direction to 150

Show Answer Comment (0)

Question 398

The existing router HWl running BGP is configured with both IBGP neighbors and EBGP tenants. The following descriptions about IBGP Neighbors and EBGP Neighbors are correct?

The router will have an EBGP BGP neighbor from it must be connected directly, otherwise, IBGPMulti- hop must be configured

The router sends BGP updates learned from its EBGP neighbors to its other IBGP neighbors and EBGP neighbors

IBGP neighbors can establish neighbor relationships through the Loopback interface

The router sends BGP updates learned from its IBGP neighbors to its other IBGP neighbors and EPGP neighbors

EBGP neighbors must be directly connected, otherwise, EBGP-Multi-hop must be configured with

Show Answer Comment (0)

Question 399

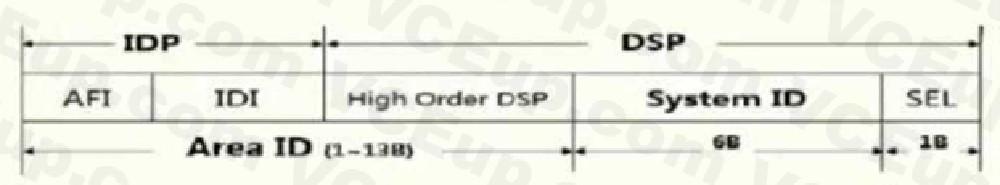

As shown in the figure,

in the context of IPv4 and IPv6, the SEL field in the NET address of the ISIS is always valued as 00?

True

False

Show Answer Comment (0)

Question 400

In an IPv6 network, two nodes A and B are neighbors to each other if node A sends to node B NS message, if Node B receives the message and then replies to the NA message, then on Node A On the view, the neighbor status will be marked as What?

Reachable

Incomplete

Constant

Probe Answer

Show Answer Comment (0)

Total 610 questions
