HP HPE6-A85 Practice Test - Questions Answers, Page 8

In large logistic facilities, to ensure comprehensive monitoring and performance analysis, it's recommended to place a User Experience Insight (UXI) sensor in every aisle. This allows for detailed and specific monitoring of network performance across the extensive coverage area of such facilities.

ClearPass OnGuard is a component of the ClearPass Policy Manager that performs health and security posture checks on devices to ensure they meet the organization's compliance requirements before allowing access to the network. It operates as an agent on client systems to perform these checks.

The route '10.20.0.0/22, vrf default via 10.1.1.1, [110/200]' indicates that it is an OSPF route. This is evidenced by the administrative distance and metric '[110/200]' where 110 is the default administrative distance for OSPF routes.

When a client connects to an Aruba AP in tunnel mode and is assigned to a VLAN based on the client's MAC address, this indicates a Dynamic VLAN assignment. The VLAN is determined dynamically at the time of authentication based on the client's credentials or attributes, such as its MAC address.

The ideal mounting position for a typical Aruba indoor AP is horizontally, below a suspended ceiling. This positioning takes advantage of the AP's antenna radiation pattern and helps provide optimal wireless coverage and performance within the indoor environment.

When a network technician encounters an issue where a new SSID does not allow internet access despite successful connectivity and DNS resolution, they should verify the firewall policies associated with the new SSID. The firewall policies must include rules that permit traffic to and from the internet and should be correctly ordered to ensure that they are applied as intended. Since the existing SSID functions correctly, comparing the firewall rules between the two can be a useful method of troubleshooting.

The 802.1x authentication process begins after the client device completes the 802.11 association with the access point but before the WPA 4-Way Handshake. This is part of the EAP (Extensible Authentication Protocol) process, which authenticates the device before allowing full network access.

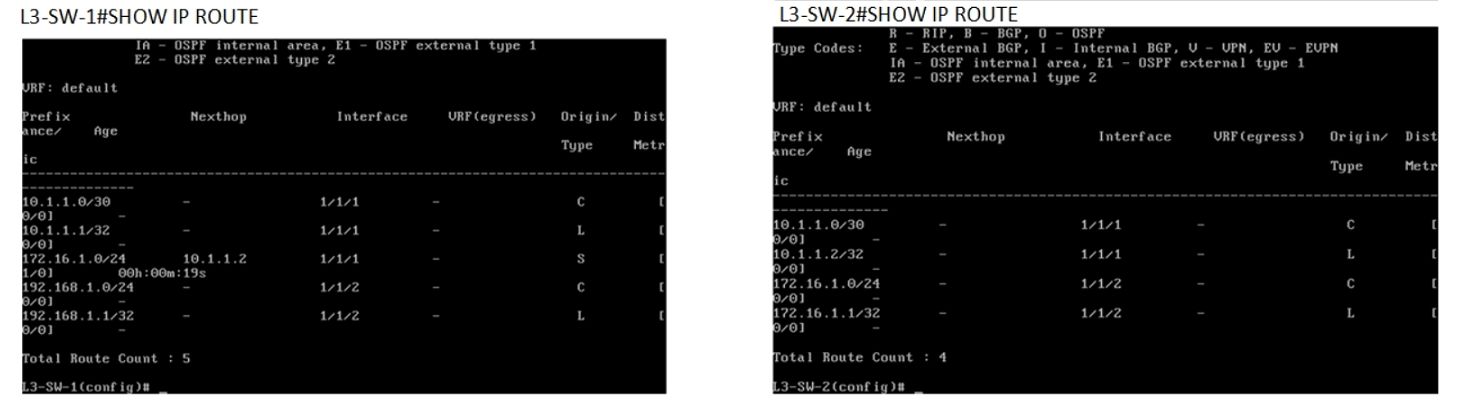

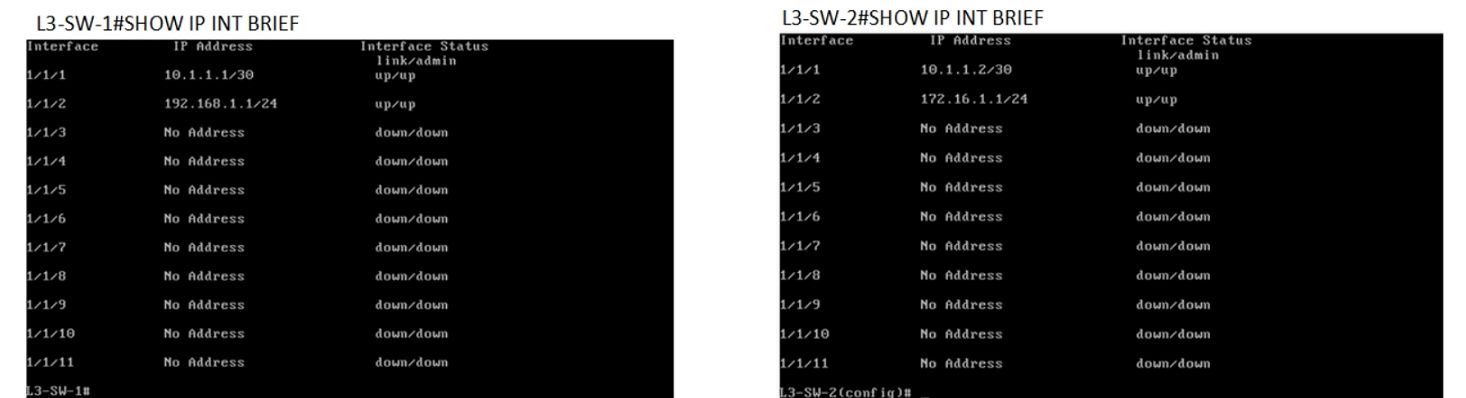

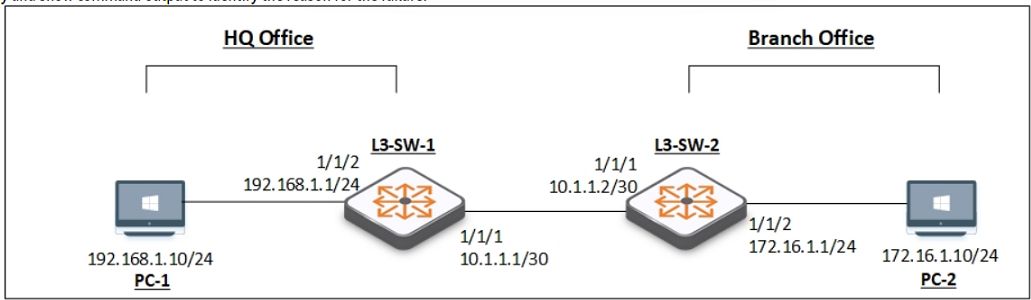

Using the provided topology and show command output, it can be determined that L3-SW-2 in the Branch Office does not have a route to reach the subnet where PC1 resides (192.168.1.0/24 in the HQ Office). L3-SW-1 in the HQ Office has a route to the Branch Office subnet (172.16.1.0/24), but without the reciprocal route on L3-SW-2, traffic from the Branch Office will not be able to reach the HQ Office subnet, hence PC1 cannot ping PC2.
