Home / Juniper / JN0-682

Juniper JN0-682 Practice Test - Questions Answers, Page 7

Question list

List of questions

Question 61

(0)

Application developers are complaining that east-west server traffic is not being load balanced in your new data center. What are three reasons for this behavior? (Choose three.)

Question 62

(0)

You are attempting to configure filter-based forwarding in your data center. All traffic from Host1 that is going to Host2 should be inspected by the data center firewall. You have verified that the

Question 63

(0)

You administer an EVPN-VXLAN fabric. You notice that there is no VXLAN traffic forwarding through the network. Referring to the exhibit, which modification will solve the problem?

Question 64

(0)

You are an engineer for a hosting company. You have a new customer that wants the ability to connect any VLAN on any port. They want to have all VLANs map to a single bridge domain and EVPN instance

Question 65

(0)

What are two streaming data formats supported for network analytics? (Choose two.)

Question 66

(0)

Which two characteristics would you consider when selecting spine devices in an IP fabric? (Choose two.)

Question 67

(0)

A company wants to expect their hosting business and is seeking solutions to supported multiple tenants. Each tenant should be able to configure their own logical interfaces. Also, based on customer

Question 68

(0)

An EVPN-signaled VXLAN overlay has been deployed in the network shown in the exhibit. Host1 is a bare metal server, and is dual-homed to the network. The IP addresses 10.1.1.1/24 and 10.1.1.2/24 are

Question 69

(0)

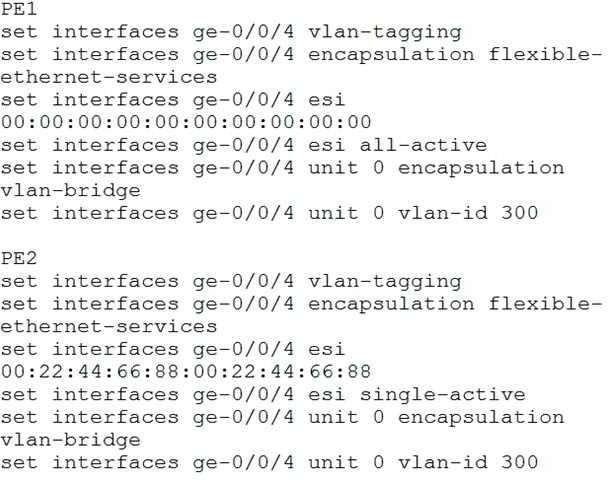

Your colleague has begun working on the base configuration for an active-active multihomed EVPN connection shown in the exhibit. Which two actions will ensure a successful implementation? (Choose

Question 70

(0)

You work in a data center where VMs and hosts are frequently moved. Your design needs to eliminate inefficient traffic flows. In this scenario, which two solutions will satisfy this requirement? (C

Question 61

Application developers are complaining that east-west server traffic is not being load balanced in your new data center. What are three reasons for this behavior? (Choose three.)

BGP multipath is not configured.

Policies for load balancing have not been configured.

MP-BGP is not exporting the correct prefix type.

There is insufficient spine to leaf bandwidth.

ESI active/active has not been configured.

Show Answer Comment (0)

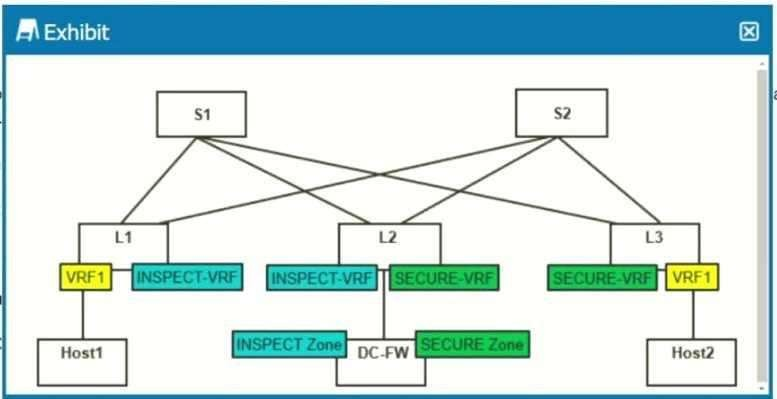

You are attempting to configure filter-based forwarding in your data center. All traffic from Host1 that is going to Host2 should be inspected by the data center firewall. You have verified that the traffic is being forwarded from router leaf L1's VRF-1 to its INSPECT-VRF. However, the traffic is not reaching service L2.

Referring to the exhibit, which two steps should you take to troubleshoot the problem? (choose two.)

Examine the INSPECT-VRF.evpn 0 route table on L1 for a default route that will direct the traffic to L2.

Examine the INSPECT-VRF.inet. 0 route table on L1 for a default route that will direct the traffic to L2.

Ensure that VRF-1 and INSPECT-VRF route targets on L1 and L2 match.

Ensure that the route target in the INSPECT-VRF of L1 matches the route target of the INSPECT- VRF of L2.

Show Answer Comment (0)

Question 63

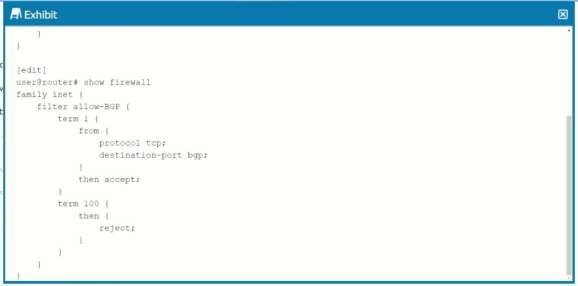

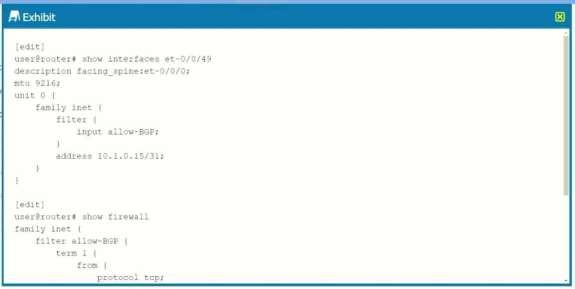

You administer an EVPN-VXLAN fabric. You notice that there is no VXLAN traffic forwarding through the network.

Referring to the exhibit, which modification will solve the problem?

set firewall family inet filter allow-BGP term 1 from protocol udp set firewall family inet filter allow- BGP term 1 from destination-port 4789

set interfaces et-0/0/49 unit 0 family vxlan

set interfaces et-0/0/49 unit 0 family vpls

set firewall family inet filter allow-BGP term 1 from protocol tcp set firewall family inet filter allow- BGP term 1 from destination-port 4789

Show Answer Comment (0)

Question 64

You are an engineer for a hosting company. You have a new customer that wants the ability to connect any VLAN on any port. They want to have all VLANs map to a single bridge domain and EVPN instance (EVI). They control all their own routing and just need the connectivity.

Which two parameters should you configure to achieve these goals? (Choose two.)

instance-type mac-vrf

service-type vlan-aware

service-type vlan-bundle

instance-type virtual-switch

Show Answer Comment (0)

Question 65

What are two streaming data formats supported for network analytics? (Choose two.)

GPB

XML

JSON

SLAX

Show Answer Comment (0)

Question 66

Which two characteristics would you consider when selecting spine devices in an IP fabric?

(Choose two.)

scaling limitations

spanning tree limitations

port density

data center location

Show Answer Comment (0)

Question 67

A company wants to expect their hosting business and is seeking solutions to supported multiple tenants. Each tenant should be able to configure their own logical interfaces. Also, based on customer needs, all routing features must be supported.

What will satisfy the customer's requirements?

Bridge domains

Tenant systems

Logical systems

Routing instances

Show Answer Comment (0)

Question 68

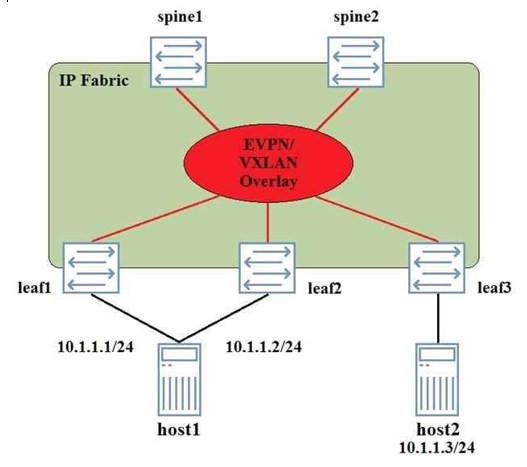

An EVPN-signaled VXLAN overlay has been deployed in the network shown in the exhibit. Host1 is a bare metal server, and is dual-homed to the network. The IP addresses 10.1.1.1/24 and 10.1.1.2/24 are assigned to the same physical NIC, and no virtualization is configured on the server.
