MuleSoft MCD - Level 1 Practice Test - Questions Answers, Page 10

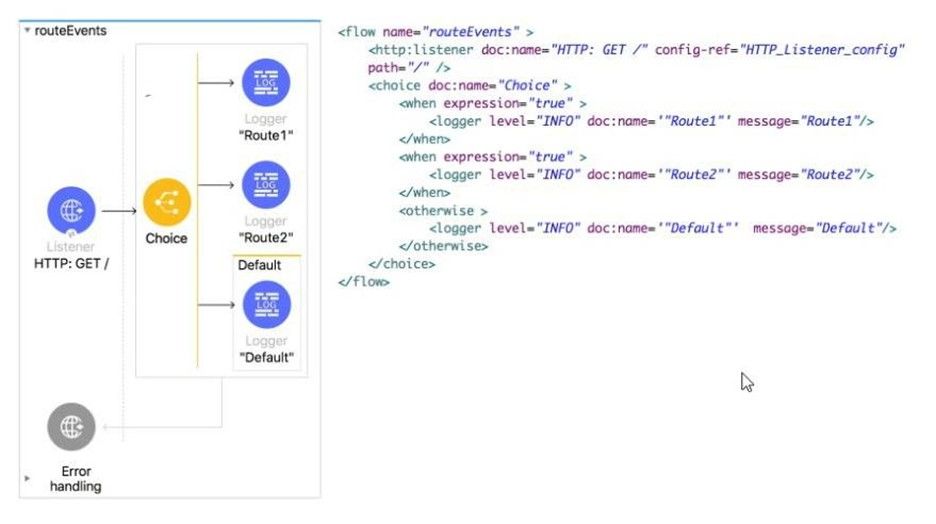

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route1 execution and the others are not checked. If none of the expressions are true, then the default route executes. Hence only Route1 will be executed as it is the first expression. hence output of logger is Route1.

MuleSoft Doc Ref : https://docs.mulesoft.com/mule-runtime/4.3/choice-router-concept

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route's execution and the others are not checked. If none of the expressions are true, then the default route executes.

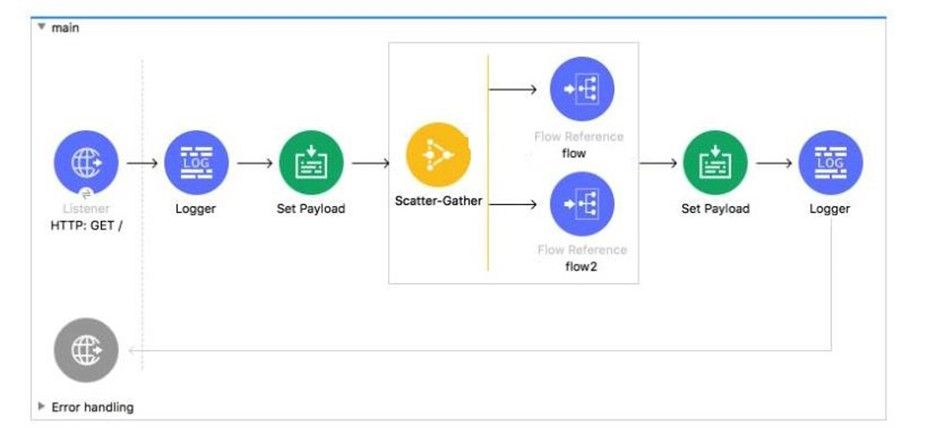

Scatter-Gather sends the event to each routes concurrently. Hence both route in this example will start in parallel. So total time to complete processing is 40 seconds

The Scatter-Gather component is a routing event processor that processes a Mule event through different parallel processing routes that contain different event processors. Each route receives a reference to the Mule event and executes a sequence of one or more event processors. Each of these routes uses a separate thread to execute the event processors, and the resulting Mule event can be either the same Mule event without modifications or a new Mule event with its own payload, attributes, and variables. The Scatter-Gather component then combines the Mule events returned by each processing route into a new Mule event that is passed to the next event processor only after every route completes successfully.

The Scatter-Gather component executes each route in parallel, not sequentially. Parallel execution of routes can greatly increase the efficiency of your Mule application and may provide more information than sequential processing.

Mule Ref Doc :https://docs.mulesoft.com/mule-runtime/4.3/scatter-gather-concept

Correct answer is

%dw 2.0

output application/json

import modules::Utility

---

Utility::encryptString( 'John Smith' )

DataWeave 2.0 functions are packaged in modules. Before you begin, note that DataWeave 2.0 is for Mule 4 apps. For Mule 3 apps, refer to DataWeave Operators in the Mule 3.9 documentation. For other Mule versions, you can use the version selector for the Mule Runtime table of contents.

Functions in the Core (dw::Core) module are imported automatically into your DataWeave scripts. To use other modules, you need to import the module or functions you want to use by adding the import directive to the head of your DataWeave script, for example:

import dw::core::Strings

import camelize, capitalize from dw::core::Strings

import * from dw::core::Strings

The way you import a module impacts the way you need to call its functions from a DataWeave script. If the directive does not list specific functions to import or use * from to import all functions from a function module, you need to specify the module when you call the function from your script. For example, this import directive does not identify any functions to import from the String module, so it calls the pluralize function like this: Strings::pluralize('box').

Transform

%dw 2.0

import dw::core::Strings

output application/json

---

{ 'plural': Strings::pluralize('box') }

You can choose Attach Project Sources to include metadata that Studio requires to reimport the deployable file as an open Mule project into your workspace. You must keep the Attach Project Sources option selected to be able to import the packaged JAR file back into a Studio workspace. But requirement here is to create smallest deployable archive that will successfully deploy to Cloudhub. Hence we can ignore this option.

We need to select Include project module and dependencies

As actual modules and external dependencies required to run the Mule application in a Mule runtime engine

Hence correct answer is

Select only below option 2) Include project module and dependencies

MuleSoft Doc Ref : https://docs.mulesoft.com/studio/7.5/import-export-packages#exporting-a-studio-project-to-a-deployable-mule-application

Query parameters are a defined set of parameters attached to the end of a url. They are extensions of the URL that are used to help define specific content or actions based on the data being passed. To append query params to the end of a URL, a '?' Is added followed immediately by a query parameter.

To add multiple parameters, an '&' is added in between each.

Hence coming back to question, endpoint would return Patients with name as John and (and is very important here) surname as Bell

Entire event would be sent to each route in parallel.

Scatter-Gather works as follows :

- The Scatter-Gather component receives a Mule event and sends a reference of this Mule event to each processing route.

- Each of the processing routes starts executing in parallel. After all processors inside a route finish processing, the route returns a Mule event, which can be either the same Mule event without modifications or a new Mule event created by the processors in the route as a result of the modifications applied.

- After all processing routes have finished execution, the Scatter-Gather component creates a new Mule event that combines all resulting Mule events from each route, and then passes the new Mule event to the next component in the flow.

By default, Debugger listens for incoming TCP connections on localhost port 6666 You can change this in a project's run configuration.

MuleSoft Doc Ref : https://docs.mulesoft.com/studio/7.5/visual-debugger-concept

Web Services Description Language. WSDL is used to describe SOAP based web services

Centre for Enablement (C4E) is an IT operating model that enables an enterprise to build reusable assets, accumulate API's, leverage best practices and knowledge to enable self service and efficient delivery in the organization and implement new solutions faster
