Refer to the exhibit. The main flow contains an HTTP Request in the middle of the flow. The HTTP Listeners and HTTP request use default configurations. <a target='_blank' href=' http://local:801/order?color=red'>What values are accessible to the Logger at the end of the flow after a web client submit request to http://local:801/order?color=red?</a>
Refer to the exhibits. Mule application has an HTTP request configuration where host name is hardcoded. Organization is looking to move host and port values to configuration file. What valid expression can be used to so that HTTP configuration can pick the value from configuration file?
A function named newProdCode needs to be defined that accepts two input parameters, an integer value for itemID and a string value for productCategory, and returns a new product code. What is the correct DataWeave code to define the newProdCode function?
Refer to the exhibit. What DataWeave expression transforms the conductorlds array to the XML output? A) B) C) D)
What is the main purpose of flow designer in Design Center?
Refer to the exhibits. The webClient flow sends requests to the mockServer Row's HTTP Listener. An HTTP: METHOD_NOT ALLOWED error is thrown each time the webClient flow executes. What attribute value must be changed in the webClient flow's HTTP Request operation to prevent this error from being thrown?
Refer to the exhibits. The my-app xml file contains an Error Handier scope named 'global-error-handler' The Error Handler scope needs to be set to be the default error handler for every flow in the Mule application Where and how should the value 'global-error-handler' be added in the Mule project so that the Error Handler scope is the default error handler of the Mule application?
What MuleSoft API-led connectivity layer is intended to expose part of a backend database without business logic?
Refer to the exhibit. The Mule application Is debugged in Any point Studio and stops at the breakpoint What is the value of the payload displayed In the debugger at this breakpoint?
Refer to the exhibits. A Mule application contains a Choice router. What is logged when the flow completes?

Question 231

Report
Export
Collapse

An API instance of type API endpoint with API proxy is created in API manager using an API specification from Anypoint Exchange. The API instance is also configured with an API proxy that is deployed and running in CloudHub.

An SLA- based policy is enabled in API manager for this API instance.

Where can an external API consumer obtain a valid client ID and client secret to successfully send requests to the API proxy?

A.
In the organization's public API portal in Anypoint Exchange, from an approved client application for the API proxy
A.
In the organization's public API portal in Anypoint Exchange, from an approved client application for the API proxy
Answers
B.
In Anypoint Studio, from components generated by APIkit for the API specification
B.
In Anypoint Studio, from components generated by APIkit for the API specification
Answers
C.
In Anypoint Studio, from components generated by Rest Connect for API specification
C.
In Anypoint Studio, from components generated by Rest Connect for API specification
Answers
D.
In Runtime Manager, from the properties tab of the deployed approved API proxy
D.
In Runtime Manager, from the properties tab of the deployed approved API proxy
Answers
Suggested answer: A

Explanation:

* When a client application is registered in Anypoint Platform, a pair of credentials consisting of a client ID and client secret is generated.* When the client application requests access to an API, a contract is created between the application and that API.* An API that is protected with a Client ID Enforcement policy is accessible only to applications that have an approved contract.---------------------------------------------------------------------------------------------------------------------------------------------Answer:: In the organization's public API portal in Anypoint Exchange, from

Question 232

Report
Export
Collapse

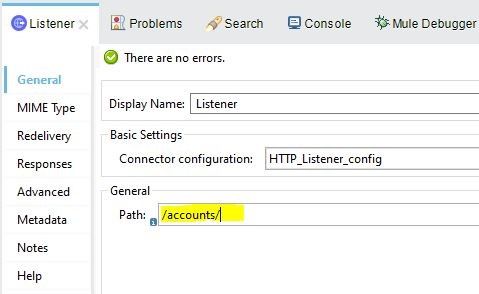

What is the correct Syntax to add a customer ID as a URI parameter in the HTTP listener's path attribute?

A.
#[customerID]
A.
#[customerID]
Answers
B.
$[customerID]
B.
$[customerID]
Answers
C.
{customerID}
C.
{customerID}
Answers
D.
(customerID)
D.
(customerID)
Answers
Suggested answer: C

Explanation:

URL parameters are always accessed using { } like => {customerID}

Question 233

Report
Export
Collapse

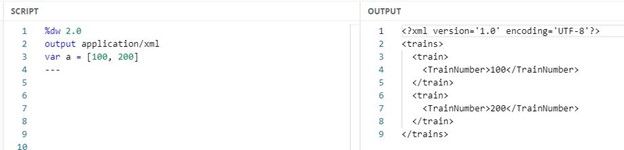

What DataWeave expression transforms the array a to the XML output?

A.
1. 1. trains: 2. 2. {( 3. 3. a map ((engId, index) -> 4. 4. train: { 5. 5. TrainNumber: engId 6. 6. 7. 7. } 8. 8. ) 9. 9. )}
A.
1. 1. trains: 2. 2. {( 3. 3. a map ((engId, index) -> 4. 4. train: { 5. 5. TrainNumber: engId 6. 6. 7. 7. } 8. 8. ) 9. 9. )}
Answers
B.
1. 1. trains: 2. 2. a map ((engId, index) -> 3. 3. train: { 4. 4. TrainNumber: engId 5. 5. 6. 6. } 7. 7. )
B.
1. 1. trains: 2. 2. a map ((engId, index) -> 3. 3. train: { 4. 4. TrainNumber: engId 5. 5. 6. 6. } 7. 7. )
Answers
C.
1. 1. {( 2. 2. trains: 3. 3. a map ((engId, index) -> 4. 4. train: { 5. 5. TrainNumber: engId 6. 6. 7. 7. } 8. 8. ) 9. )}
C.
1. 1. {( 2. 2. trains: 3. 3. a map ((engId, index) -> 4. 4. train: { 5. 5. TrainNumber: engId 6. 6. 7. 7. } 8. 8. ) 9. )}
Answers
D.
1. 1. { 2. 2. trains: 3. 3. a map ((engId, index) -> 4. 4. train: { 5. 5. TrainNumber: engId 6. 6. 7. 7. } 8. 8. ) 9. }
D.
1. 1. { 2. 2. trains: 3. 3. a map ((engId, index) -> 4. 4. train: { 5. 5. TrainNumber: engId 6. 6. 7. 7. } 8. 8. ) 9. }
Answers
Suggested answer: A

Explanation:

For such questions always look for Syntax:

I call it 'Wrap the Map'

trains:

{(

When mapping array elements (JSON or JAVA) to XML, wrap the map operations in {(..)}

-{ } are defining the object

-( ) are transforming each element in the array as a key/value pair

Question 234

Report
Export
Collapse

A shopping API contains a method to look up store details by department

To get information for a particular store, web clients will submit requests with a query parameter named department and a URI parameter named storeld.

What is a valid RAML snippet that supports requests from web clients to get data for a specific storeld and department name?

A)

B)

C)

D)

A.
Option A
A.
Option A
Answers
B.
Option B
B.
Option B
Answers
C.
Option C
C.
Option C
Answers
D.
Option D
D.
Option D
Answers
Suggested answer: C

Explanation:

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

/foos:

/{id}:

/name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI and do not reference root-level RAML file properties as we saw above in thebaseUrideclaration. The added lines represent the resources/foos/{id}and/foos/name/{name}.

Query Parameters

Now we'll define a way to query thefooscollection using query parameters. Note that query parameters are defined using the same syntax that we used above for data types:

/foos:

get:

description: List all Foos matching query criteria, if provided;

otherwise list all Foos

queryParameters:

name?: string

ownerName?: string

Based on the above information , below is the only option which definesstoreidas uri parameter anddepartmentas query parameter.

/{storeId}:

get:

queryParameter:

department:

Question 235

Report
Export
Collapse

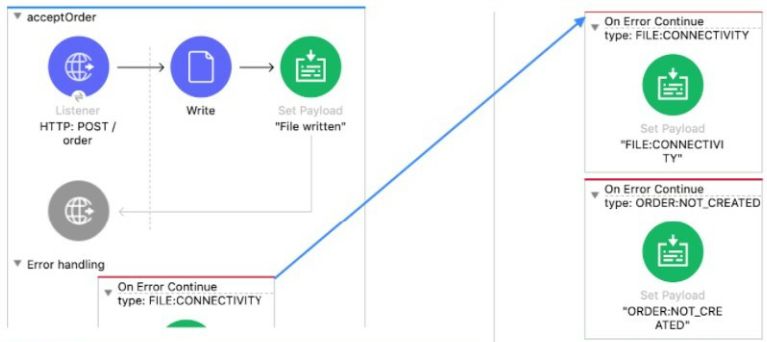

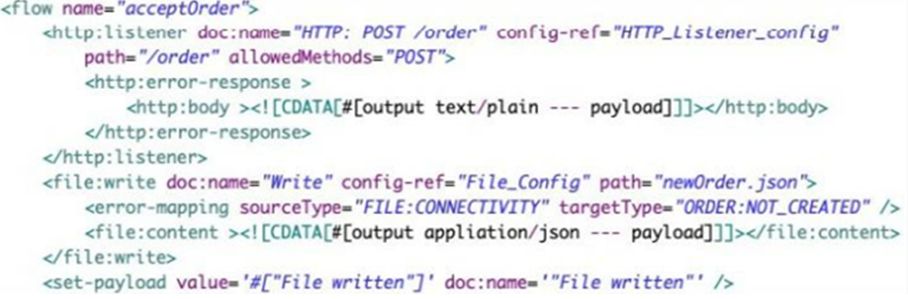

Refer to the exhibits The Mule application does NOT define any global error handlers.

A web client sends a POST request to the Multi application with this input payload The File Write operation throws a FILECONNECTIVITY error

What response message is returned to the web client?

A.
'ORDER NOT_CREATED'
A.
'ORDER NOT_CREATED'
Answers
B.
'OTHER ERROR'
B.
'OTHER ERROR'
Answers
C.
'File written'
C.
'File written'
Answers
D.
'FILECONNECTIVITY'
D.
'FILECONNECTIVITY'
Answers
Suggested answer: A
