MuleSoft MCD - Level 1 Practice Test - Questions Answers, Page 22

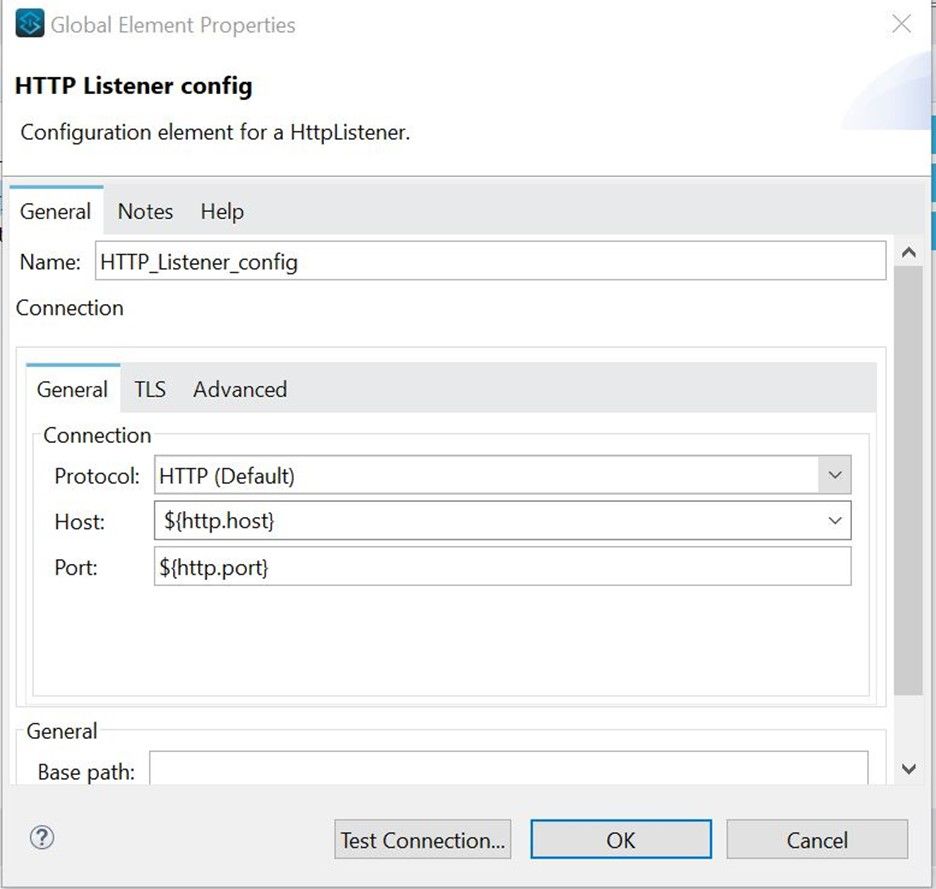

Correct answer is as below as it follows the correct syntax.

http:

basepath: 'api'

host : 'localhost'

port : '8081'

Mule Doc Reference :https://docs.mulesoft.com/mule-runtime/4.3/mule-app-properties-to-configure

Correct answer isprocess layeras all the orchestration and transformation logic should be in process layer as per Mulesoft's recommended approach for API led connectivity.

API-led connectivity is a methodical way to connect data to applications through reusable and purposeful APIs. These APIs are developed to play a specific role -- unlocking data from systems, composing data into processes, or delivering an experience.

What are the APIs that enable API-led connectivity?

API-led connectivity provides an approach for connecting and exposing assets. With this approach, rather than connecting things point-to-point, every asset becomes a managed API -- a modern API, which makes it discoverable through self-service without losing control.

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs-- these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs-- These APIs interact with and shape data within a single system or across systems(breaking down data silos)and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs-- Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Correct answer isConfigure the correct JDBC driveras error message suggests the same

Caused by: java.sql.SQLException: Error trying to load driver: com.mysql.jdbc.Driver : Cannot load class 'com.mysql.jdbc.Driver': [

Class 'com.mysql.jdbc.Driver' has no package mapping for region 'domain/default/app/mule_app'.,

Cannot load class 'com.mysql.jdbc.Driver': [

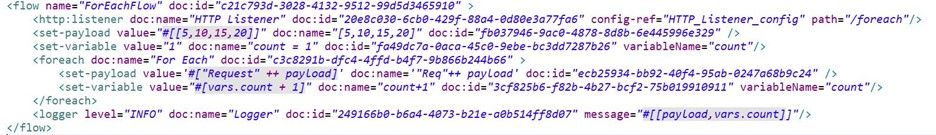

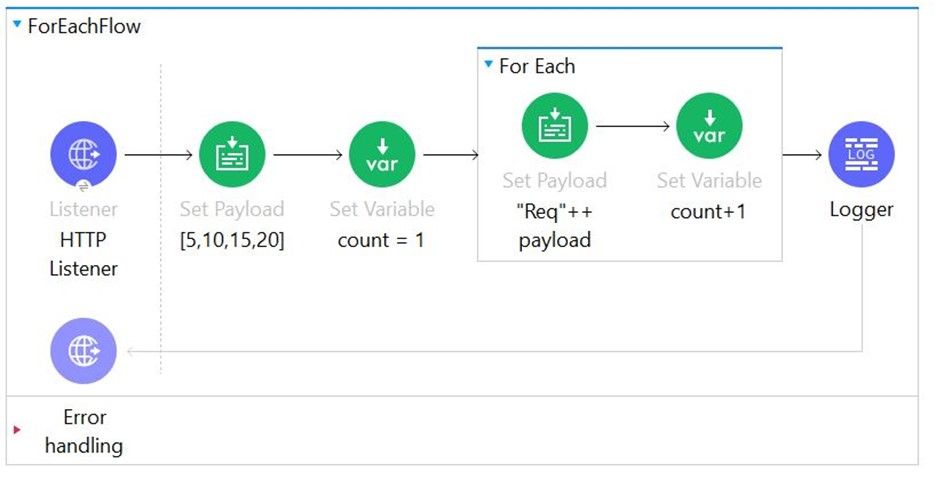

Correct answer is [[5, 10, 15, 20], 5]

Key thing to note here is that any changes made to payload in for each loop are not available outside for each scope where as variable value updated in for each loop is visible out side for each loop too.

In this example , sequence can be described as follows

1) Payload is set to the value [5, 10, 15, 20]

2) Variable is set to the value of 1

3) For each loop is executed four times and in each loop payload value is updated to append 'Req' and variable is count is increased by 1

4) Once control comes out of for each , payload changes made within for each are not visible. Hence payload at this point of time is equal to payload available before entering for each loop which was [5, 10, 15, 20]. Similarly variable value updated in for each loop is also available outside hence variable value is 5 as it was updated in loop.

5) Hence correct answer is [[5, 10, 15, 20], 5]

For Each Scope

The For Each scope splits a payload into elements and processes them one by one through the components that you place in the scope. It is similar to afor-each/forloop code block in most programming languages and can process any collection, including lists and arrays. The collection can be any supported content type, such asapplication/json,application/java, orapplication/xml.

General considerations about the For Each scope:

By default, For Each tries to split the payload. If the payload is a simple Java collection, the For Each scope can split it without any configuration. The payload inside the For Each scope is each of the split elements. Attributes within the original message are ignored because they are related to the entire message.

For Each does not modify the current payload. The output payload is the same as the input.

For non-Java collections, such as XML or JSON, use a DataWeave expression to split data. Use theCollectionfield for this purpose.

Correct answer is Array.

Flatten turns a set of subarrays (such as [ [1,2,3], [4,5,[6]], [], [null] ]) into a single, flattened array (such as [ 1, 2, 3, 4, 5, [6], null ]).

This example defines three arrays of numbers, creates another array containing those three arrays, and then uses the flatten function to convert the array of arrays into a single array with all values.

Source

%dw 2.0

output application/json

var array1 = [1,2,3]

var array2 = [4,5,6]

var array3 = [7,8,9]

var arrayOfArrays = [array1, array2, array3]

---

flatten(arrayOfArrays)

Output

[ 1,2,3,4,5,6,7,8,9 ]

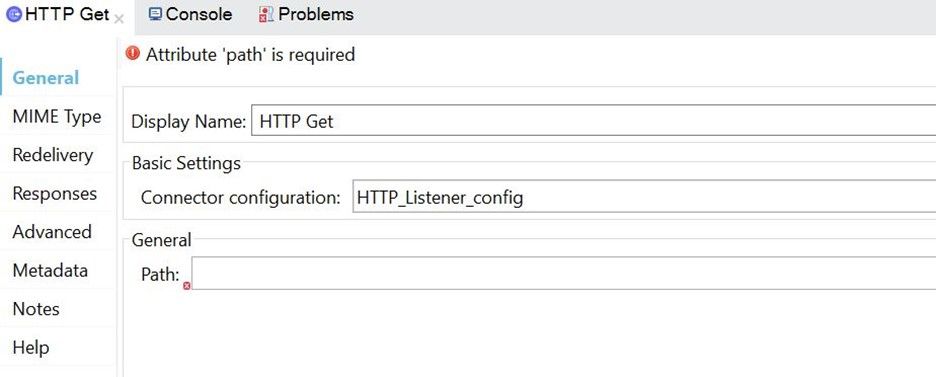

Correct answer is */status as it is the correct way to use wildcards while configuring path value in HTTP listener

PUT replaces the original version of the resource, whereas the PATCH method supplies a set of instructions to modify the resource
