Question 11

A consultant is imaging a Nutanix cluster with VMware ESXi. Foundation returns an error that the media is not a supported ISO. The consultant checks the whitelist file in Foundation and confirms that the version of the ISO is not listed.

Which three actions should the consultant take to resolve this issue? (Choose three.)

Replace and save whitelist file in Foundation

Obtain the MD5 checksum of the ISO and confirm MD5 checksum of ISO is listed.

Download the iso_whitelist.json from the Support portal.

Edit the whitelist file in Foundation.

Restart the imaging process in Foundation.

Show Answer Comment (0)

Question 12

To prepare for a new Nutanix installation, a consultant downloads the Foundation VM, imports the VM to their Desktop Virtualization Solution, and powers on the VM. The IPv4 static address on the host workstation and the Foundation VM have been configured, but pings between them fail.

Which two troubleshooting steps should the consultant perform? (Choose two.)

Remove and re-import the Foundation VM to ensure the virtual NIC is set to Host-Only.

Verify the virtual NIC in the Foundation VM is bound to the correct physical Host adapter.

Confirm the IP addresses and subnet masks are correct.

Verify the virtual NIC in the Foundation VM is bound to the correct wireless network adapter.

Show Answer Comment (0)

Question 13

A customer wants to use NIC teaming on an ESXi host using a vSphere Standard Switch configured with the Route based on physical NIC load load balancing option. The customer does not see the option when editing the Teaming and Failover settings for the switch.

How should the consultant resolve this issue?

Change the load balancing option on the switch.

Add a vSphere Distributed Switch

Add another physical NIC to the team.

Install a vCenter server to manage the switch

Show Answer Comment (0)

Question 14

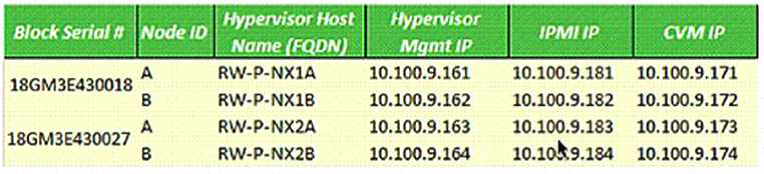

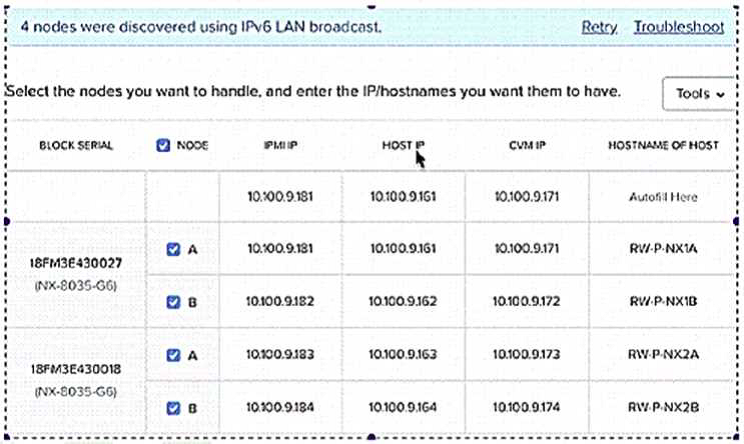

Refer to the exhibit.

A system administrator is using Range-Autofill tool to assign IP addresses to setup a multi-block cluster based on the following configuration:

Which additional changes must be made during the Foundation process to configure the cluster correctly?

Change host names

Reorder block serial

Change IP address

Reorder blocks

Show Answer Comment (0)

Question 15

After uploading a hypervisor ISO during the Foundation process, a consultant sees a message that the MD5 sum for the hypervisor is not found in the Whitelist file.

Which step should the consultant take next to resolve this issue?

Download the hypervisor ISO again from the vendor website.

Restart the Foundation process and upload the hypervisor again.

Download the latest hypervisor ISO whitelist file from Nutanix portal.

Check the hypervisor version in the Nutanix Compatibility Matrix.

Show Answer Comment (0)

Question 16

A consultant is viewing an ESXi host via console without external network connectivity.

Which two IP addresses can be used to connect to the CVM (Choose two.)

192.168.5.253

192.168.5.2

192.168.5.254

192.168.5.1

Show Answer Comment (0)

Question 17

A customer wants to expand an existing cluster with three additional nodes. After running the Foundation process on the new nodes, the customer realizes that the wrong IPs where used and the nodes are configured on a different network. The customer decides to create a new cluster instead.

Which method should be used to recreate the cluster?

Log into IPMI and use cluster create command to create the cluster.

Log into CVM and use cluster create command to create the cluster.

Log into Hypervisor and use cluster create command to create the cluster.

Foundation all nodes again and create the cluster.

Show Answer Comment (0)

Question 18

A consultant successfully installs the Foundation VM on a laptop and needs to ensure the VM can communicate externally.

Which two configuration changes should the consultant make next? (Choose two.)

Ensure the vNIC is set to bridged adapter.

Configure the static IP address through the desktop virtualization software.

Open terminal and configure via ifconfig command.

Run the set_foundation_ip_address application on the VM desktop.

Show Answer Comment (0)

Question 19

A consultant is setting up a new vSphere cluster. Customer requirements are as follows:

* VMs should automatically failover to another host if the host crashes * Host CPU and Memory resources should be evenly balanced * New VMs should be placed on the host with the most resources available Which two settings should be turned on to meet the requirements? (Choose two.)

vShpere DRS

vSphere HA

vSphere vMotion

vSphere Power Management

Show Answer Comment (0)

Question 20

A consultant configures an ESXi cluster which will utilize a vSphere Distributed Switch (vDS). The consultant has just migrated the first host to the dvSwitch when several alerts appear within Prism Element regarding Host-to-CVM connectivity.

What is causing these alerts?

The consultant migrated the CVM Backplane and VM network adapter over to the vDS.

The consultant migrated the CVM svm-iscsi-pg network adapter over to the vDS.

The consultant migrated the CVM Backplane network adapter over to the vDS.

VLAN tags are incorrectly configured on the vDS port groups.

Show Answer Comment (0)
