Fortinet NSE6_FSW-7.2 Practice Test - Questions Answers

Question list

List of questions

Question 1

(0)

How does FortiGate handle configuration of flow tracking sampling if you export the settings to a managed FortiSwitch stack with sampling mode set to perimeter is true?

Question 2

(0)

Refer to the exhibit. The profile shown in the exhibit is assigned to a group of managed FortiSwitch ports, and these ports are connected to endpoints which are powered by PoE. Which configurati

Question 3

(0)

Which two types of Layer 3 interfaces can participate in dynamic routing on FortiSwitch? (Choose two.)

Question 4

(0)

Which feature should you enable to reduce the number or unwanted IGMP reports processed by the IGMP querier?

Question 5

(0)

What feature can network administrators use to segment network operations and the administration of managed FortiSwitch devices on FortiGate?

Question 6

(0)

Which packet capture method allows FortiSwitch to capture traffic on trunks and management interfaces?

Question 7

(0)

Which Ethernet frame can create Layer 2 flooding due to all bytes on the destination MAC address being set to all FF?

Question 8

(0)

Which is a requirement to enable SNMP v2c on a managed FortiSwitch?

Question 9

(0)

Refer to the diagnostic output: Two entries in the exhibit show that the same MAC address has been used in two different VLANs. Which MAC address is shown in the above output?

Question 10

(0)

Refer to the exhibit. Core-1 and Access-1 are managed and authorized by FortiGate-1. which uses port4 as the FortiLink interface. After FortiGate authorizes and manages Core-2. Port1 status becom

Question 1

How does FortiGate handle configuration of flow tracking sampling if you export the settings to a managed FortiSwitch stack with sampling mode set to perimeter is true?

FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces.

FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.

FortiGate configures and enables flow sampling on FortiSwitch but does not change existing sampling settings of interfaces.

FortiGate configures and enables egress sampling on all management interfaces.

Show Answer Comment (0)

Question 2

Refer to the exhibit.

The profile shown in the exhibit is assigned to a group of managed FortiSwitch ports, and these ports are connected to endpoints which are powered by PoE.

Which configuration action can you perform on the LLDP profile to cause these endpoints to exchange PoE information and negotiate power with the managed FortiSwitch?

Create new a LLDP-MED application type to define the PoE parameters.

Assign a new LLDP profile to handle different LLDP-MED TLVs.

Define an LLDP-MED location ID to use standard protocols for power.

Add power management as part of LLDP-MED TLVs to advertise.

Show Answer Comment (0)

Question 3

Which two types of Layer 3 interfaces can participate in dynamic routing on FortiSwitch? (Choose two.)

Detected management interfaces

Loopback interfaces

Switch virtual interfaces

Physical interfaces

Show Answer Comment (0)

Question 4

Which feature should you enable to reduce the number or unwanted IGMP reports processed by the IGMP querier?

Enable the IGMP flood setting on the static port for all multicast groups.

Enable the IGMP flood reports setting on the mRouter port.

Enable IGMP snooping proxy.

Enable IGMP flood unknown multicast traffic on the global setting.

Show Answer Comment (0)

Question 5

What feature can network administrators use to segment network operations and the administration of managed FortiSwitch devices on FortiGate?

FortiGate multi-tenancy

Multi-chassis link aggregation trunk

FortiGate clustering protocol

FortiLink split interface

Show Answer Comment (0)

Question 6

Which packet capture method allows FortiSwitch to capture traffic on trunks and management interfaces?

SPAN

Sniffer profile

sFlow

TCP dump

Show Answer Comment (0)

Question 7

Which Ethernet frame can create Layer 2 flooding due to all bytes on the destination MAC address being set to all FF?

The broadcast Ethernet frame

The unicast Ethernet frame

The multicast Ethernet frame

The anycast Ethernet frame

Show Answer Comment (0)

Question 8

Which is a requirement to enable SNMP v2c on a managed FortiSwitch?

Create an SNMP user to use for authentication and encryption.

Specify an SNMP host to send traps to.

Enable an SNMP v3 to handle traps messages with SNMP hosts.

Configure SNMP agent and communities.

Show Answer Comment (0)

Question 9

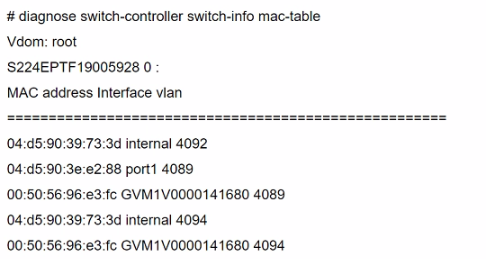

Refer to the diagnostic output:

Two entries in the exhibit show that the same MAC address has been used in two different VLANs. Which MAC address is shown in the above output?

It is a MAC address of FortiLink interface on FortiGate.

It is a MAC address of a switch that accepts multiple VLANs.

It is a MAC address of an upstream FortiSwitch.

It is a MAC address of FortiGate in HA configuration.

Show Answer Comment (0)

Question 10

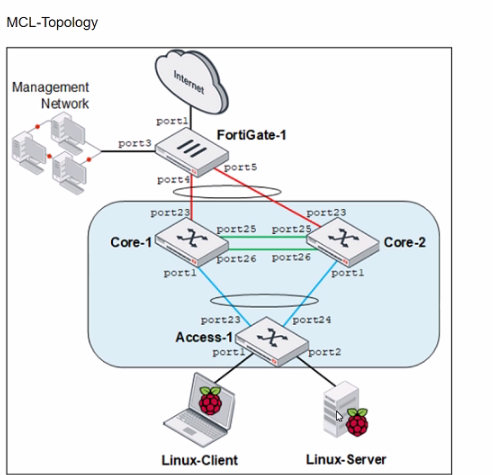

Refer to the exhibit.

Core-1 and Access-1 are managed and authorized by FortiGate-1. which uses port4 as the FortiLink interface. After FortiGate authorizes and manages Core-2. Port1 status becomes STP discarding.

Why is port1 in the discarding state?

port1 on Core-2 is discarding only management traffic.

Core-1 and Core-2 do not have MCLAG configuration.

Access-1 is the root bridge and can only have one root port.

Core-2 has the lowest bridge priority.

Show Answer Comment (0)

Total 56 questions
