Fortinet NSE6_FSW-7.2 Practice Test - Questions Answers, Page 2

Add to Whishlist

List of questions

Question 11

Report Export Collapse

Which two statements about the FortiLink authorization process are true? (Choose two.)

The administrator must manually pre-authorize FortiGate on FortiSwitch by adding the FortiGate serial number.
The administrator must manually pre-authorize FortiGate on FortiSwitch by adding the FortiGate serial number.
FortiSwitch requires a reboot to complete the authorization process.
FortiSwitch requires a reboot to complete the authorization process.
A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.
A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.
FortiLink authorization sets the FortiSwitch management mode to FortiLink.
FortiLink authorization sets the FortiSwitch management mode to FortiLink.
Suggested answer: C, D
asked 18/09/2024
ivaylo Skechleiev
41 questions

Question 12

Report Export Collapse

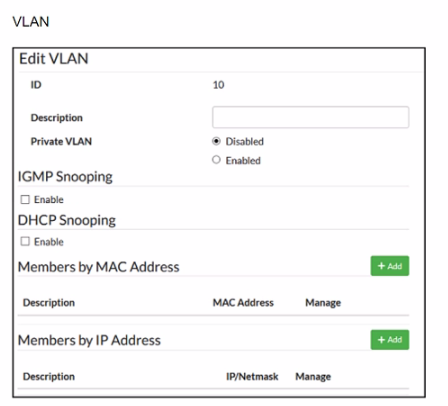

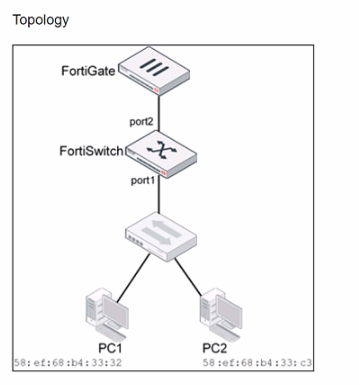

Refer to the exhibits

Fortinet NSE6_FSW-7.2 image Question 12 26788 09182024190630000000

Fortinet NSE6_FSW-7.2 image Question 12 26788 09182024190630000000

Traffic arriving on port2 on FortiSwitch is tagged with VLAN ID 10 and destined for PC1 connected on port1. PC1 expects to receive traffic untagged from port1 on FortiSwitch.

Which two configurations can you perform on FortiSwitch to ensure PC1 receives untagged traffic on port1? (Choose two.)

Add the MAC address of PCI as a member of VLAN 10.
Add the MAC address of PCI as a member of VLAN 10.
Add VLAN ID 10 as a member of the untagged VLANs on port1.
Add VLAN ID 10 as a member of the untagged VLANs on port1.
Remove VLAN 10 from the allowed VLANs and add it to untagged VLANs on port1.
Remove VLAN 10 from the allowed VLANs and add it to untagged VLANs on port1.
Enable Private VLAN on VLAN 10 and add VLAN 20 as an isolated VLAN.
Enable Private VLAN on VLAN 10 and add VLAN 20 as an isolated VLAN.
Suggested answer: A, B
asked 18/09/2024
David Stutz
37 questions

Question 13

Report Export Collapse

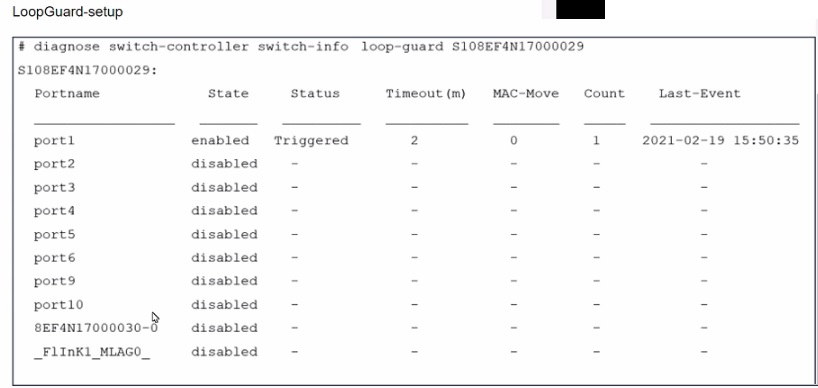

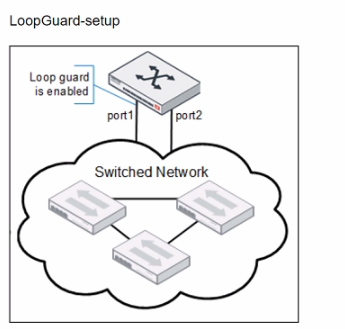

Refer to the exhibits.

Fortinet NSE6_FSW-7.2 image Question 13 26789 09182024190630000000

Fortinet NSE6_FSW-7.2 image Question 13 26789 09182024190630000000

Port1 and port2 are the only ports configured with the same native VLAN 10.

What are two reasons that can trigger port1 to shut down? (Choose two.)

port1 was shut down by loop guard protection.
port1 was shut down by loop guard protection.
STP triggered a loop and applied loop guard protection on port1.
STP triggered a loop and applied loop guard protection on port1.
An endpoint sent a BPDU on port1 that it received from another interface.
An endpoint sent a BPDU on port1 that it received from another interface.
Loop guard frame sourced from port 1 was received on port 1.
Loop guard frame sourced from port 1 was received on port 1.
Suggested answer: B, C
asked 18/09/2024
Asif Ibrahim
52 questions

Question 14

Report Export Collapse

Refer to the diagnostic output:

Fortinet NSE6_FSW-7.2 image Question 14 26790 09182024190630000000

What makes the use of the sniffer command on the FortiSwitch CLI unreliable on__port__23?

The types of packets captured is limited.
The types of packets captured is limited.
Just the port egress payloads are printed on CLI.
Just the port egress payloads are printed on CLI.
Only untagged VLAN traffic can be captured.
Only untagged VLAN traffic can be captured.
The switch port might be used as a trunk member
The switch port might be used as a trunk member
Suggested answer: A
asked 18/09/2024
Andres Montero
42 questions

Question 15

Report Export Collapse

Which interfaces on FortiSwitch send out FortiLink discovery frames by default in order to detect a FortiGate with an enabled FortiLink interface?

All ports have auto-discovery enabled by default.
All ports have auto-discovery enabled by default.
No ports are enabled by default for auto-discovery. This must be configured under config switch interface.
No ports are enabled by default for auto-discovery. This must be configured under config switch interface.
The ports with auto-discovery enabled by default are dependent upon the FortiSwitch model.
The ports with auto-discovery enabled by default are dependent upon the FortiSwitch model.
The last four switch ports on FortiSwitch have auto-discovery enabled by default.
The last four switch ports on FortiSwitch have auto-discovery enabled by default.
Suggested answer: A
asked 18/09/2024
Charles Brono
50 questions

Question 16

Report Export Collapse

Which LLDP-MED Type-Length-Values does FortiSwitch collect from endpoints to track network devices and determine their characteristics?

Network policy
Network policy
Power management
Power management
Location
Location
Inventory management
Inventory management
Suggested answer: D
asked 18/09/2024
Franklin Leon
45 questions

Question 17

Report Export Collapse

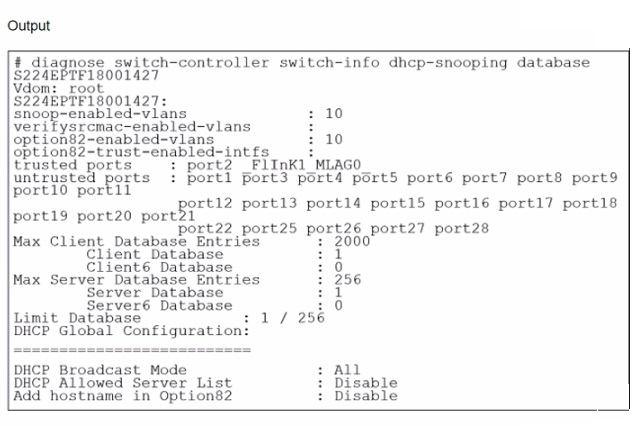

Refer to the exhibit.

Fortinet NSE6_FSW-7.2 image Question 17 26793 09182024190630000000

What two conclusions can be made regarding DHCP snooping configuration? (Choose two.)

Maximum value to accept clients DHCP request is configured as per DHCP server range.
Maximum value to accept clients DHCP request is configured as per DHCP server range.
FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.
FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.
DHCP clients that are trusted by DHCP snooping configured is only one.
DHCP clients that are trusted by DHCP snooping configured is only one.
Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.
Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.
Suggested answer: B, C
asked 18/09/2024
Nabil BENIKHLEF
46 questions

Question 18

Report Export Collapse

What are two reasons why time synchronization between FortiGate and its managed FortiSwitch is critical in switch management? (Choose two.)

FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.
FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.
FortiSwitch will not be able to become an NTP server for downstream devices.
FortiSwitch will not be able to become an NTP server for downstream devices.
FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.
FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.
FortiSwitch will not allow other FortiSwitch devices in the chain be discovered by FortiGate.
FortiSwitch will not allow other FortiSwitch devices in the chain be discovered by FortiGate.
Suggested answer: A, C
asked 18/09/2024
Jag Patel
37 questions

Question 19

Report Export Collapse

Which statement about the quarantine VLAN on FortiSwitch is true?

Quarantine VLAN has no DHCP server
Quarantine VLAN has no DHCP server
Users who fail 802.1X authentication can be placed on the quarantine VLAN.
Users who fail 802.1X authentication can be placed on the quarantine VLAN.
It is only used for quarantined devices if global setting is set to quarantine by VLAN.
It is only used for quarantined devices if global setting is set to quarantine by VLAN.
FortiSwitch can block devices without configuring quarantine VLAN to be part of the allowed VLANs.
FortiSwitch can block devices without configuring quarantine VLAN to be part of the allowed VLANs.
Suggested answer: C
asked 18/09/2024
Valencia, Luis
46 questions

Question 20

Report Export Collapse

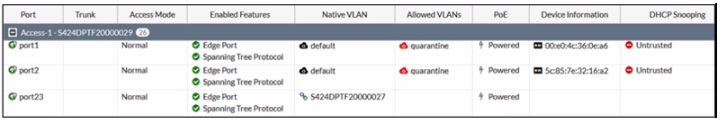

Refer to the exhibit.

Fortinet NSE6_FSW-7.2 image Question 20 26796 09182024190630000000

The exhibit shows the current status of the ports on the managed FortiSwitch. Access-1.

Why would FortiGate display a serial number in the Native VLAN column associated with the port23 entry?

port23 is configured as the dedicated management interface.
port23 is configured as the dedicated management interface.
Ports connected to adjacent FortiSwitch devices show their serial number as the native VLAN.
Ports connected to adjacent FortiSwitch devices show their serial number as the native VLAN.
port23 is a member of a trunk that uses the Access-1 FortiSwitch serial number as the name of the trunk.
port23 is a member of a trunk that uses the Access-1 FortiSwitch serial number as the name of the trunk.
A standalone switch with the shown serial number is connected on port23.
A standalone switch with the shown serial number is connected on port23.
Suggested answer: D
asked 18/09/2024
Lucas Bila
39 questions
Total 56 questions
