Question 71

(0)

Refer to the exhibit. FortiGate has multiple dial-up VPN interfaces incoming on port1 that match only FIRST_VPN. Which two configuration changes must be made to both IPsec VPN interfaces to allo

Question 72

(0)

Refer to the exhibits. Exhibit A Exhibit B Exhibit A shows an SD-WAN event log and exhibit B shows the member status and the SD-WAN rule configuration. Based on the exhibits, which two state

Question 73

(0)

Which statement is correct about SD-WAN and ADVPN?

Question 74

(0)

Refer to the exhibit. The exhibit shows the BGP configuration on the hub in a hub-and-spoke topology. The administrator wants BGP to advertise prefixes from spokes to other spokes over the IPsec

Question 75

(0)

Refer to the exhibit. The exhibit shows the details of a session and the index numbers of some relevant interfaces on a FortiGate appliance that supports hardware offloading. Based on the informa

Question 76

(0)

Refer to the exhibit. In a dual-hub hub-and-spoke SD-WAN deployment, which is a benefit of disabling the anti-replay setting on the hubs?

Question 77

(0)

Refer to the exhibit. Based on the exhibit, which two actions does FortiGate perform on traffic passing through port2? (Choose two.)

Question 78

(0)

Refer to the exhibit, which shows an SD-WAN zone configuration on the FortiGate GUI. Based on the exhibit, which statement is true?

Question 79

(0)

What are two advantages of using an IPsec recommended template to configure an IPsec tunnel in an hub-and-spoke topology? (Choose two.)

Question 80

(0)

Which diagnostic command can you use to show the SD-WAN rules, interface information, and state?

Question 71

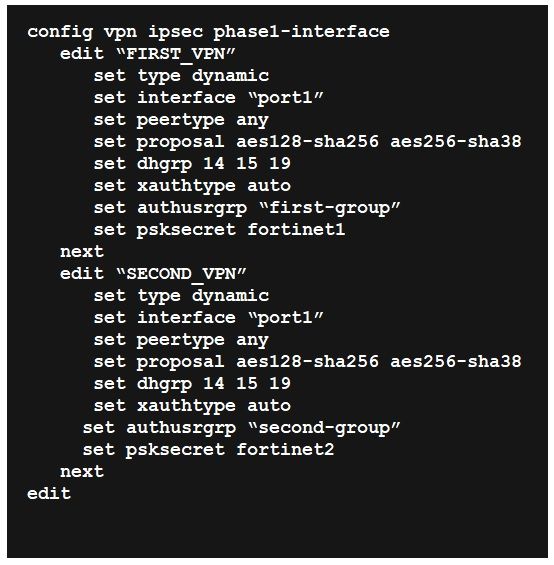

Refer to the exhibit.

FortiGate has multiple dial-up VPN interfaces incoming on port1 that match only FIRST_VPN.

Which two configuration changes must be made to both IPsec VPN interfaces to allow incoming connections to match all possible IPsec dial-up interfaces? (Choose two.)

Specify a unique peer ID for each dial-up VPN interface.

Use different proposals are used between the interfaces.

Configure the IKE mode to be aggressive mode.

Use unique Diffie Hellman groups on each VPN interface.

Show Answer Comment (0)

Question 72

Refer to the exhibits.

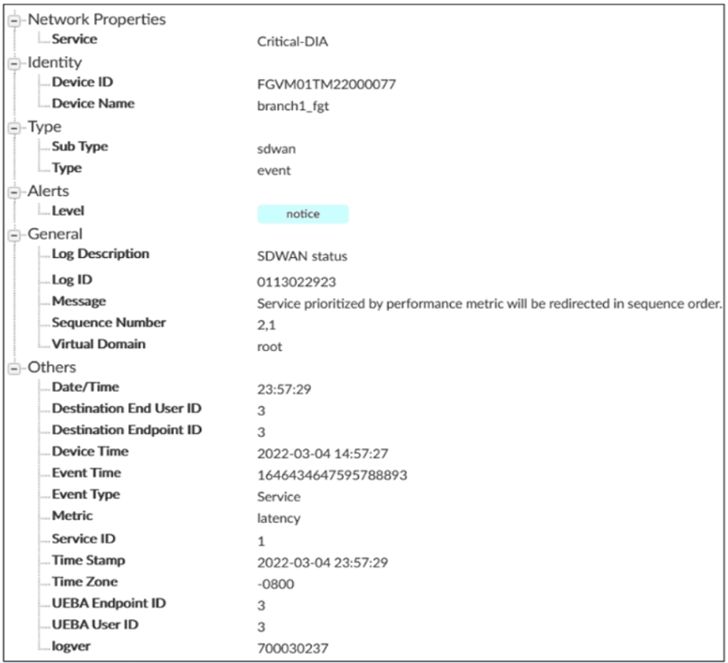

Exhibit A

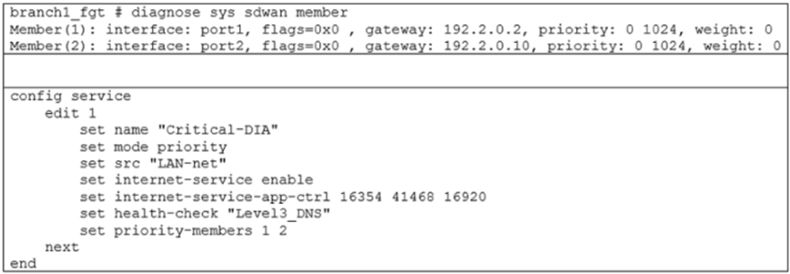

Exhibit B

Exhibit A shows an SD-WAN event log and exhibit B shows the member status and the SD-WAN rule configuration.

Based on the exhibits, which two statements are correct? (Choose two.)

FortiGate updated the outgoing interface list on the rule so it prefers port2.

Port2 has the highest member priority.

Port2 has a lower latency than port1.

SD-WAN rule ID 1 is set to lowest cost (SLA) mode.

Show Answer Comment (0)

Question 73

Which statement is correct about SD-WAN and ADVPN?

Routes for ADVPN shortcuts must be manually configured.

SD-WAN can steer traffic to ADVPN shortcuts, established over IPsec overlays, configured as SD-WAN members.

SD-WAN does not monitor the health and performance of ADVPN shortcuts.

You must use IKEv2 on IPsec tunnels.

Show Answer Comment (0)

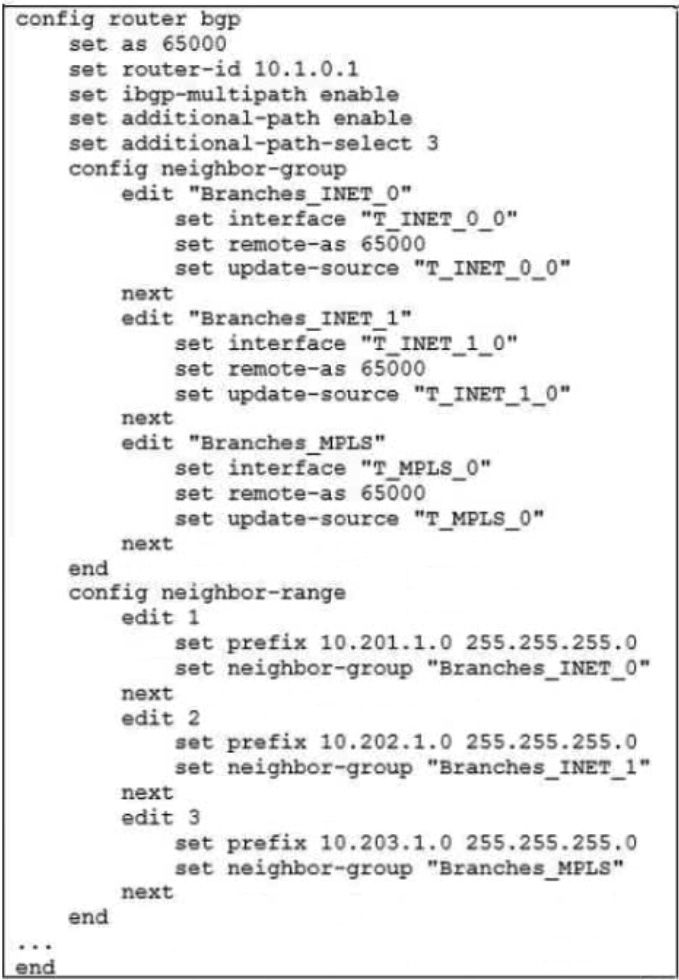

The exhibit shows the BGP configuration on the hub in a hub-and-spoke topology. The administrator wants BGP to advertise prefixes from spokes to other spokes over the IPsec overlays, including additional paths. However, when looking at the spoke routing table, the administrator does not see the prefixes from other spokes and the additional paths.

Based on the exhibit, which three settings must the administrator configure inside each BGP neighbor group so spokes can learn other spokes prefixes and their additional paths? (Choose three.)

Set additional-path to send

Enable route-reflector-client

Set advertisement-interval to the number of additional paths to advertise

Set adv-additional-path to the number of additional paths to advertise

Enable soft-reconfiguration

Show Answer Comment (0)

Question 75

Refer to the exhibit.

The exhibit shows the details of a session and the index numbers of some relevant interfaces on a FortiGate appliance that supports hardware offloading. Based on the information shown in the exhibits, which two statements about the session are true? (Choose two.)

The reply direction of the asymmetric traffic flows from port2 to port3.

The auxiliary session can be offloaded to hardware.

The original direction of the symmetric traffic flows from port3 to port2.

The main session cannot be offloaded to hardware.

Show Answer Comment (0)

Question 76

Refer to the exhibit.

In a dual-hub hub-and-spoke SD-WAN deployment, which is a benefit of disabling the anti-replay setting on the hubs?

It instructs the hub to disable the reordering of TCP packets on behalf of the receiver, to improve performance.

It instructs the hub to disable TCP sequence number check, which is required for TCP sessions originated from spokes to fail over back and forth between the hubs.

It instructs the hub to not check the ESP sequence numbers on IPsec traffic, to improve performance.

It instructs the hub to skip content inspection on TCP traffic, to improve performance.

Show Answer Comment (0)
