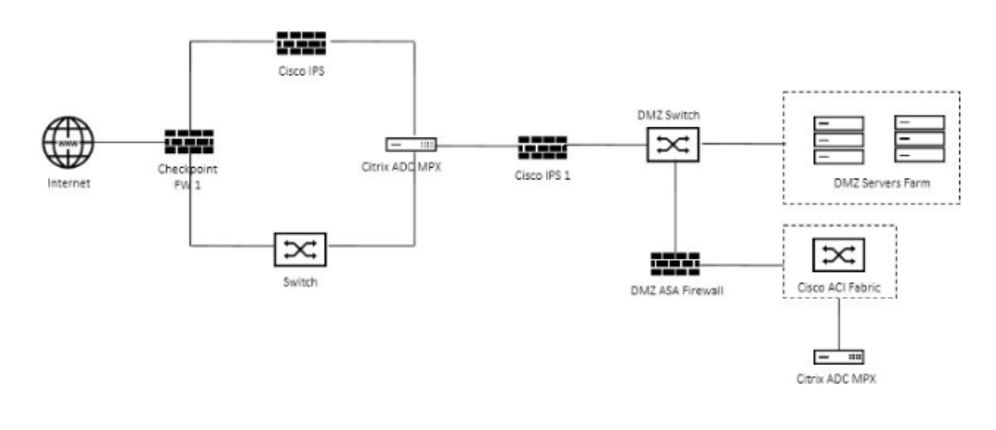

Scenario: Based on a discussion between a Citrix Architect and a team of Workspacelab members, the MPX Logical layout for Workspacelab has been created across three (3) sites.
They captured the following requirements during the design discussion held for a Citrix ADC design project:
All three (3) Workspacelab sites (DC NDR and DR) will have similar Citrix ADC configurations and design
Both external and internal Citrix ADC MPX appliances will have Global Server Load Balancing (GSLB) configured and deployed in Active/Passive mode
GSLB should resolve both A and AAA DNS queries.
In the GSLB deployment the NDR site will act as backup for the DC site, whereas the DR site will act as backup for the NDR site
When the external Citrix ADC replies to DNS traffic coming in through Cisco Firepower IPS the replies should be sent back through the same path
On the internal Citrix ADC. both front-end VIP and back-end SNIP will be part of the same subnet
USIP is configured on the DMZ Citrix ADC appliances
The external Citrix ADC will act as default gateway for back-end servers.
All three (3) sites (DC, NDR, and DR) will have two (2) links to the Internet from different service providers configured in Active/Standby mode
Which design decision must the architect make to meet the design requirements above?
Scenario: A Citrix Architect needs to assess a Citrix Gateway deployment that was recently completed by a customer and is currently in pre-production testing. The Citrix Gateway needs to use ICA proxy to provide access to a Citrix Virtual Apps and Citrix Virtual Desktops environment. During the assessment, the customer informs the architect that users are NOT able to launch published resources using the Gateway virtual server.

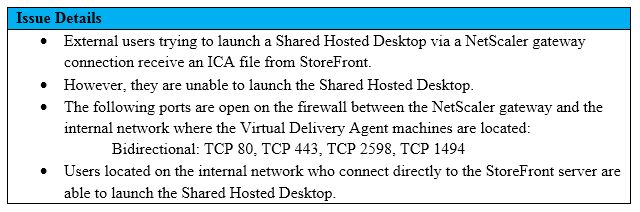

Click the Exhibit button to view the troubleshooting details collected by the customer.
What is the cause of this issue?
A Citrix Architect needs to configure advanced features of Citrix ADC by using StyleBooks as a resource in the Heat service.
What is the correct sequence of tasks to be completed for configuring Citrix ADC using the Heat stack?
Scenario: A Citrix Architect has configured two MPX devices in high availability mode with version 12.0.53.13 nc. After a discussion with the security team, the architect enabled the Application Firewall feature for additional protection.
In the initial deployment phase, the following security features were enabled:
IP address reputation
HTML SQL injection check
Start URL
HTML Cross-site scripting
Form-field consistency
After deployment in pre-production, the team identifies the following additional security features and changes as further requirements:
Application Firewall should retain the response of form field in its memory When a client submits the form in the next request. Application Firewall should check for inconsistency in the request before sending it to the web server
All the requests dropped by Application Firewall should receive a pre-configured HTML error page with appropriate information.
The Application Firewall profile should be able to handle the data from the RSS feed and an ATOM-based site.

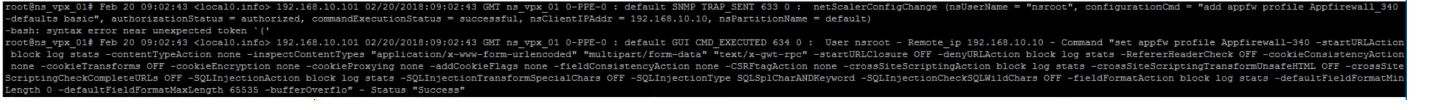

Click the Exhibit button to view an excerpt of the existing configuration.
What should the architect do to meet these requirements?
Scenario: A Citrix Architect and a team of Workspacelab members met to discuss a Citrix ADC design project. They captured the following requirements from this design discussion:
All three (3) Workspacelab sites (DC. NDR. and DR) will have similar Citrix ADC configurations and design.
The external Citrix ADC MPX appliances will have Global Server Load Balancing (GSLB) configured and deployed in Active/Active mode
ADNS service should be configured on the Citrix ADC to make it authoritative for domain nsg Workspacelab.com.
In GSLB deployment, the DNS resolution should be performed to connect the user to the site with least network latency.
On the internal Citrix ADC, load balancing for StoreFront services, Citrix XML services, and Citrix Director services must be configured
On the external Citrix ADC. the Gateway virtual server must be configured in ICA proxy mode

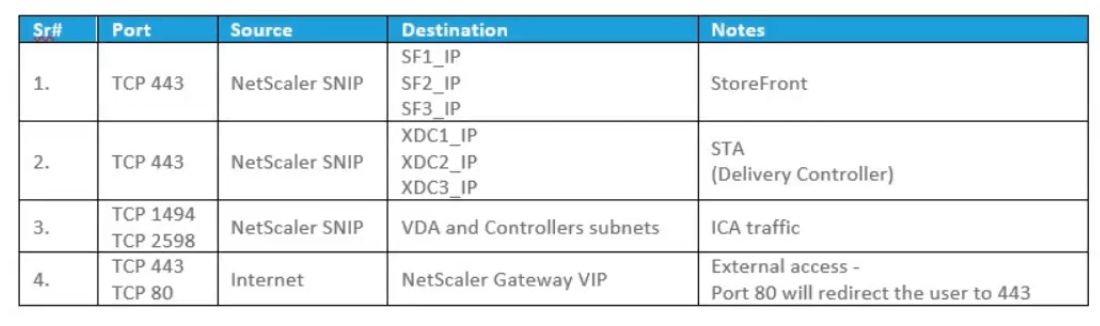

Click the Exhibit button to view the logical representation of the network and the firewall policy prerequisites provided by the architect. On which two firewalls should the architect configure the policies? (Choose two.)
Scenario: A Citrix Architect has met with a team of Workspacelab members for a design discussion They have captured the following requirements for the Citrix ADC design project:
The authentication must be deployed for the users from the workspacelab com and vendorlab com domains.
The workspacelab users connecting from the internal (workspacelab) network should be authenticated using LDAP
The workspacelab users connecting from the external network should be authenticated using LDAP and RADIUS.
The vendorlab users should be authenticated using Active Directory Federation Service
The user credentials must NOT be shared between workspacelab and vendorlab
Single Sign-on must be performed between StoreFront and Citrix Gateway
A domain drop down list must be provided if the user connects to the Citrix Gateway virtual server externally
Which method must the architect utilize for user management between the two domains?
Scenario: A Citrix Architect and a team of Workspacelab members met to discuss a NetScaler design project. They captured the following requirements from this design discussion:
A pair of NetScaler MPX appliances will be deployed in the DMZ network.
High Availability will be accessible in the NetScaler MPX in the DMZ Network.
Load balancing should be performed for the internal network services like Microsoft Exchange Client Access Services and Microsoft App-V.
The load balancing should be performed for StoreFront.
The NetScaler Gateway virtual server will be utilizing the StoreFront load-balancing virtual server.
The NetScaler Gateway virtual server and StoreFront.
The NetScaler Gateway virtual service and StoreFront and load-balancing services are publicly accessible.
The traffic for internal and external services must be isolated.

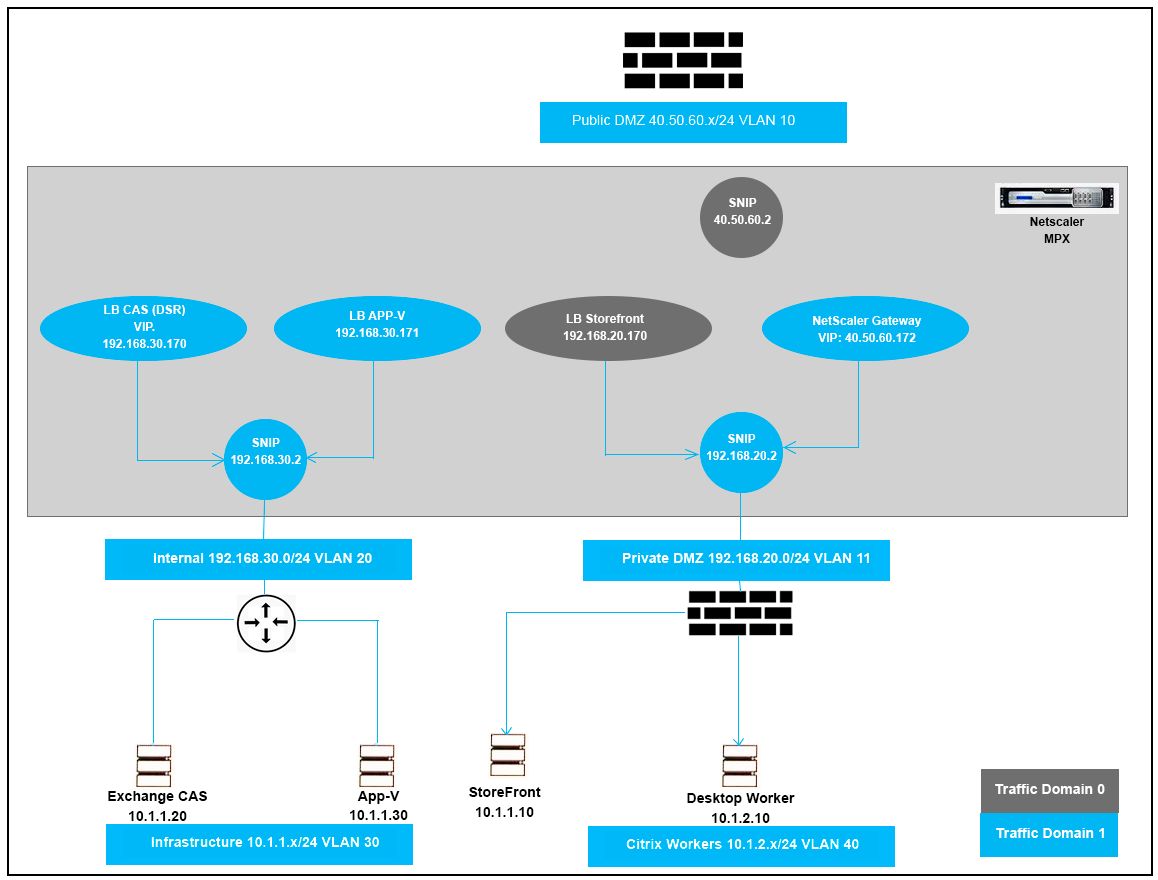

Click the Exhibit button to review the logical network diagram.
Which two design decisions are incorrect based on these requirements? (Choose two.)
Which StyleBook group should a Citrix Architect use to deploy the configuration for Microsoft SharePoint servers on Citrix ADC Management and Analytics (Citrix Application Delivery Management)?
Scenario: A Citrix Architect has deployed load balancing for SharePoint 2010 on a Citrix ADC instance. While editing the document, the architect observed the error displayed below:
<a target='_blank' href=''>Sorry, we couldn't open 'https://sharepointcs.emea.in/Shared Documents/Citrix Enhancement Request Form.doc'</a>
After troubleshooting, the architect discovers the issue. When a user opens a document, it opens in the browser, but while editing the document, thd session is transferred from the browser to the Word application During this time, the cookies should be transferred from the browser to the Word application.
Which two configurations should the architect modify to ensure that the cookies are shared between the browser and non-browser applications? (Choose two.)
Scenario: A Citrix Architect needs to design a new multi-datacenter Citrix ADC deployment. The customer wants Citrix ADC to provide access the various backend resources by using Global Server Load Balancing (GSLB) in an Active-Active deployment.

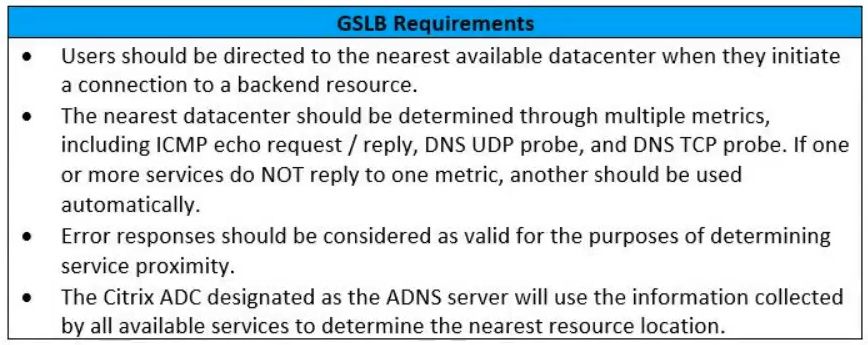

Click the Exhibit button to view additional requirements identified by the architect.
Which GSLB algorithm or method should the architect use for the deployment based on the stated requirements?
