Scenario: A Citrix Architect needs to design a hybrid Citrix Virtual App and Citrix Virtual Desktop environment which will include as well as resource locations in an on-premises datacenter and Microsoft Azure.

Organizational details and requirements are as follows:

Active Citrix Virtual App and Citrix Virtual Desktop Service subscription

No existing Citrix deployment

Minimization of additional costs

All users should correct directly to the resource locations containing the servers which will host HDX sessions

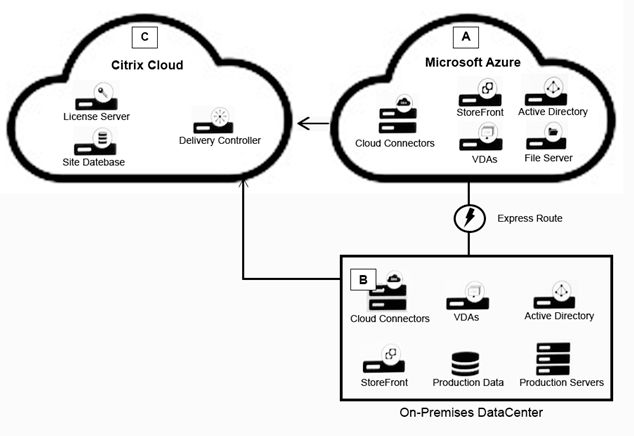

Click the Exhibit button to view the conceptual environment architecture.

The architect should use___________ in Location A, and should use _______________ in Location B. (Choose the correct option to complete the sentence.)

Which IP address should be bound to VLAN 11?

Scenario: A Citrix Architect needs to conduct a capabilities assessment for an organization that wants to create a new Citrix ADC deployment. One of the organization's core business drivers is to ensure that key applications are always available to users.

Which capabilities must the architect verify to assess if the requirement is feasible with the current infrastructure?

A Citrix Architect has deployed Citrix Application Delivery Management to monitor a high availability pair of Citrix ADC VPX devices.

The architect needs to deploy automated configuration backup to meet the following requirements:

The configuration backup file must be protected using a password.

The configuration backup must be performed each day at 8:00 AM GMT.

The configuration backup must also be performed if any changes are made in the ns.conf file.

Once the transfer is successful, auto-delete the configuration file from the NMAS.

Which SNMP trap will trigger the configuration file backup?

Scenario: The Workspacelab team has implemented a Citrix ADC high availability pair and Citrix ADC Management and Analytics (Citrix Application Delivery Management). The Citrix Application Delivery Management was configured by a Citrix Architect to monitor and manage these devices. The Workspacelab team wants to load balance their Microsoft SharePoint servers on the Citrix ADC and needs the process to be streamlined and administered using Citrix Application Delivery Management. The following requirements were discussed during the meeting.

* The Microsoft SharePoint server should be optimized. Load balanced, and secured in the network and should be deployed using Citrix Application Delivery Management.

* All the configurations should be verified before getting pushed to the Citrix Application Delivery Management.

What is a prerequisite for installing Microsoft SharePoint using Citrix Application Delivery Management?

Scenario: A Citrix Engineer is asked by management at the workspacelab organization to review their existing Citrix ADC Configurations and make the necessary upgrades. The architect recommends small changes to the pre-existing Citrix ADC configuration. Currently, the Citrix ADC MPX devices are configured in high-availability pair, and the outbound traffic is load balanced between two internet service providers (ISPs), however, the failover is NOT happening correctly. The following requirements were discussed during the design requirement phase:

The return traffic for a specific flow should be routed through the same path while using Link Load Balancing.

The link should fail over even if the ISP router is up and intermediary devices to an ISP router are down.

Traffic going through one ISP router should fail over to the secondary ISP, and the traffic should not flow through both routers simultaneously.

What should the architect configure with Link Load Balancing LLB) to meet the requirement?

Which business driver would motivate a Citrix Architect to use the full range of security features on the Citrix ADC to allow for the removal of third party firewalls, proxy devices and multiple URLs?

Scenario: A Citrix Architect has setup Citrix ADC MPX devices in high availability mode with version 12.0.53.13 nc. These are placed behind a Cisco ASA 5505 firewall. The Cisco ASA firewall is configured to block traffic using access control lists. The network address translation (NAT) is also performed on the firewall. The following requirements were captured by the architect during the discussion held as part of the Citrix ADC security implementation project with the customer's security team: The Citrix ADC MPX device:

should monitor the rate of traffic either on a specific virtual entity or on the device. It should be able to mitigate the attacks from a hostile client sending a flood of requests. The Citrix ADC device should be able to stop the HTTP. TOP, and DNS based requests.

needs to protect backend servers from overloading.

needs to queue all the incoming requests on the virtual server level instead of the service level.

should provide access to resources on the basis of priority.

should provide protection against well-known Windows exploits, virus-infected personal computers, centrally managed automated botnets. compromised webservers, known spammersThackers. and phishing proxies.

should provide flexibility to enforce the desired level of security check inspections for the requests originating from a specific geolocation database.

should block the traffic based on a predetermined header length, URL length, and cookie length.The device should ensure that characters such as a single straight quote (') backslash (); and semicolon (;) are either blocked, transformed, or dropped while being sent to the backend server.

Which security feature should the architect implement to meet these requirements?

Scenario: A Citrix Architect and a team of Workspacelab members met to discuss a Citrix ADC design project. They captured the following requirements from this design discussion:

All three (3) Workspacelab sites (DC, NOR, and DR) will have similar Citrix ADC configurations and design.

The external Citrix ADC MPX1 appliances will have Global Server Load Balancing (GSLB) configured and deployed in Active/Active mode.

<a target='_blank' href='http://nsg.workspacelab.com/'>ADNS service should be configured on the Citrix ADC to make it authoritative for domain nsg.workspacelab.com * In GSLB deployment, the DNS resolution should be performed to connect the user to the site with least network latency.</a>

On the internal Citrix ADC, load balancing for StoreFront services, Citrix XML services, and Citrix Director services must be configured.

On the external Citrix ADC, the Gateway virtual server must be configured in ICA proxy mode.

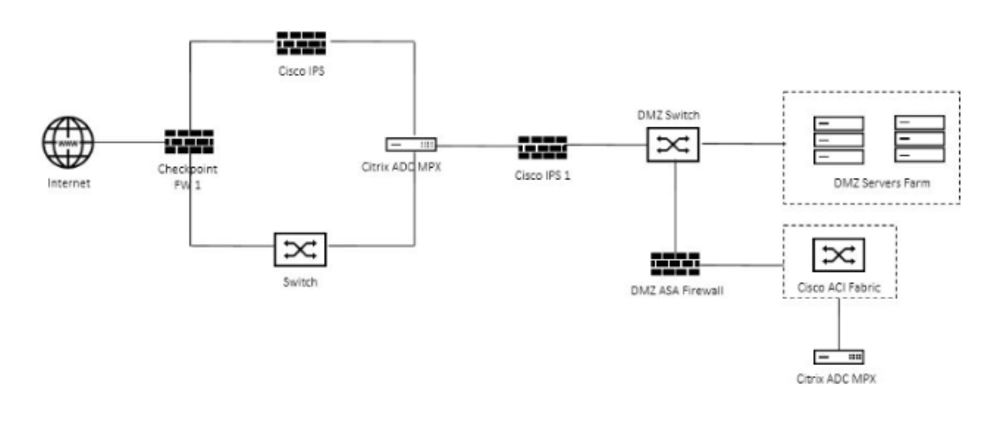

Click the Exhibit button to view the logical representation of the network.

On which firewall should the architect configure the access policy to permit the MEP communication between the sites?
