Question 161

An IT administrator deployed an OEAP to the home of a remote user, but the OEAP cannot reach the WLC. Which two configuration settings must be completed before an OEAP is deployed successfully?

(Choose two.)

Configure Secondary Controller Name and Management IP address in the High Availability tab.

Configure LSC to authorize the OEAP.

Configure the AP mode to FlexConnect and check the box for Office Extend AP.

Configure the WLC with an external IP address on the virtual interface.

Configure Primary Controller Name and Management IP address in the High Availability tab.

Show Answer Comment (0)

An IT administrator deploys Cisco 2802i APs in all office locations, including main campus and branch offices. The WLC that manages the APs is located at the data center on the main campus. The APs on the main campus are configured to use Local mode and the APs in the branches use FlexConnect mode. Which configuration must be applied to the APs for corporate devices on the main campus to be mapped to the local LAN switch on different VLANs according to the VLAN tag ID and WLAN?

Enable Central DHCP Processing.

Disable FlexConnect Local Auth

Enable FlexConnect Local Switching.

Disable VLAN-based Central Switching.

Show Answer Comment (0)

Question 163

An engineer is in the process of implementing Fastiane on a wireless network with a Mobility Express AP installed and Apple end-user devices. Due to a security concern, the IT department has updated all the iPads to version

14.5.423551943. Which QoS profile must the engineer configure on the user WLAN?

Platinum

Best Effort

Bronze

Silver

Show Answer Comment (0)

Question 164

An engineer wants to upgrade the APs in a Cisco FlexConnect group. To accomplish this upgrade, the FlexConnect AP Upgrade setting will be used. One AP of each model with the lowest MAC address in the group must receive the upgrade directly from the controller. Which action accomplishes this direct upgrade?

Remove the APs from the group.

Reboot all APs before the upgrade.

Allocate the master APs to different groups.

Do not set any master APs.

Show Answer Comment (0)

Question 165

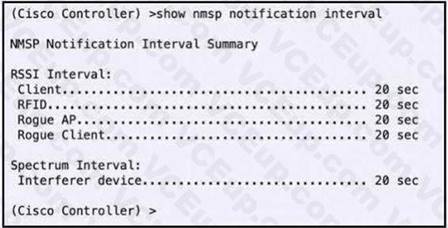

Refer to the exhibit.

An administrator notices slower location updates from the controller to Cisco CMX. Which command must be configured to get an update every 5 seconds for rogues?

config location notification interval rssi rogues 5

config nmsp notification interval rssi rogues 5

config subscription notification interval rssi rogues 5

config cmx notification interval rssi rogues 5

Show Answer Comment (0)

Question 166

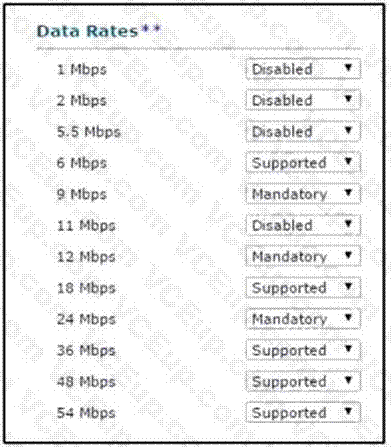

Refer to the exhibit.

An engineer is configuring a Cisco wireless LAN controller and needs wireless multicast to use the 54Mbps rates. Which action meets this requirement?

Change the 24 Mpbs to Supported.

Set all data rates below 54 Mbps to Supported.

Change the 54 Mpbs to Mandatory.

Set all data rates below 54 Mbps to Disable.

Show Answer Comment (0)

Question 167

A network administrator managing a Cisco Catalyst 9800 WLC must place all iOS connected devices to the guest SSID on VLAN 101. The rest of the clients must connect on VLAN 102 distribute load across subnets. To achieve this configuration, the administrator configures a local policy on the WLC.

Which two configurations are required? (Choose two.)

Assign a policy map under global security policy settings.

Add local profiling policy under global security policy settings.

Create a service template.

Allow HTTP and DHCP profiling under policy map.

Enable device classification on global wireless settings.

Show Answer Comment (0)

Question 168

An engineer is planning an image upgrade of the WLC, and hundreds of APs are spread across remote sites with limited WAN bandwidth. The engineer must minimize the WAN utilization for this upgrade. Which approach must be used for the AP image upgrade?

Predownload the new code to the APs.

Use the Smart AP image upgrade feature.

Allow the APs to download their code after WLC reboot.

Execute parallel TFTP code upgrade on the APs via SSH.

Show Answer Comment (0)

Question 169

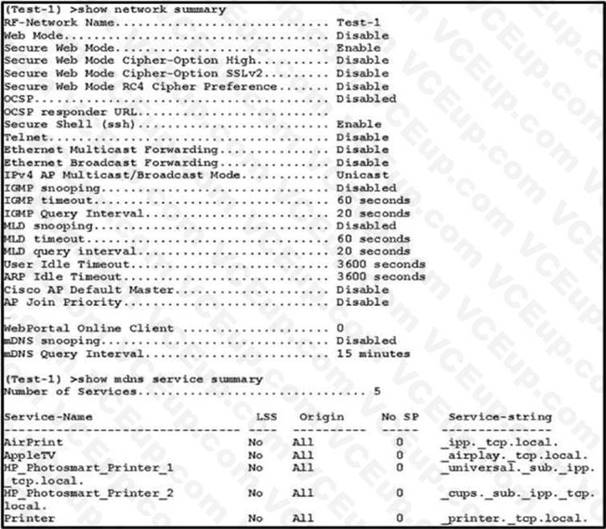

Refer to the exhibit.

An engineer configured a BYOD policy that allows for printing on the WLAN using Bonjour services.

However, the engineer cannot get printing to work. The WLC firmware is 8.x. What must be implemented on the controller?

Enable mDNS and IGMP snooping.

Activate location-specific services.

Configure Secure Web Mode Cipher-Option SSLv2.

Increase the IGMP Query Interval value

Show Answer Comment (0)

Question 170

A network administrator just completed the basic implementation of Cisco CMX and tries to implement location tracking. The administrator is having trouble establishing connectivity between one of the WLCs through NMSP. What must be configured to establish this connectivity? (Choose two.)

Add permanent licenses on the Cisco CMX server.

Allow on the firewall port 16113 between Cisco CMX and the WLC.

Enable NMSP on the WLC.

Reboot Cisco CMX after adding the WLC for the first time.

Add to the WLC the MAC address and SSC key for the Cisco CMX server.

Show Answer Comment (0)
