Cisco 300-430 Practice Test - Questions Answers, Page 19

Question list

List of questions

Question 181

(0)

Refer to the exhibit. An ACL is configured to restrict access for BYOD clients. The ACL must redirect devices to the guest portal. To which two devices on the local network must the ACL allow acc

Question 182

(0)

A wireless administrator receives this information to complete a CMX deployment in high availability by using version 10.6 to gather analytics. IP address of the primary server IP address of the s

Question 183

(0)

Which role does an engineer configure for administrative access to the wireless infrastructure, using Cisco ISE, to allow configuration of the WLC syslog configuration?

Question 184

(0)

Refer to the exhibit. An engineer is troubleshooting a client connectivity issue. The client is in the RUN state, and no traffic is passed after authenticating by using Cisco ISE. Which action re

Question 185

(0)

An engineer is deploying a virtual MSE. The network has 3000 APs and needs 7000 IPS licenses. To which size server does the engineer scale it?

Question 186

(0)

The marketing department creates a promotion video for the branch store. Only interested hosts must receive the video over wireless multicast. What allows this feature?

Question 187

(0)

The security learn is concerned about the access to all network devices, including the Cisco WLC. To permit only the admin subnet to have access to management, a CPU ACL is created and applied. How

Question 188

(0)

A customer is deploying local web authentication. Which software application must be implemented on Cisco ISE to utilize as a directory service?

Question 189

(0)

An engineer must achieve the highest level of location accuracy possible for a new mobile application. Which technology must be implemented for this use case?

Question 190

(0)

Which two configurations are applied on the WLC to enable multicast, check multicast stream subscriptions, and stream content only to subscribed clients? (Choose two)

Related questions

A network engineer needs to configure multicast in the network. The implementation will use multiple multicast groups and PIM routers. Which address provides automatic discovery of the best RP for each multicast group?

Refer to the exhibit. A network architect configured the Cisco Catalyst 9800 Series Controller to find out information on client types in the wireless network. RADIUS profiling is enabled so that the controller forwards the information about clients to a Cisco ISE server through vendor-specific RADIUS attributes. The ISE server is not profiling any data from the controller. Which configuration must be added in the blank in the code to accomplish the profiling on the Cisco 9800 Series controller?

DRAG DROP A wireless engineer wants to schedule monthly security reports in Cisco Prime infrastructure. Drag and drop the report the from the left onto the expected results when the report is generated on the right.

A wireless engineer must implement a corporate wireless network for a large company in the most efficient way possible. The wireless network must support 32 VLANs for 300 employees in different departments. Which solution must the engineer choose?

Refer to the exhibit. An engineer needs to configure location services in an office. The requirement is to use FastLocate and achieve higher locations refresh rates. Which location-based technique should be implemented?

Which two restrictions are in place with regards to configuring mDNS? (Choose two.)

A customer is deploying local web authentication. Which software application must be implemented on Cisco ISE to utilize as a directory service?

An IT administrator deployed an OEAP to the home of a remote user, but the OEAP cannot reach the WLC. Which two configuration settings must be completed before an OEAP is deployed successfully? (Choose two.)

A wireless network has been implemented to enable multicast video to be streamed reliably over the wireless link to the wireless users. After a client reports that the video is unable to stream, the administrator determines that the client is connecting at a data rate of 12 Mbps and is trying to stream to a valid multicast address on the network. Which two actions must be applied? (Choose two.)

What two actions must be taken by an engineer configuring wireless Identity-Based Networking for a WLAN to enable VLAN tagging? (Choose two.)

Question 181

Refer to the exhibit.

An ACL is configured to restrict access for BYOD clients. The ACL must redirect devices to the guest portal. To which two devices on the local network must the ACL allow access other than the DHCP server? (Choose two.)

RADIUS server

DNS server

Cisco ISE

SNMP server

WLC

Show Answer Comment (0)

Question 182

A wireless administrator receives this information to complete a CMX deployment in high availability by using version 10.6 to gather analytics.

IP address of the primary server

IP address of the secondary server failover mode to be configured as automatic root password of the secondary server email ID for NOC notifications Enabling high availability fails when these parameters are used. Which action resolves the issue?

Insert the cmxadmin password of the secondary server.

Use IP protocol 4242 for the controller to reach the CMX server.

Place primary and secondary servers in different subnets.

Enable the virtual IP address of the primary server.

Show Answer Comment (0)

Question 183

Which role does an engineer configure for administrative access to the wireless infrastructure, using Cisco ISE, to allow configuration of the WLC syslog configuration?

MANAGEMENT

SECURITY

CONTROLLER

WIRELESS

Show Answer Comment (0)

Question 184

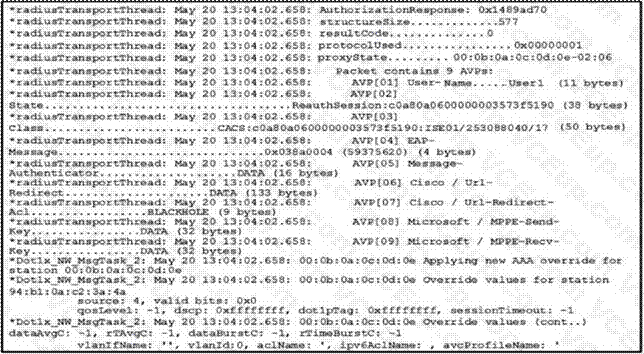

Refer to the exhibit.

An engineer is troubleshooting a client connectivity issue. The client is in the RUN state, and no traffic is passed after authenticating by using Cisco ISE. Which action resolves the problem?

Configure a different client VLAN after authentication.

Disable the ACL that prevents traffic from being allowed.

Apply a lower WMM QoS.

Enable rate-limiting to the client.

Show Answer Comment (0)

Question 185

An engineer is deploying a virtual MSE. The network has 3000 APs and needs 7000 IPS licenses.

To which size server does the engineer scale it?

virtual

standard

high end

low end

Show Answer Comment (0)

Question 186

The marketing department creates a promotion video for the branch store. Only interested hosts must receive the video over wireless multicast. What allows this feature?

TPC

DCA

WMM

WMF

Show Answer Comment (0)

Question 187

The security learn is concerned about the access to all network devices, including the Cisco WLC. To permit only the admin subnet to have access to management, a CPU ACL is created and applied.

However, guest users cannot get to the web portal. What must be configured to permit only admins to have access?

The guest portal must be configured on the CPU ACLs on the Cisco WLC.

Access to Cisco ISE must be allowed on the pre authentication ACL.

Management traffic from the guest network must be configured on the ACL rules. D. Traffic toward the virtual interface must be permitted.

Show Answer Comment (0)

Question 188

A customer is deploying local web authentication. Which software application must be implemented on Cisco ISE to utilize as a directory service?

Solaris Directory Service

LDAP

SAML

Novell eDirectory

Show Answer Comment (0)

Question 189

An engineer must achieve the highest level of location accuracy possible for a new mobile application. Which technology must be implemented for this use case?

Time Difference of Arrival

Bluetooth Low Energy

RSS lateration

ToA lateration

Show Answer Comment (0)

Question 190

Which two configurations are applied on the WLC to enable multicast, check multicast stream subscriptions, and stream content only to subscribed clients? (Choose two)

Enable IGMP snooping

Set the IGMP timeout to 180 seconds

Enable broadcast forwarding

Enable 802.3x flow control mode.

Set the AP multicast to 238.255.255.255

Show Answer Comment (0)

Total 216 questions
