Remote office users are having performance issues with a virtual hosted on the F5 LTM. The LTM Specialist reviews the configuration for the virtual server and determine that some settings are set with default profiles.
Which profile should the LTM Specialist enable to improve virtual server performance?
An LTM Specialist needs to configure a virtual server with the requirements displayed below.
Application is currently an internal HTTP application
Encrypted external user access
Links are hard for siteA example.com and need to rewritten to siteB.Example.com
Which profiles must the LTM Specialist use to provide the proper functionality?
AN LTM Specialist receives reports that an external company application is having reliability issues. The F5 Administrator finds the following in /vat/log/ltm file.
The LTM Specialist determines that the F5 LTM device is entering into Aggressive Mode Adaptive Reaping, which is causing the site reliability issues.
What is the most likely reason that the LTM device has entered into Aggressive Mode Adaptive Reaping?
An LTM Specialist upgrades the switching infrastructure and the backend servers on the LAN segments.
The LTM Specialist notices a 20% memory usage increase on the BIG-IP device while handling the same number of concurrent connections.
A comparison of statistics pre-upgrade and post-upgrade shows a significant reduction on the following:
-RTT between the BIG-IP device and the backend servers
-Packet drops in the switch
Time to First Byte (TTFB)
The LTM Specialist is concerned with the scalability of the number of concurrent connections with the new memory usage.
Which setting should be changed to reduce the memory usage on the BIG-IP device?
An LTM Specialist needs to use the tmsh command to create a pool named http_pool with member
10.10.101:80 on an LTM device.
Which expression should the LTM Specialist use?
The network team introduces a new subnet 10.10.22.0/24 to the network. The route needs to be configured on the F5 device to access this network via the 30.30.30.158 gateway.
How should the LTM Specialist configure this route?
An LTM Specialist is the administrator of an HA pair that contains two BIG IP units and one floating traffic group (TG1). A new project requires the creation of 30 virtual servers. The Specialist decides to create a new floating traffic group (TG2) to handle this requirement. Objects for this project created by the BIG-IP Managers must appears in the correct traffic group.
Which configuration should the LTM Specialist use to meet the requirement?
Refer to the exhibit.
The pool shown is configured with four pool members in a variety of states. The application is receiving a large number of request. The LTM Specialist needs to make changes to make sure that all members receive the same levels of traffic.
Which changes need to be made?
A new iRule needs to be tested. The LTM Specialist needs to measure page load times and monitor potential changes in memory usage A load test is scheduled.
Which two features should the LTM Specialist use to monitor these requirements? (Choose two.)

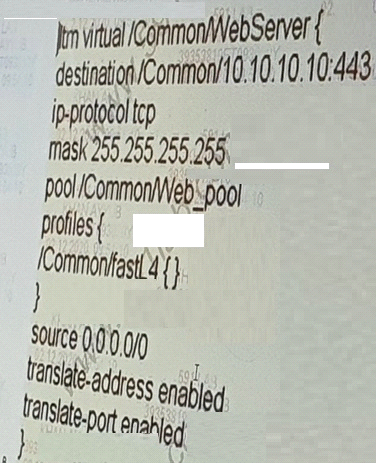

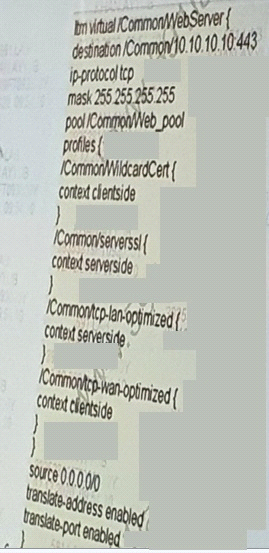

A web developer needs a virtual server configured for an application.
The application details are as follows:
Application is accessed on port 443.
The application traffic is encrypted by the server.
HTTP is not being used. No data manipulation is necessary.
Throughput is critical.
NO connections are terminated on the LTM.
Which configuration provides the best performance?
A)
B)
C)
D)
