set payload {CACHE :: payload} } Which two profiles should be used on the virtual server? (Choose two.)
An SSL application is being migrated to the LTM device. Both encrypted and unencrypted traffic are accepted by the server. The virtual server configuration is as follows: Which LTM device profile should be used on the LTM device to reduce the CPU load on the current?
An LTM Specialist configures a new HTTPS virtual server that contains a valid example.com ssl certificate. The LTM Special receives an error in the browser when connecting. What must be added to the SSL Client profile to fix this issue?
An LTM Specialist is configuring a client profile to offload processing a new application Company policy requires that clients can resume session for up to 30 minutes, but must renegotiate a new session after that. Which setting should the LTM Specialist change to satisfy this requirement?
An application is expected to maintain more than 100,000 concurrent TCP connections to a single pool member. What is an appropriate SNAT configuration in this situation?
An organization's development team creates an application to put behind the F5 LTM device. The application can be quite load intensive at first, and then evens out over time. The team's load balancing method needs to select a pool after taking into account the pool member's response over the time to avoid landing on a busy pool member. Which of the following load balancing methods meets this requirement?
A pool has four members. Ail of the servers have been designed and configured with the same application. Each client's request can significantly the performance of the servers. Which load balancing method should the LTM Specialist use to maintain a relatively even load across all servers?
An TLM Specialist needs to configure a virtual server to terminate SSL connection on the LTM device. Cryptographic information must be re-authorized for SSL sessions that remain open for longer than 30 seconds. Which settings should the LTM Specialist configure in the client SSL profile?
A web application is configured as follows: What should be modified to set a maximum request limit?
An LTM Specialist is configuring a virtual server with an IP address. Which configuration is unsupported?

Question 141

Report
Export
Collapse

An LTM Specialist creates an Analytics wide to show the type of browsers used to access a certain application. However, the generated statistics only sum up all transaction for that application under one item called ' Aggregated.''

What should the LTM Specialist do to resolve this problem?

A.
Verify that the Analytics profile is assigned to the applications virtual server.
A.
Verify that the Analytics profile is assigned to the applications virtual server.
Answers
B.
Make sure ''User Agent'' is selected in the Analytics profile.
B.
Make sure ''User Agent'' is selected in the Analytics profile.
Answers
C.
Drill down into the stats to show the User Agents correlated in the Aggregated group.
C.
Drill down into the stats to show the User Agents correlated in the Aggregated group.
Answers
D.
Make sure ''User Sessions'' is selected in the Analytics profile
D.
Make sure ''User Sessions'' is selected in the Analytics profile
Answers
Suggested answer: B

Question 142

Report
Export
Collapse

An LTM device is configure with the wildcard virtual servers displayed below.

A client connection is made to 172.24.31.14:443.

A.
VS_172_24_1_WILDCARD
A.
VS_172_24_1_WILDCARD
Answers
B.
VS_HTTP_WILDCARD
B.
VS_HTTP_WILDCARD
Answers
C.
VS_172_24_WILDCARD
C.
VS_172_24_WILDCARD
Answers
D.
VS_HTTPS_WILDCARD
D.
VS_HTTPS_WILDCARD
Answers
Suggested answer: C

Explanation:

Match the network segment first and then port.


Question 143

Report
Export
Collapse

An LTM Specialist to configure a backend server to be disabled it takes longer than 30 seconds to respond to a request.

Which values should the LTM Specialist enter for interval and timeout?

A.
Interval 10, timeout 30
A.
Interval 10, timeout 30
Answers
B.
Interval 10, timeout 31
B.
Interval 10, timeout 31
Answers
C.
Interval 30, timeout 30
C.
Interval 30, timeout 30
Answers
D.
Interval 30, timeout 91 The official recommendation is that timeout 3 times the interval value +1.
D.
Interval 30, timeout 91 The official recommendation is that timeout 3 times the interval value +1.
Answers
Suggested answer: B

Question 144

Report
Export
Collapse

The network team has recently added a new syslog server with IP address 10.1.1.1.

Which command adds the new syslog entry on the F5 LTM device?

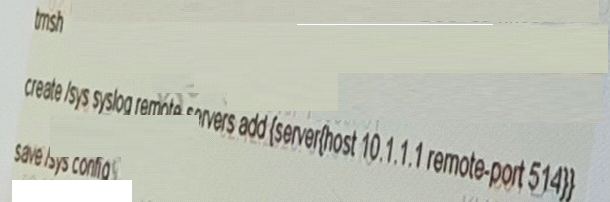

A)

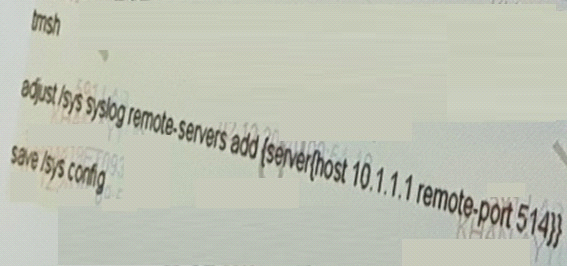

B)

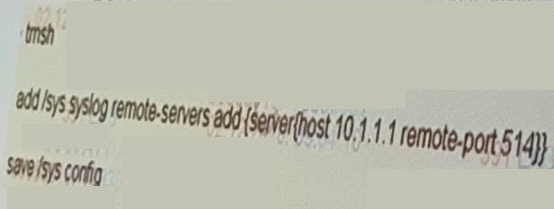

C)

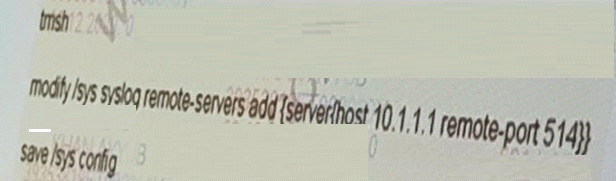

D)

A.
Option A
A.
Option A
Answers
B.
Option B
B.
Option B
Answers
C.
Option C
C.
Option C
Answers
D.
Option D
D.
Option D
Answers
Suggested answer: C

Question 145

Report
Export
Collapse

An LTM is configure an application that is separated into several subdomains across multiple virtual servers. Many of these subdomains require encryption and could be accessed by anyone on the internet. The configuration must NOT result in SSL warnings to end users.

How should the LTM Specialist configure the SSL profiles for these virtual servers?

A.
Obtain an SSL certificate for each subdomain, make a ServerSSL profile for each subdomain, and apply to the related SSL Virtual Server.
A.
Obtain an SSL certificate for each subdomain, make a ServerSSL profile for each subdomain, and apply to the related SSL Virtual Server.
Answers
B.
Obtain a wildcard certificate, create one ClientSSL profile and apply to all SSL Virtual Servers
B.
Obtain a wildcard certificate, create one ClientSSL profile and apply to all SSL Virtual Servers
Answers
C.
Create a self-singed SSL certificate for each subdomain make a ClientSSL profile for each subdomain, and apply to the related SSL Virtual server
C.
Create a self-singed SSL certificate for each subdomain make a ClientSSL profile for each subdomain, and apply to the related SSL Virtual server
Answers
D.
Create a self-singed SSL certificate for each subdomain make a Client profile for each SSL Virtual Server
D.
Create a self-singed SSL certificate for each subdomain make a Client profile for each SSL Virtual Server
Answers
Suggested answer: B

Explanation:

The topic is that there are multiple domain names in the business, and HTTPS services are provided to the internet, and users cannot be allowed to generate SSL alarms. The require client ssl and use CA certificate instead of self-singed certificate. And multiple domain names, you can use wildcard certificates.

Question 146

Report
Export
Collapse

An LTM Specialist needs to force only FTP traffic, sourced from subnet 10.10.10.0/24 to virtual server 10.10.20.1 to the new FTP1 server. The following virtual servers are configured on the LTM device:

Traffic sourced from 10.10.10/24 must use the specific pool member for load balancing.

Which configuration change is needed to meet the requirements?

A.
Create a new virtual server for traffic sourced from 10.10.10.0/24 on port 80 that is destined to 10.10.20.1/32, and create a new pool has only the pool member FTP1 defined.
A.
Create a new virtual server for traffic sourced from 10.10.10.0/24 on port 80 that is destined to 10.10.20.1/32, and create a new pool has only the pool member FTP1 defined.
Answers
B.
Add FTP1 to the pool assigned to the MyVS4 virtual server, and remove all other pool members from the pool.
B.
Add FTP1 to the pool assigned to the MyVS4 virtual server, and remove all other pool members from the pool.
Answers
C.
Create a new virtual server for traffic sourced from 10.10.10.0/24 on traffic sourced from 10.10.10./24 on port 21 that is destined to 10.10.20.1/32, and create a new pool that has only the pool member FTP1 defined.
C.
Create a new virtual server for traffic sourced from 10.10.10.0/24 on traffic sourced from 10.10.10./24 on port 21 that is destined to 10.10.20.1/32, and create a new pool that has only the pool member FTP1 defined.
Answers
D.
Add FTP1 to the pool assigned to the MyVS2 virtual server, and remove all other pool member from the pool.
D.
Add FTP1 to the pool assigned to the MyVS2 virtual server, and remove all other pool member from the pool.
Answers
Suggested answer: D

Explanation:

According to the VS matching order, first match the destination host IP, then match the destination port and finally match the source network segment. In the current network configuration, 10.10.10./24 access to 10.10.10.20.1 will hit MyVS2. If there is no error in the title, subnet 10.10.10.0 to virtual

Server 10.10.20.1 to the FTP1 server,'' Is to distribute all traffic from 10.10.10.1 to FTP1, then D That's right.

Question 147

Report
Export
Collapse

An LTM Specialist needs to upgrade all guests on a Viprion eight CMP guests.

What is the maximum number of guests that the LTM Specialist should upgrade at once?

A.
Eight
A.
Eight
Answers
B.
One
B.
One
Answers
C.
TWO
C.
TWO
Answers
D.
Four
D.
Four
Answers
Suggested answer: B

Explanation:

Explanation Each guest is independent, just like hardware upgrades. Can only upgrade one by one, there is no way to upgrade at the same time.
