An LTM Specialist needs to deploy a virtual server that will load balance traffic targeting https://register.example.com to a set of three web servers. Persistence needs to be ensured. No persistence mirroring is allowed SSL offloading is required.
https://register.example.comvrobots.txt A fourth web server with fewer resources will be used to handle requests from engine bots to https://register.example.comvrobots.txt by an iRule. The (Rule will use the HTTP_REQUEST event.
What are the required profile and persistence settings to implement this?
An LTM device receives a response string containing 'error'
Which monitor type and parameter will mark the HTTP server as down?
A custom TCP application using a single server is being migrated to the LTM device. A server is being added to the pool. The application is known to violate the TCP protocol RFC. The application currently works without error from a user perspective.
Which virtual server type is appropriate in this situation?
Four members in a server pool have similar hardware platforms. An LTM Specialist needs the load balancing method that can select the server with the fewest entries in the persistence table.
Which load balancing method should the LTM Specialist use?
Refer to the exhibit.

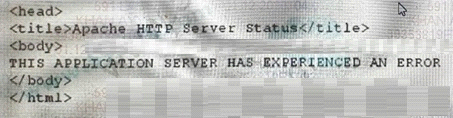

The http monitor is applied to a pool. All members are enabled. One server responds as follows.
What is the resulting status of this poo! member?
An application is making heavy use of a large, high-quality JPEG image file. An LTM Specialist needs to enhance page load times without increasing server load.
Which profile should be applied to the virtual server to perform this task?
The picture belongs to static content, you can configure static content cache in FS to meet this demand
An LTM Specialist must configure session persistence for a highly available, highly utilized web-based application.
* The following requirements are provided:
* http proxy setup for security persistence information available to the HA peer in case of failover
The LTM Specialist needs to minimize additional burden on the LTM device to the greatest extent possible.
Which persistence profile should be used?
An LTM specialist needs to create a new account with the admin role called 'newadmin' and access to all partitions.
Which tmsh command should be executed?
Refer to the exhibit.
The LTM devices LTM3 and LTM2 have four Traffic Groups defined with approximately the sar of failover objects defined in each group.
- Traffic Groups A and C have Default Device set to LTM1
- Traffic Groups Band D have Default Device set to LTM2.
- Traffic Groups B and C do NOT have Auto Failback enabled. Traffic Groups A and D have Auto Failback enabled with a timeout value of 60 seconds.
- Traffic Groups A and D have Auto Fallback enabled with a timeout value of 60 seconds.
Both LTM devices are healthy and able to pass traffic for any Traffic Group.
LTM1 loses connectivity on interface 1.4. The LTM Specialists notified 60 seconds after the interface goes down.
What is the state of the Traffic Groups on each LTM device?
An LTM Specialist has detected that a brute force login attack is occurring against the SSH service via a BIG-IP management interface. Login attempts are occurring from many IPs within the internal company network. BIG-IP SSH access restrictions are in place as follows:
The LTM Specialist has determined that SSH access should only occur from the 192.168.1.0/24 and 172.16.254.0/23 networks.
Which tmsh command should the LTM Specialist use to permit access from the desired networks only?
