Nokia 4A0-104 Practice Test - Questions Answers, Page 2

Question list

List of questions

Question 11

(0)

Which of the following commands is used to enable an Epipe service?

Question 12

(0)

Epipe services do no consume any MAC resources because MAC learning is disabled.

Question 13

(0)

Click on the exhibit button below. Is a routing policy required on PE1 to advertise a CE1's system interface to PE2?

Question 14

(0)

Which of the following statements is NOT a valid reason to use MP-BGP as a routing protocol to transport VPRN routes?

Question 15

(0)

In a Layer 2 VPN service, the FCS is stripped when a customer packet arrives at the ingress PE and regenerated on egress.

Question 16

(0)

By default, what does a PE do to support VPLS services for different customers? (Choose 2)

Question 17

(0)

What is the minimum Ethernet physical network MTU required for a Layer 2 service on a GRE encapsulated SDP with a service MTU of 1514?

Question 18

(0)

A network technician needs to set up a local mirror to replicate traffic for examination with a protocol analyzer. The analyzer is on port 1/1/4 of his service router. Which of the following configu

Question 19

(0)

Which of the following statements best describes a route target?

Question 20

(0)

Click on the exhibit button below. If CE1 and PE1 use BGP to exchange routing information and CE2 and PE2 use static routing to forward traffic to and from the VPRN, which of the following statem

Question 11

Which of the following commands is used to enable an Epipe service?

config>service# epipe service-id enable

config>service# vpws service-id enable

config>service# service-id no shutdown

config>port# port-id no shutdown

config>service# epipe service-id no shutdown

Show Answer Comment (0)

Question 12

Epipe services do no consume any MAC resources because MAC learning is disabled.

TRUE

FALSE

Show Answer Comment (0)

Question 13

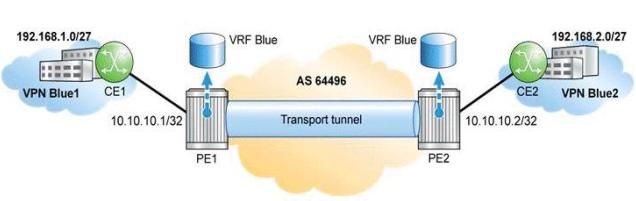

Click on the exhibit button below.

Is a routing policy required on PE1 to advertise a CE1's system interface to PE2?

Yes. A routing policy is required to advertise routes between PE routers in a VPRN

No. A routing policy is not required; the default behavior on the 7750 SR is to advertise all VPRN routes between PE routers.

A routing policy is required only when BGP is used as the PE-CE routing protocol, as shown in the exhibit.

A CE1 system interface can not be advertised to PE2 since the CE routers are not aware of the VPRN.

Show Answer Comment (0)

Question 14

Which of the following statements is NOT a valid reason to use MP-BGP as a routing protocol to transport VPRN routes?

The number of VPRN routes can become very large. MP-BGP can support a very large number of routes.

MP-BGP can carry routing information for a number of different address families.

MP-BGP is designed to exchange information between routers that are not directly connected. This feature keeps VPRN routing information out of P-routers.

MP-BGP can carry additional information attached to a route as an optional BGP attribute.

All of the above statements are valid reasons for using MP-BGP as a VPRN routing protocol.

Show Answer Comment (0)

Question 15

In a Layer 2 VPN service, the FCS is stripped when a customer packet arrives at the ingress PE and regenerated on egress.

TRUE

FALSE

Show Answer Comment (0)

Question 16

By default, what does a PE do to support VPLS services for different customers? (Choose 2)

MAC learning.

Maintain a different Forwarding Data Base for each service

ARP mediation.

Maintain a different Routing Information Base for each service.

Show Answer Comment (0)

Question 17

What is the minimum Ethernet physical network MTU required for a Layer 2 service on a GRE encapsulated SDP with a service MTU of 1514?

1514

1526

1548

1556

1536

Show Answer Comment (0)

A network technician needs to set up a local mirror to replicate traffic for examination with a protocol analyzer. The analyzer is on port 1/1/4 of his service router. Which of the following configuration steps is required?

A mirror source listing port 1/1/4.

A mirror destination listing port 1/1/4.

A remote source command indicating the IP address of the service router he is configuring a local mirror on.

Verification that his IP/MPLS infrastructure is in place

None of the above.

Show Answer Comment (0)

Question 19

Which of the following statements best describes a route target?

A route target is a BGP extended community used to identify the VRF table for a prefix at the receiving PE

A route target is a mechanism from which VPRN controls the distribution of VPN routing information.

Route target attributes are earned in a MP-BGP as attributes of the route.

A route target is used by the PE router to identify the VRF that a VPN-lPv4 prefix is associated with.

All of the above statements describe a route target

None of the above statements describe a route target

Show Answer Comment (0)

Question 20

Click on the exhibit button below.

If CE1 and PE1 use BGP to exchange routing information and CE2 and PE2 use static routing to forward traffic to and from the VPRN, which of the following statements is considered TRUE?

An export policy is required on PE1 to advertise routes to CE1.

An export policy is not required on PE2 to advertise routes to CE2.

An export policy is not required to advertise routes between PE routers

All of the above statements are true

All of the above statements are false

Show Answer Comment (0)

Total 290 questions
