Home / Nokia / 4A0-104

Nokia 4A0-104 Practice Test - Questions Answers, Page 7

Question list

List of questions

Question 61

(0)

Which of the following best completes the sentence: 'An Internet Enhanced Service is a_____________ service where the CE communicates with a ________________interface to send and receive traffic.

Question 62

(0)

Which of the following statements is TRUE?

Question 63

(0)

What are the two major differences between configuring an IES service and configuring VPWS or VPLS services? (Choose 2)

Question 64

(0)

An ES service can have both MAC and IP filters applied to it.

Question 65

(0)

What can the sdp-ping command be used for? (Choose 2)

Question 66

(0)

Which of the following statements are TRUE regarding sdp-ping? (Choose 3)

Question 67

(0)

Which OAM command can be used to verify the correct and consistent provisioning of a service between two service end points?

Question 68

(0)

Which of the following items can NOT be used as a mirror source?

Question 69

(0)

A technician sitting in a Network Operations Center would like to set up a remote mirror on an Nokia 7750 Service Router to examine some data traffic ingressing a port at a remote site. Which of the

Question 70

(0)

Click on the exhibit button below. Assuming the customer only needs to monitor traffic from PE3 to the customer site, what three items are missing from PE3's configuration? (Assume that the IP/MP

Question 61

Which of the following best completes the sentence: 'An Internet Enhanced Service is a_____________ service where the CE communicates with a ________________interface to send and receive traffic.

distributed/virtual

local/sub

routed/Layer 3

distributed/routed

Layer 2/loopback

Show Answer Comment (0)

Question 62

Which of the following statements is TRUE?

An OSPF adjacency can be established on an IES interface.

IES allows provider MP-BGP sessions to be extended to customers.

An IES service must use static routes in order to communicate with customer networks.

An IES interface supports OSPF and IS-IS in passive mode only.

Show Answer Comment (0)

Question 63

What are the two major differences between configuring an IES service and configuring VPWS or VPLS services? (Choose 2)

IES does not support QoS.

IES has a configurable IP-MTU

A virtual route table must be configured for an IES service.

An IES interface has an IP address assigned to it.

Show Answer Comment (0)

Question 64

An ES service can have both MAC and IP filters applied to it.

TRUE

FALSE

Show Answer Comment (0)

Question 65

What can the sdp-ping command be used for? (Choose 2)

To test the ability of reaching the far-end IP address of an SDP within the SDP encapsulation

To determine the path MTU to the far-end IP address over an SDP.

To determine the service MTU of the service using an SDP.

To determine the presence of hosts using the service

Show Answer Comment (0)

Question 66

Which of the following statements are TRUE regarding sdp-ping? (Choose 3)

Provides a mechanism to determine the hops an SDP traverses.

Provides in-band uni-directional connectivity tests.

Provides in-band round-trip connectivity tests.

Tests ability of reaching the far-end IP address of an SDP ID within the SDP encapsulation.

Provides information regarding the exact MTU supported between service ingress and service termination.

Show Answer Comment (0)

Question 67

Which OAM command can be used to verify the correct and consistent provisioning of a service between two service end points?

sdp-ping

Isp-ping

sap-ping

svc-ping

Show Answer Comment (0)

Question 68

Which of the following items can NOT be used as a mirror source?

A physical port.

ASAP.

Ingress MPLS frames with a specific label.

Entries that match an IP filter.

Entries that match a MAC filter.

All of the above can be used as a mirror source.

Show Answer Comment (0)

A technician sitting in a Network Operations Center would like to set up a remote mirror on an Nokia 7750 Service Router to examine some data traffic ingressing a port at a remote site. Which of the following are required? (Choose 2)

A mirror destination on the local and remote Nokia Service Router,

A mirror source on the local and remote Nokia Service Router.

A mirror source with the remote source specified on the remote Nokia Service Router.

A mirror source with the remote source specified on the local Nokia Service Router.

An SDP between the local and remote Nokia Service Routers.

Show Answer Comment (0)

Question 70

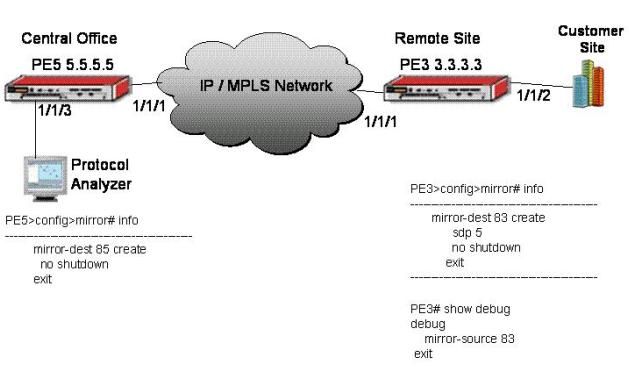

Click on the exhibit button below.

Assuming the customer only needs to monitor traffic from PE3 to the customer site, what three items are missing from PE3's configuration? (Assume that the IP/MPLS network structure between the local and remote PEsis in place.)

The mirror destination configuration on PE5 is missing the 'remote-source' command,

The mirror destination on PE3 needs a 'remote-source' command.

The mirror service IDs on the local and remote destinations must match.

The mirror source on PE3 needs a 'remote-source' command.

The mirror source command on the remote PE3 needs a command that tells it to monitor port 1/1/2.

Show Answer Comment (0)

Total 290 questions
