CompTIA CV0-004 Practice Test - Questions Answers, Page 20

LTS stands for Long Term Support, and it is a term that refers to a version of an operating system that receives updates and security patches for a longer period of time than other versions. LTS versions are usually more stable and reliable than other versions, and they are suitable for users who want to avoid frequent changes or compatibility issues. By choosing LTS versions for the VMs that are hosted in a cloud environment, the systems administrator can ensure that the VMs receive updates for as long as possible, and benefit from the enhanced security and performance of the operating system.

To redirect the traffic from HTTP to HTTPS, the web server configuration should be modified to include a rule that forces the HTTP requests to be redirected to HTTPS. This can be done by using the web server’s configuration file or a .htaccess file. The exact syntax may vary depending on the web server software, but the general idea is to use a rewrite rule that matches the HTTP protocol and changes it to HTTPS. For example, on Apache web server, the following code can be added to the .htaccess file:

RewriteEngine On

RewriteCond %{HTTPS} off

RewriteRule ^(.*)$ https://%{HTTP_HOST}%{REQUEST_URI} [L,R=301]

This code will check if the HTTPS is off, and if so, it will rewrite the URL to use HTTPS and redirect the client with a 301 status code, which means permanent redirection. This way, the clients will always use HTTPS to access the web application, and the links generated from the web application will be encrypted.

User account access (A) is not relevant to the redirection of HTTP to HTTPS, as it only controls who can access the web application. Programming code (B) may be used to generate the links with HTTPS, but it will not redirect the existing HTTP requests to HTTPS. Load balancer setting (D) may also be used to redirect the traffic to HTTPS, but it is not the most efficient or secure way, as it will add an extra layer of processing and expose the HTTP traffic to the load alancer. Therefore, web server configuration © is the best option to redirect the traffic to HTTPS.

Reference: The Official CompTIA Cloud+ Student Guide (Exam CV0-003), Chapter 4: Cloud Security,

A misconfiguration in the firewall is the most likely cause of the issue. A firewall is a security device or service that controls the incoming and outgoing network traffic based on predefined rules. A firewall can help protect the cloud-hosted web application and the managed database from unauthorized or malicious access. However, if the firewall rules are not configured properly, they can also block the legitimate communication between the web application and the database. For example, if the firewall rules deny the port or protocol that the web application uses to connect to the database, the web application will not be able to receive data from the database. To fix this issue,

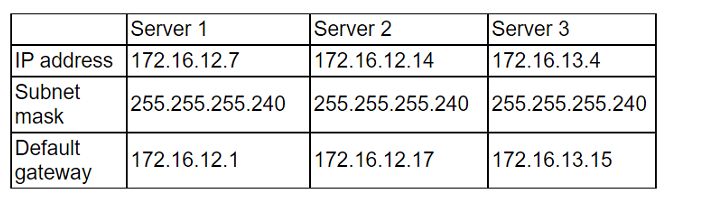

To prevent the servers from being on the same network and communicating with each other, the administrator should change the IP address of Server 1 to 172.16.12.2. This IP address is outside the subnet defined by the subnet mask 255.255.255.240, which would place Server 1 on a different subnet, preventing direct communication without routing.

Reference: CompTIA Cloud+ Study Guide (Exam CV0-004) by Todd Montgomery and Stephen Olson

The most likely reason for deploying new instances of a website in the Europe region, in addition to the ones hosted in North America, is to reduce latency for users located in Europe. By having the website's resources closer to the end-users, the data has a shorter distance to travel, resulting in faster load times and better performance.

Reference: CompTIA Cloud+ Study Guide (Exam CV0-004) by Todd Montgomery and Stephen Olson

The issue is with Web app 1 (Finance application).

From the WAF logs, we can see that requests to https://webapp1.comptia.org/FIN/login.html are being blocked (Rule ID 1006). The rule is configured to block access to the finance application's login page. This corresponds to the reported issue of the web-based login prompt not loading.

To remediate the issue, the WAF configuration for Rule ID 1006 should be changed from 'Block' to 'Allow'. This will enable the web-based login prompt to load for the client.

Additionally, the client app configuration indicates that the client laptop (IP 192.168.10.142) is trying to access the service, and the WAF logs show that requests from this IP are being blocked due to the current rule set. Changing the action for Rule ID 1006 will also ensure that legitimate attempts to access the login page from this IP are not blocked.

Steps for remediation:

Go to the WAF configuration.

Find Rule ID 1006 for the Finance application 1.

Change the action from 'Block' to 'Allow'.

Save the changes.

Web application firewall (WAF) configurations typically include rules that define which traffic should be allowed or blocked. Blocking legitimate traffic to login pages can prevent users from accessing the application, which seems to be the case here.

Client application configurations and WAF logs provide valuable insights into the source of the traffic and the rules that are affecting it. It's important to ensure that the rules align with the intended access policies for the application.

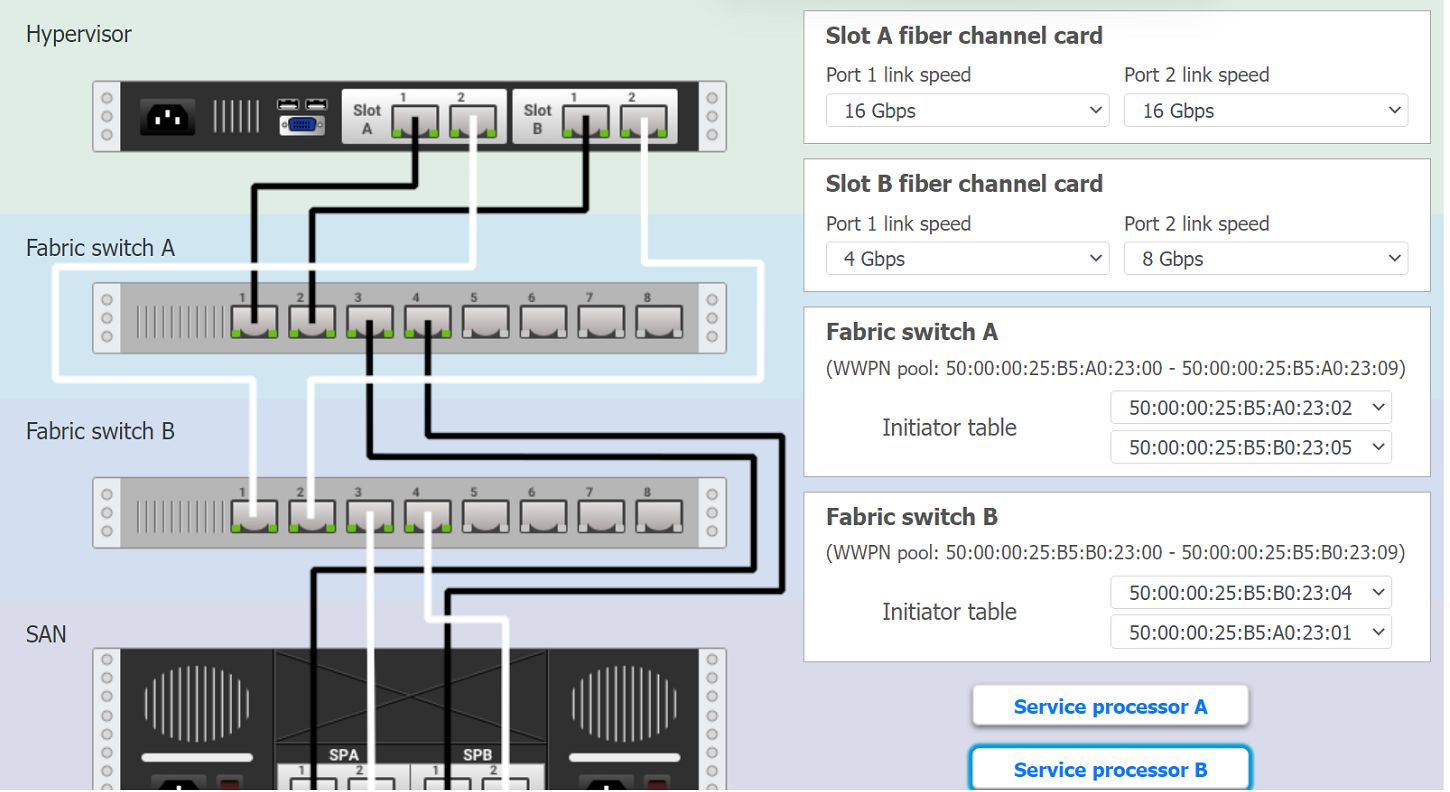

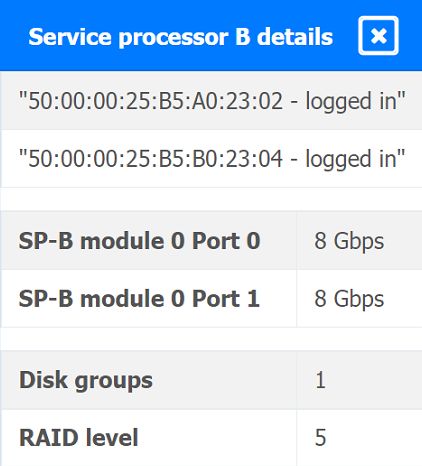

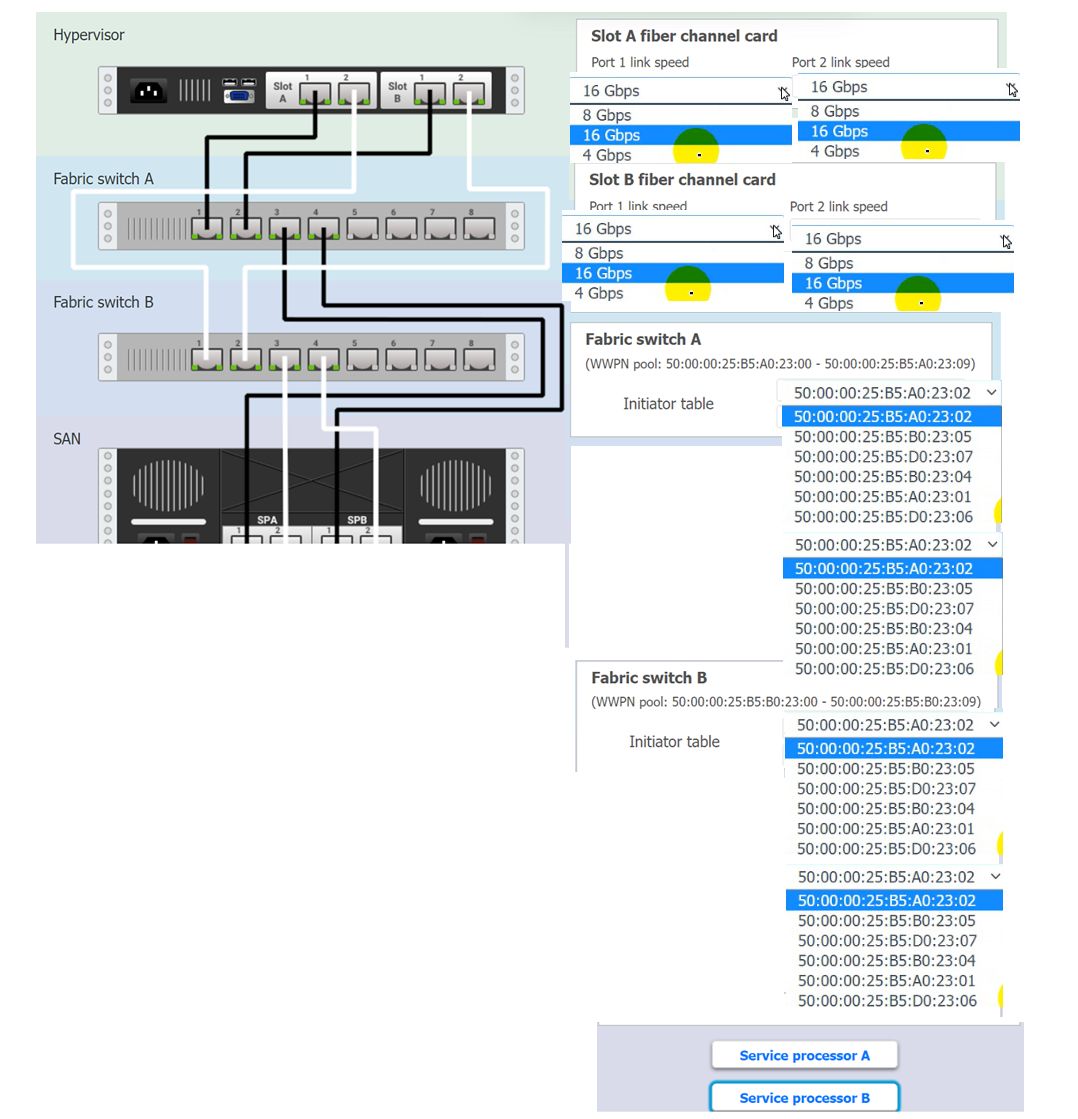

Based on the SLA requirements and the information provided in the diagram:

For the Hypervisor:

Slot A fiber channel card:

Port 1 link speed should be set to 16 Gbps since it's connected to Fabric switch A which supports 16 Gbps.

Port 2 link speed should be set to 8 Gbps because it's connected to Fabric switch B which supports up to 8 Gbps.

Slot B fiber channel card:

Port 1 link speed should be set to 16 Gbps since it's connected to Fabric switch A which supports 16 Gbps.

Port 2 link speed should be set to 8 Gbps because it's connected to Fabric switch B which supports up to 8 Gbps.

Elevated response times without reported issues or changes internally could indicate a Distributed Denial of Service (DDoS) attack, where multiple systems flood the bandwidth or resources of a targeted system, usually one or more web servers.

Reference: CompTIA Security+ Guide to Network Security Fundamentals by Mark Ciampa.

Text-to-voice (or text-to-speech) technology should be used by a person who is visually impaired to access data from the cloud. It converts text data into audible speech, allowing visually impaired individuals to receive the information audibly.

Reference: CompTIA Accessibility in IT Study Guide.
