DELL D-XTR-MN-A-24 Practice Test - Questions Answers, Page 3

ESRS (EMC Secure Remote Services) configuration verification is typically done using commands that check for system notifications and configurations.

The show-syslog-notifier command is used to verify the settings and configuration of syslog notifications, which is part of the ESRS setup.

This command helps in ensuring that the notifications are correctly configured and functioning as intended, allowing for remote monitoring and management.

To replace a power supply unit (PSU) in a storage controller of an XtremIO cluster, a specific command needs to be executed.

The correct command to initiate this process is replace-storage-controller-psu sc-psu-id=1 cluster-id='ABC123'.

This command specifies the action to replace the PSU (replace-storage-controller-psu), the PSU ID (sc-psu-id=1), and the specific cluster ID (cluster-id='ABC123').

Using this command ensures that the correct PSU in the specified cluster is prepared for replacement.

For an XtremIO cluster to use FTPS (File Transfer Protocol Secure) for the Connect Home feature, the firewall ports that need to be opened are 989 and 990. These ports are used for data connections and control connections under implicit security for FTPS1.

When using explicit security, FTPS can also use port 21, but since the question specifies FTPS for Connect Home, which typically uses implicit security, the correct ports are 989 for data transmission and 990 for the control connection1. It's important to ensure these ports are open to allow secure file transfer capabilities for the XtremIO cluster.

In a multi X-brick cluster, each X-brick consists of multiple Disk Array Enclosures (DAEs) that work together to provide storage and data redundancy.

If both DAE controllers in a single X-Brick fail, the impact is localized to the LUNs (Logical Unit Numbers) that store data on that particular DAE.

The entire cluster does not shut down; rather, only the data on the affected DAE becomes unavailable.

This design ensures that the rest of the cluster continues to operate normally, albeit with potential performance degradation depending on the data distribution and workload.

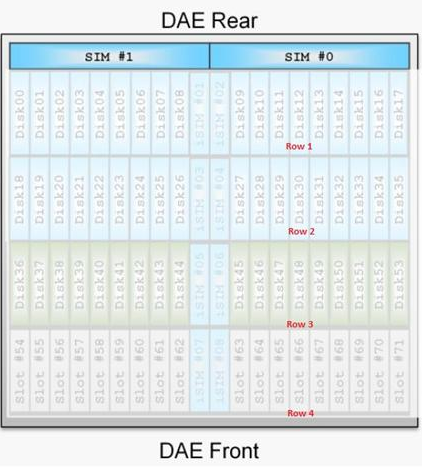

In Dell XtremIO X2 arrays, the Disk Protection Groups (DPGs) are organized in such a way that each DPG spans multiple rows of drives. Specifically, DPG-2 in an XtremIO-X2 DAE (Disk Array Enclosure) uses the drives in Row 1 and Row 2. This configuration is designed to ensure redundancy and fault tolerance. The drives in these rows collectively form the DPG, which is responsible for data protection and performance optimization.

For an XtremIO X2-S, the ports used on the InfiniBand switches for an Inter-Switch Link (ISL) connection are typically high-numbered ports, which are usually at the end of the port range on the switch. While the specific port numbers can vary depending on the switch model and configuration, ports 35 and 36 are commonly used for ISL connections in many configurations1.

The process to identify the ISL ports is as follows:

Access the InfiniBand switch via the management interface.

Use the appropriate command to list the port configuration (this command can vary based on the switch's firmware).

Identify the ports configured for ISL, which will be indicated in the port configuration settings.

It's important to refer to the official Dell XtremIO Maintenance Achievement document or the InfiniBand switch documentation for the exact port numbers as they can differ based on the switch model and the cluster configuration1.

When deploying a virtual XtremIO Management Server (XMS), the template uses the file name extension .ova. This is a standard format for virtual appliances, which are pre-configured virtual machines that can be imported and run on various virtualization platforms. The .ova file extension stands for Open Virtual Appliance (or Application) and is typically used for packaging and distributing software to be run in virtual machines1.

The deployment process using an .ova file typically involves the following steps:

Download the .ova file from the official source or portal.

Import the .ova file into the virtualization platform (such as VMware vSphere or Oracle VM VirtualBox).

Follow the prompts to configure the virtual machine settings as needed.

Once the import is complete, power on the virtual machine to begin the initial setup and configuration of the virtual XMS server.

This information is consistent with the practices outlined in the Official Dell XtremIO Maintenance Achievement document, ensuring that the deployment of the virtual XMS server aligns with Dell's recommended procedures2.

In preparation for a single-to-dual online cluster expansion, the power cables that are pre-staged by being connected to Power Distribution Unit B (PDU-B) only are for the right-side Power Supply Units (PSUs) of the Storage Controllers (SCs). Specifically, these would be the power cables for X2-SC1-PSU-R and X2-SC2-PSU-R. This configuration ensures that there is a balanced power distribution across the PDUs and that the new cluster components will have power connectivity once they are physically installed1.

The process typically involves:

Identifying the correct power cables for the SCs' PSUs.

Connecting these cables to the designated ports on PDU-B.

Ensuring that the cables are properly managed and labeled for easy identification during the expansion process.

This procedure is part of the standard practices for expanding an XtremIO cluster, as detailed in the Official Dell XtremIO Maintenance Achievement document1.

Before an XtremIO X1 cluster can start, it is required that the Battery Backup Units (BBUs) are charged to at least 70%. This ensures that there is sufficient power reserve to maintain data integrity and allow for safe shutdown procedures in case of an unexpected power loss. The BBUs provide power to the Storage Processors and other critical components during an outage, allowing them to complete any in-progress operations and commit data to SSDs1.

The startup process checks the BBU charge level and will only proceed if the minimum charge requirement is met. This is a safety feature designed to protect the system and the data it holds. If the BBUs are not adequately charged, the system will not start, preventing potential data loss or corruption that could occur if the system were to lose power without the ability to properly shut down1.

=========================
