Questions no: Which document contains the detailed steps for re-imaging the Storage Controller when preparing for a single-to-dual X-Brick expansion?

Verified Answer: C. XtremIO Hardware Installation and Upgrade Guide

Step by Step Comprehensive Detailed Explanation with References: The detailed steps for re-imaging the Storage Controller when preparing for a single-to-dual X-Brick expansion are contained in the XtremIO Hardware Installation and Upgrade Guide. This document provides comprehensive instructions on the physical installation, initial configuration, and upgrade procedures for XtremIO hardware components, including the process of re-imaging the Storage Controller1.

The steps typically include:

Ensuring that all data is backed up before starting the re-imaging process.

Verifying the current system configuration and health status.

Following the specific instructions for re-imaging the Storage Controller as outlined in the guide.

Performing post-re-imaging tasks such as system verification and configuration as necessary.

It is important to follow the guide closely to avoid any potential issues during the expansion process1.

=========================

When deploying a virtual XtremIO Management Server (XMS), it is recommended to allocate a virtual hard drive space of 200 GB. This recommendation is based on the requirements for the operating system, the XMS application, and additional space for updates, logs, and other system files that may be generated during operation1.

The deployment process would typically involve:

Preparing a virtual environment that meets the minimum hardware specifications.

Allocating the recommended virtual hard drive space of 200 GB to ensure adequate room for the XMS application and associated data.

Proceeding with the installation of the XMS application on the prepared virtual machine.

It is important to follow the official Dell XtremIO documentation to ensure that the virtual environment is correctly configured to support the XMS application2.

In an XtremIO X1 system, a full data protection group (DPG) can tolerate the loss of up to 5 drives before a data loss occurs. The XtremIO architecture ensures high availability and redundancy, but losing more than 5 drives within a DPG exceeds the system's ability to protect data, leading to potential data loss.

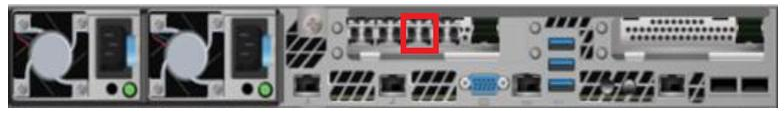

The highlighted port in the exhibit is a Fibre Channel (FC) port. This port type is used for high-speed data transfer between the storage controller and connected devices or networks. Fibre Channel is a technology known for its reliability and speed, making it suitable for storage area networks (SANs). The identification of the FC port is based on recognizing the physical characteristics of FC ports, such as their shape and typical placement on storage devices, as well as knowledge about Dell's XtremIO systems' configuration options1.

=========================

In preparation for a dual-to-quad online cluster expansion, the active cluster cabling should be validated using the Easy-Install menu. This menu provides a guided and automated way to ensure that all cabling is correctly connected and verified, minimizing the risk of errors and ensuring a smooth expansion process.

The Technician Advisor can be found on SolVe Desktop. SolVe Desktop is a comprehensive tool provided by Dell EMC that includes installation, maintenance, and troubleshooting procedures for various Dell EMC products, including XtremIO. It is an essential resource for technicians working with these systems.

The XtremIO Storage Array Site Preparation Guide is the document that provides detailed information about the environmental requirements, including temperature and humidity, for XtremIO storage systems. This guide is essential for ensuring that the site where the XtremIO system will be installed meets the necessary conditions for optimal operation and longevity of the equipment1.

The guide typically includes:

The acceptable temperature range for both operating and non-operating conditions.

The recommended humidity levels to prevent condensation and other moisture-related issues.

Guidelines for airflow and cooling to maintain the specified temperature and humidity levels.

It is important to adhere to these requirements to ensure the reliable performance of the XtremIO storage array and to avoid any potential environmental-related issues1.

=========================

The Eaton 1550 Evolution BBU (Battery Backup Unit) uses 1 DB9 and 1 RJ50 connector. These connectors are used for communication and management purposes, ensuring that the BBU can interface correctly with other components of the system.

The show-storage-controllers command is used in XMCLI to verify the IP addresses of the Storage Controllers after they have been changed. This command provides detailed information about the status and configuration of the storage controllers, including their IP addresses.
