For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool is WinSCP. WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer1. It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS's hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS1.

=========================

The SAS (Serial Attached SCSI) connection speed for an XtremIO X1 is 6 Gb/s, while for an XtremIO X2, it is 12 Gb/s. The increased speed in the X2 model enhances data transfer rates and overall performance, reflecting advancements in the hardware capabilities of the newer generation.

In an XtremIO X1 cluster, it is required that all SSDs (Solid State Drives) be configured with identical drive sizes. This uniformity ensures optimal performance and balanced wear leveling across the drives, which is crucial for maintaining the efficiency and reliability of the storage system.

The XtremIO X2 storage system can be expanded for capacity (Scale-Up) or both capacity and performance (Scale-Out). The system begins with a single building block, called an X-Brick, with a minimum of 18 SSDs. When additional capacity is required, the system scales up, with up to 72 SSDs for a single X-Brick1. Therefore, to upgrade a single X-Brick XtremIO X2 cluster that already contains 36 SSDs, the minimum number of SSDs required would be 18, which is the base configuration for an X-Brick.

=========================

XtremIO upgrade packages can be found on the support.emc.com website. This is the official support site for Dell EMC products, where customers can download software updates, including XtremIO upgrade packages. The site provides access to various resources, including documentation, knowledge articles, and software downloads for Dell EMC products12.

To find and download XtremIO upgrade packages, follow these steps:

Go to support.emc.com.

Log in with your Dell EMC support account credentials.

Navigate to the 'Downloads' section.

Search for XtremIO in the product list.

Select your specific XtremIO model and version.

Locate the upgrade package you need and download it.

It's important to ensure that you have a valid support contract and the necessary permissions to access and download software updates from support.emc.com1.

=========================

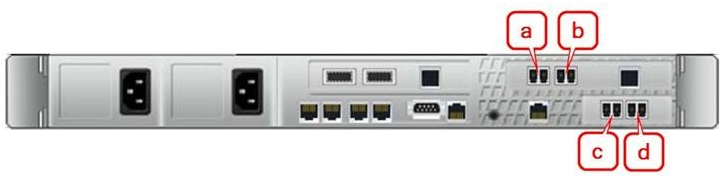

Based on the provided exhibit, ports 'b' and 'd' are used for FC2 (Fibre Channel 2) and iSCSI1 connections on an XtremIO X1. These ports are designated for specific connection types to ensure optimal performance and correct configuration of the storage network.

This performance metric is derived from the system's ability to deliver linear scalability, meaning that two X-Bricks can deliver twice the IOPS of a single X-Brick configuration2.

The calculation for this is based on the performance of a single X-Brick, which can achieve up to 300,000 IOPS under the same workload conditions. Therefore, with two X-Bricks, the system can achieve double that amount, resulting in 600,000 IOPS1.

This information is crucial for planning and sizing purposes, ensuring that the storage array meets the performance requirements of the applications it supports2.

=========================

In a multi X-Brick XtremIO X1 cluster, the failure of more than half of the COM (communication) cables forces the cluster into a degraded mode. This degraded mode is a protective measure to ensure that the cluster can continue operating with reduced performance and redundancy until the issues with the COM cables are resolved.

The XtremIO X2 WebUI is based on HTML5 technology. HTML5 is the latest version of the Hypertext Markup Language, the code that describes web pages. It's actually three kinds of code: HTML, which provides the structure; Cascading Style Sheets (CSS), which take care of presentation; and JavaScript, which makes things happen1.

HTML5 is designed to deliver almost everything you'd want to do online without requiring additional software such as browser plugins. It does everything from animation to apps, music to movies, and can also be used to build complicated applications that run in your browser.

XtremIO X2's use of HTML5 allows for a more interactive and responsive WebUI that is compatible with a wide range of devices, including tablets and smartphones, providing a better user experience and easier management of the storage array1.

=========================
