Cisco 300-510 Practice Test - Questions Answers, Page 24

Refer to the exhibit. A network engineer must correct the security policy on the EDGE_R router, which is connected to two Tier 1 ISPs. After another engineer added ip as-path access-list 11 permit 11 to EDGE_R, some routes from AS 11 and AS 4832 started to appear in the routing information base (RIB). Traffic control via Community options is disabled on both ISPs. How should the network engineer update the router configuration on EDGE_R so that only routes for AS 11 are permitted?

Refer to the exhibit.

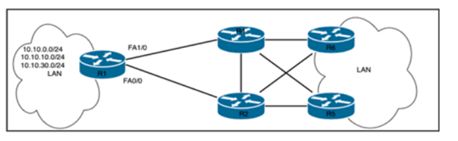

A network engineer must optimize link failures on the OSPF routing domain. The solution must follow RFC 5286. and downtime must be no more than 50 ms. All known subnets on R1 must be protected. Which solution must the engineer implement on R1?

Refer to the exhibit.

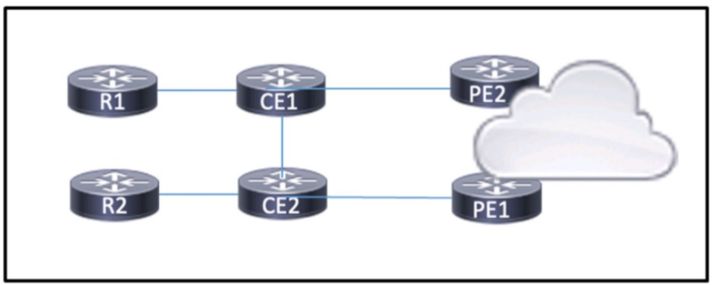

BGP is running on the network, and CE1 currently prefers routes to the internet via PE 1 A network engineer must manipulate the BGP routes that CE1 receives from PE2 to be more desirable The engineer configured a route map using MED and applied it on CE1 outbound from PE2. However, after a BGP soft reset. PE1 is still preferred. Which action must the engineer take so that PE2 is chosen as the next hop?

Refer to the exhibit.

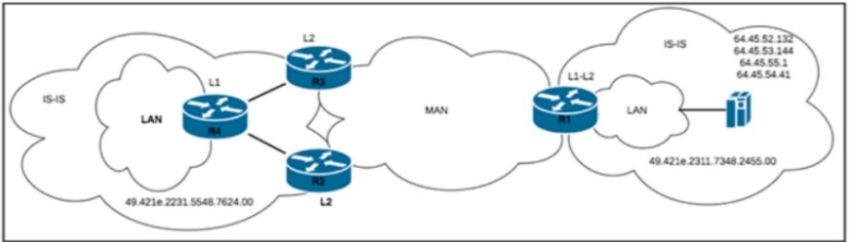

Company_A hosts multiple online VoD platforms. R3 is connected to MAN with a 100 Mbps link R2 has only a 10 Mbps connection, but it has the lowest number of hops to R1 A network engineer must allow users in area 49.421e.2331 5548.7624 00 to access online library resources, using the best possible route toward the online platforms to guarantee the highest connection quality. After the engineer implements the requirements, they notice an excessive number of routes in the R4 routing table and high memory consumption on the router. Which two actions must the engineer take to resolve the issue? (Choose two.)

Refer to the exhibit.

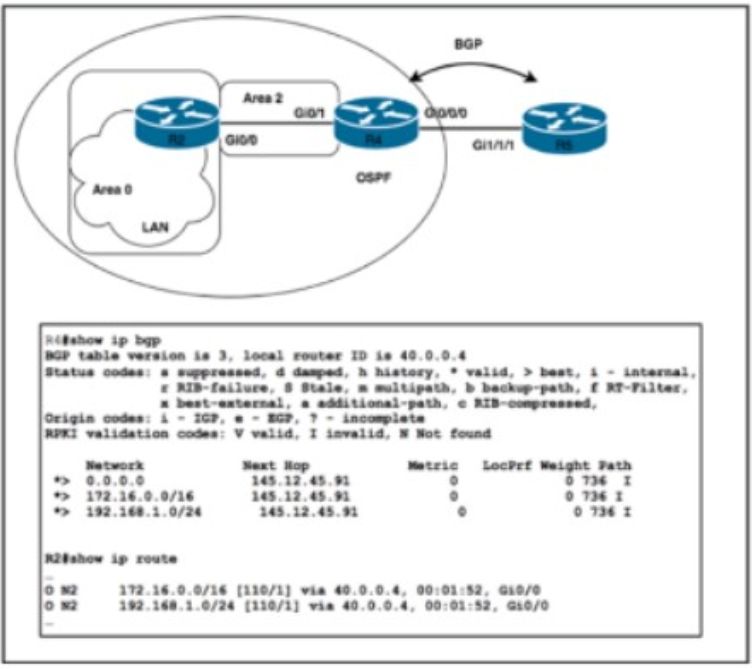

OSPF is an interior routing protocol on the network. R2 Is In the backbone area, and R4 is In a totally NSSA are a. R5 announces only the 0.0.0.0/0 route to R4 via BGP. R4 is configured with redistribute bgp 736 metric-type 2. After the most recent maintenance window. R2 no longer has the default route via R4. Which action must the network engineer take to correct the reachability problem?

What is the purpose of the confederation identifier in a BGP confederation?

Refer to the exhibit.

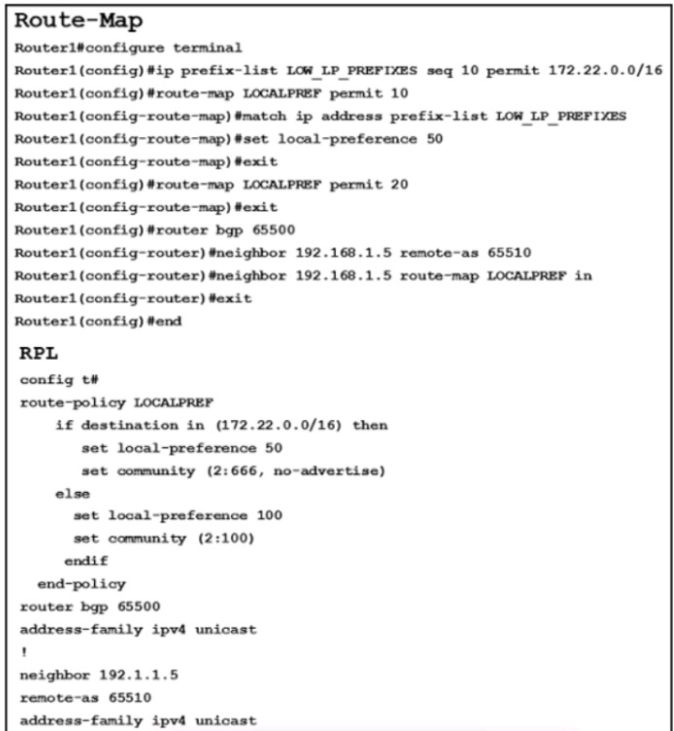

An engineer is comparing these RPL and route map configurations. Which two conclusions will the engineer reach? (Choose two.)

Which requirement must be met while using parameter with conditional matching in routing policy definition?

Refer to the exhibit.

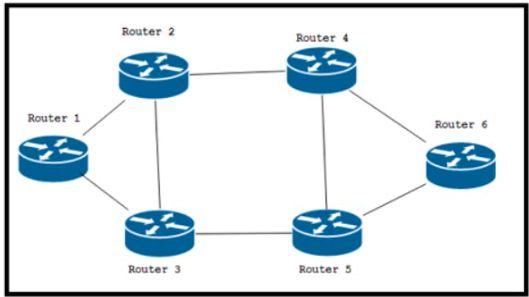

Router 1. Router 2. and Router 3 are co-located in an onsite data center of an office, but Router 4. Router 5. and Router 6 are installed in another data center 'eral miles away. A network engineer is troubleshooting an RSVP-TE issue on the network. On most of the devices, the engineer can move all LSPs away from a selected dace and take it down for maintenance without interrupting traffic. However, when an interface on Router 3 is taken down, traffic on the network is disrupted. What must the engineer enable to resolve the issue on Router 3?
