Question 561

(0)

What messages can Huawei equipment suppress traffic for?

Question 562

(0)

What mechanisms or techniques can VRRP combine with to monitor uplink connectivity?

Question 563

(0)

The following statement about static VXLAN tunnel configuration is correct?

Question 564

(0)

How do IGMPv2 routers maintain cinderband group membership? Multi-select

Question 565

(0)

As shown in the figure, all interfaces of the router have OSPF turned on, and the COST value of the link is identified in the figure. R2's loop backO interface advertises a cost in region l, then

Question 566

(0)

The following statement about IPSec VPN is correct ?qo

Question 567

(0)

During isis ' broadcast network database synchronization, is the following statement correct?

Question 568

(0)

Two routers, connected together through the serial port, but can not ping between each other , now check the port status as follows: Can the following information determine what the cause is?

Question 569

(0)

As shown in the topology diagram, all interfaces of the router in the figure are enabled with the ISIS protocol, and the following statement is correct.

Question 570

(0)

As shown below, RI, R2 establish EBGP neighbors, and once turned on, the BFD detection function, the following statement is correct?

Question 561

What messages can Huawei equipment suppress traffic for?

Multicast

Known unicast

Broadcast

Unknown unicast

Show Answer Comment (0)

Question 562

What mechanisms or techniques can VRRP combine with to monitor uplink connectivity?

IP-link

BFD

NQA

Interface trace

Show Answer Comment (0)

Question 563

The following statement about static VXLAN tunnel configuration is correct?

A BD needs to create an NVE country, and when there are multiple BDs, multiple NVE interfaces must be created

An NVE interface can be associated with multiple VNls, so you can create only one NVE interface when there are multiple BDs

For a VXLAN tunnel, you need to create a corresponding NVE interface, in which you explicitly specify the source IP address and the destination IP address , so there are multiple VXLAN tunnels on the VTEP that must be vE interfacesThe destination address of the VXLAN tunnel is specified in the

NVE interface, and multiple VXLAN tunnels can create only one NVE interface

Show Answer Comment (0)

Question 564

How do IGMPv2 routers maintain cinderband group membership? Multi-select

The router queries a specific group

The router maintains a timeout timer for each group membership, refreshes the timer if the receiver host is received, and deletes the group membership if the timer times out

The router periodically sends a Query message, and after the receiver host receives the Query message, it reports a Report message

As soon as the leave message is received, the router immediately deletes the group membership

Show Answer Comment (0)

Question 565

As shown in the figure,

all interfaces of the router have OSPF turned on, and the COST value of the link is identified in the figure. R2's loop backO interface advertises a cost in region l, then R1 reaches 10022/32 The value is

Show Answer Comment (0)

Question 566

The following statement about IPSec VPN is correct ?qo

Two routers establish an IPSec VPN in brutal mode, so that the two devices can interact with a minimum of 4 messages to establish a tunnel.

Brutal mode can support NAT traversal, while main mode does not support NAT traversal.

The two routers can establish OSPF neighbor relations and exchange intranet routes through the IPSec VPN tunnel

The two routers establish IPSecVPN in main mode, and from the 5th packet (included), the payload's data will be encrypted.

Show Answer Comment (0)

Question 567

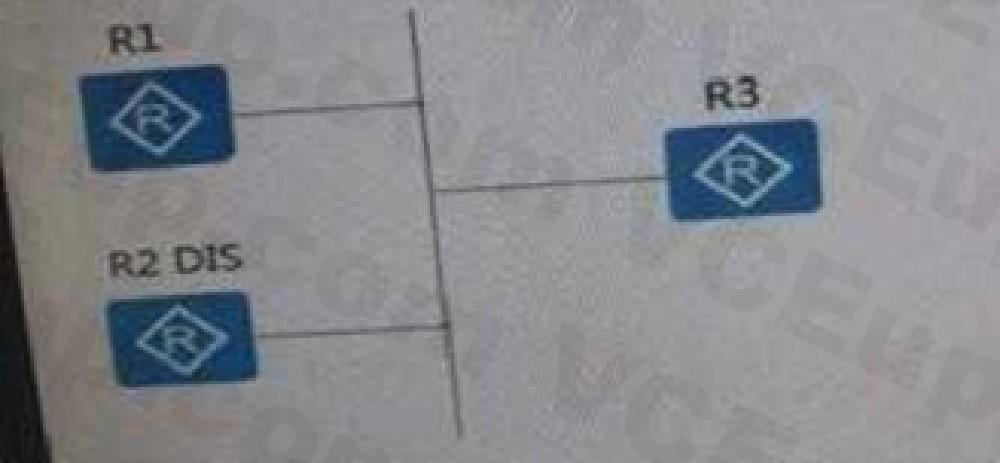

During isis ' broadcast network database synchronization, is the following statement correct?

R2, as DIS, sends CSNP periodically.

R2 As DIS, Hello time is 3 times that of a normal router . C. R2 as DIS does not receive PSNP nouns for other routes.

RI and R3 maintain database consistency by periodically sending PSNP requests.

Show Answer Comment (0)

Question 568

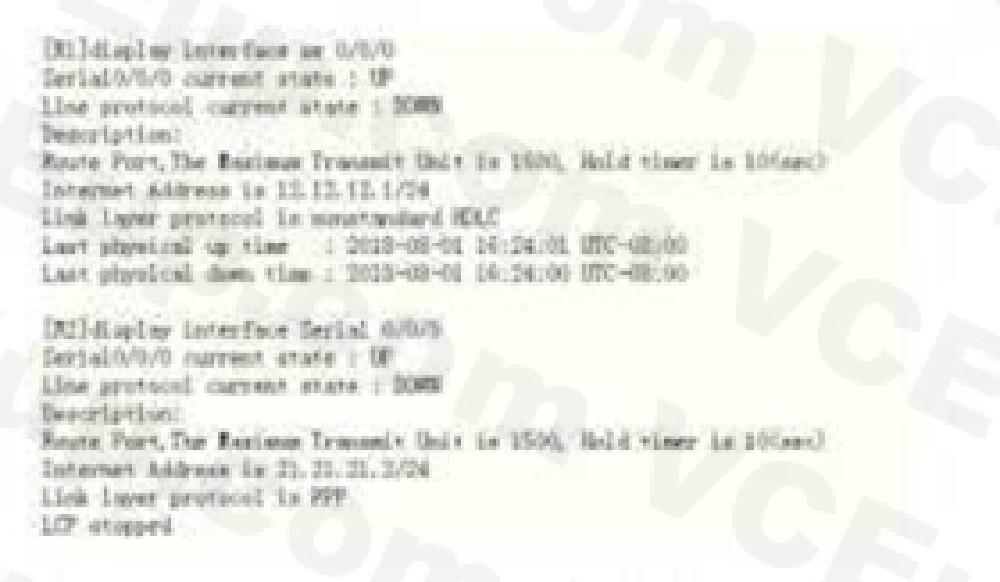

Two routers, connected together through the serial port, but can not ping between each other , now check the port status as follows: Can the following information determine what the cause is?

Insufficient link bandwidth

The IP addresses on both ends are not on the same network segment

The link layer protocols on both ends are inconsistent

Subnet mask does not match the

Show Answer Comment (0)

Question 569

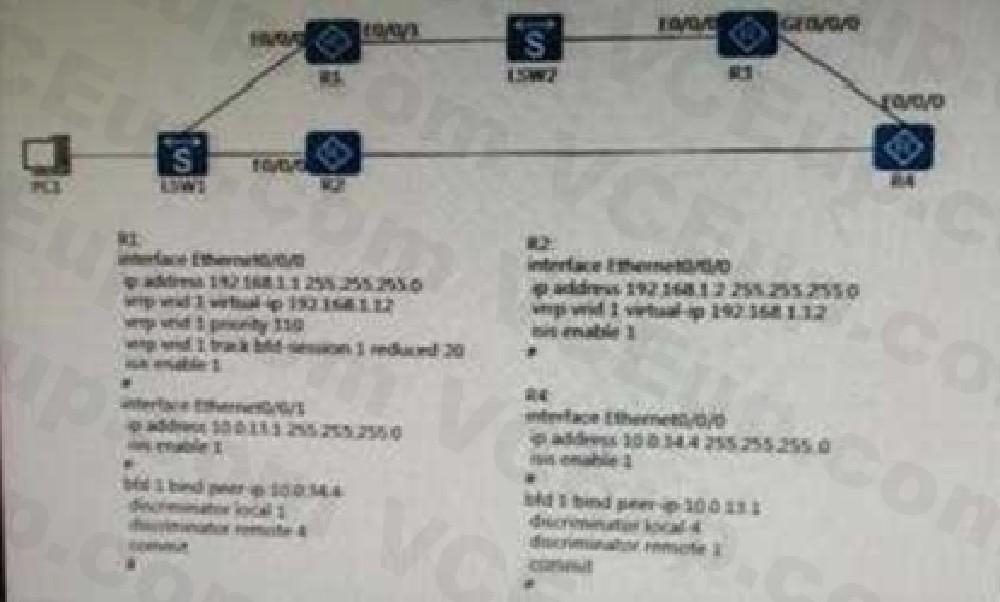

As shown in the topology diagram, all interfaces of the router in the figure are enabled with the ISIS protocol, and the following statement is correct.
