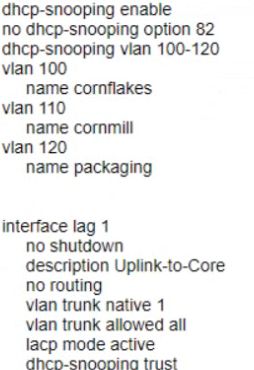

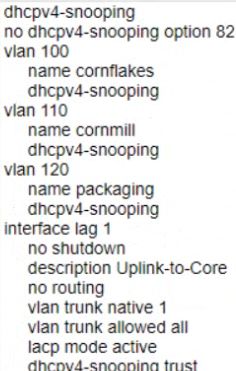

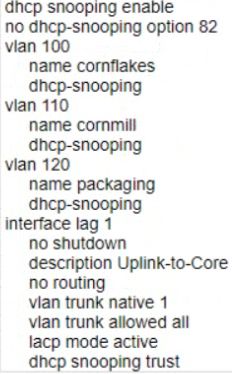

configures DHCP snooping on the switch and enables it for VLANs 100, 110, and 120. It also specifies the IP address of the authorized DHCP server and sets the ports connected to the server as trusted. This prevents any unauthorized DHCP server from providing invalid configuration data to the clients on those VLANs. Option B also enables DHCP option-82, which adds information about the switch port and VLAN to the DHCP packets, allowing for more granular control and logging of DHCP transactions.

The Aruba CX 6400 switch is a modular switch that supports high-performance and high-density Ethernet switching for campus and data center networks. One of the features that distinguishes the Aruba CX 6400 switch from most typical campus switches is virtual output queueing (VOQ).VOQ is a technique that implements large ingress packet buffers on each port to prevent head-of-line blocking and packet loss due to congestion2.VOQ allows each port to have multiple queues for different output ports and prioritize packets based on their destination and QoS class2.VOQ enables the Aruba CX 6400 switch to achieve high throughput and low latency for various traffic types and scenarios.

Reference:2https://www.arubanetworks.com/assets/ds/DS_CX6400Series.pdf

QoS stands for Quality of Service and is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc3.QoS involves identifying specific traffic for special treatment and applying policies and actions to improve its performance or meet certain service level agreements (SLAs)3.QoS can help network devices to manage congestion, delay, jitter, packet loss, bandwidth allocation, etc., for different types of traffic3.QoS can be implemented at various layers of the network stack and across different network domains.

Reference:3https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html

CoA (Change of Authorization) is a feature that allows ClearPass to dynamically change the authorization and access privileges of a device after it has been authenticated1.CoA uses RADIUS messages to communicate with the network device and instruct it to perform an action, such as reauthenticating the device, applying a new VLAN or user role, or disconnecting the device2.

To enable CoA on a CX switch, the network engineer needs to configure dynamic authorization on the switch, which is a global command that allows the switch to accept RADIUS messages from ClearPass and execute the requested actions3.The network engineer also needs to specify the IP address and shared secret of ClearPass as a dynamic authorization client on the switch3.

To trigger CoA for a specific wired device, the network engineer needs to bounce the switchport, which is an action that temporarily disables and re-enables the port where the device is connected. This forces the device to reauthenticate and receive the new policy from ClearPass. Bouncing the switchport can be done manually by using the interface shutdown and no shutdown commands, or automatically by using ClearPass as a CoA server and sending a RADIUS message with the Port-Bounce-Host AVP (Attribute-Value Pair).

EVPN-VXLAN is a technology that allows layer-2 communication across layer-3 networks by using Ethernet VPN (EVPN) as a control plane and Virtual Extensible LAN (VXLAN) as a data plane3. EVPN-VXLAN can be used to support legacy applications that communicate at layer-2 across different campuses or data centers that are connected via layer-3.EVPN-VXLAN minimizes flooding by using BGP to distribute MAC addresses and IP addresses of hosts across different VXLAN segments3.EVPN-VXLAN also provides benefits such as loop prevention, load balancing, mobility, and scalability3.

Reference:3https://www.arubanetworks.com/assets/tg/TG_EVPN_VXLAN.pdf

The terms broadcast, IP directed broadcast, multicast, and unicast are different types of communication or data transmission over a network. They differ in how many devices are involved in the communication and how they address the messages.The following table summarizes the characteristics of each term1:

Encryption is a feature supported by SNMPv3 that provides an advantage over SNMPv2c. Encryption protects the confidentiality and integrity of SNMP messages by encrypting them with a secret key. SNMPv2c does not support encryption and relies on community strings for authentication and authorization, which are transmitted in clear text and can be easily intercepted or spoofed. Transport mapping, community strings, and GetBulk are features that are common to both SNMPv2c and SNMPv3.

Reference: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/snmp/snmp.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/snmp/snmpv3.htm

The calculated Equivalent Isotropic Radiated Power (EIRP) for AP1 is 17 dBm.

EIRP is the measured radiated power of an antenna in a specific direction. It is equal to the input power to the antenna multiplied by the gain of the antenna. It can also take into account the losses in transmission line, connectors, and other components. The formula for EIRP is:

EIRP = P + G - L

where P is the output power of the radio, G is the gain of the antenna, and L is the loss of the cable and connectors.

For AP1, we have:

P = 10 dBm G = 9 dBi L = 2 dB

Therefore,

EIRP = 10 + 9 - 2 EIRP = 17 dBm
