When two networks with overlapping IP address spaces need to communicate, Network Address Translation (NAT) is required to translate the IP addresses so that they become unique across the combined network. In this scenario, both the local network and the new branch office use the same subnet: 192.168.100.0/24. To enable communication without IP conflicts, we need to translate the overlapping addresses to unique ones.

Understanding the Problem:

Local Network (Office A): 192.168.100.0/24

Branch Office (Office B): 192.168.100.0/24

Objective: Allow communication between Office A and Office B despite overlapping IP ranges.

Solution Overview:

To resolve the overlapping IP addresses, we can use Static NAT to create a one-to-one mapping between the overlapping IP addresses and a unique IP range. This way, when packets traverse the network boundary, their IP addresses are translated to a non-overlapping range, avoiding conflicts.

Option B and Option C implement Static NAT to resolve the issue:

Option B (At Office A):

Translates destination addresses from 192.168.200.0/24 to 192.168.100.0/24.

This allows Office B to reach Office A's overlapping network by targeting a unique IP range (192.168.200.0/24).

Option C (At Office B):

Translates destination addresses from 192.168.210.0/24 to 192.168.100.0/24.

This allows Office A to reach Office B's overlapping network by targeting a unique IP range (192.168.210.0/24).

Detailed

1. Static NAT Configuration at Office A (Option B):

Configuration:

[edit security nat static]

user@OfficeA# show rule-set From-Office-B {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.200.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.200.0/24;: Matches packets destined for 192.168.200.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office B sends packets to 192.168.200.0/24, which are translated to 192.168.100.0/24 upon arrival at Office A.

Juniper Networks Documentation: 'Configuring Static NAT'

2. Static NAT Configuration at Office B (Option C):

Configuration:

[edit security nat static]

user@OfficeB# show rule-set From-Office-A {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.210.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.210.0/24;: Matches packets destined for 192.168.210.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office A sends packets to 192.168.210.0/24, which are translated to 192.168.100.0/24 upon arrival at Office B.

Juniper Networks Documentation: 'Configuring Static NAT'

Why Options A and D are Incorrect:

Option A and Option D use Source NAT, which is typically used for translating the source IP address of outgoing traffic.

Source NAT with interface-based translation may not resolve overlapping IP issues effectively because it doesn't provide a one-to-one mapping of the overlapping addresses.

In scenarios with overlapping networks, Static NAT is preferred as it allows for consistent and predictable address translation, essential for two-way communication.

Key Juniper Concepts:

Static NAT:

Provides a one-to-one mapping between local and global addresses.

Useful for scenarios where bidirectional communication is required.

Source NAT:

Typically used for translating private IP addresses to public IP addresses for outbound traffic.

Interface-based Source NAT translates the source IP to the IP address of the egress interface.

Not ideal for resolving overlapping IP spaces in bidirectional communication.

Additional

Reference:

Juniper TechLibrary:

'Understanding NAT in SRX Series Devices'

'Configuring NAT for Overlapping Networks'

Juniper Forums and Knowledge Base Articles:

Discussions on resolving overlapping IP address spaces using Static NAT.

Conclusion:

By implementing Static NAT configurations as shown in Options B and C, both offices can effectively communicate despite having overlapping IP address spaces. Static NAT ensures that IP addresses are uniquely translated, avoiding conflicts and enabling seamless connectivity between the two networks.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding the Problem:

A CoS-based VPN has been configured but is not functioning correctly.

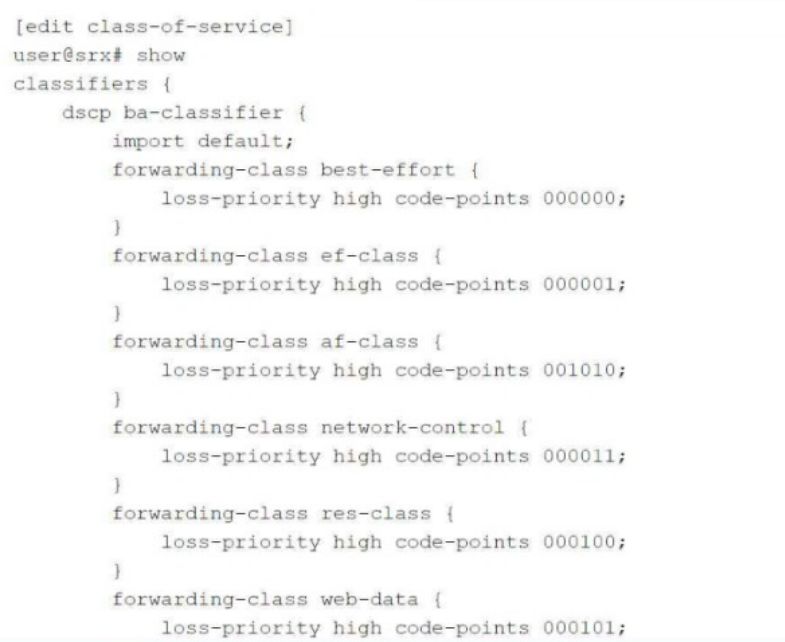

The exhibit shows that under the class-of-service configuration, six forwarding classes are defined.

Forwarding Classes in the Exhibit:

best-effort

ef-class

af-class

network-control

res-class

web-data

Juniper CoS-Based VPN Limitations:

Maximum Number of Forwarding Classes: In CoS-based VPNs (Layer 3 VPNs), there is a limitation on the number of forwarding classes that can be used.

Supported Forwarding Classes: Only up to four forwarding classes are supported in an L3VPN for CoS purposes.

Additional

Reference:

Juniper TechLibrary:

'Configuring Class of Service for MPLS VPNs' - Discusses CoS considerations and limitations in MPLS L3VPN deployments.

Source: Juniper TechLibrary - CoS for VPNs

Juniper Networks Day One Book:

'Deploying MPLS Layer 3 VPNs' - Provides insights into CoS limitations and best practices for VPN deployments.

Juniper Networks Documentation:

'For Layer 3 VPNs, the maximum number of forwarding classes supported is four. If you configure more than four forwarding classes, CoS functionality might not work as expected.'

Source: Juniper TechLibrary - Class of Service Limitations in VPNs

Issue Identification:

The VPN is not functioning correctly because it exceeds the maximum number of supported forwarding classes for a CoS-based VPN.

Solution:

Option D: You must delete one forwarding class.

By reducing the number of forwarding classes to four or fewer, the CoS-based VPN will comply with the limitations and function correctly.

Why Other Options Are Incorrect:

Option A: You must change the loss priorities of the forwarding classes to low.

Changing loss priorities does not affect the limitation on the number of forwarding classes.

The issue is not related to loss priority settings but to the number of forwarding classes.

Option B: You must change the code point for the DB-data forwarding class to 10000.

There is no forwarding class named DB-data in the exhibit.

Changing a code point does not address the issue of exceeding the maximum number of forwarding classes.

Option C: You must use inet precedence instead of DSCP.

Switching from DSCP to IP Precedence does not resolve the issue of having too many forwarding classes.

The limitation on the number of forwarding classes remains the same regardless of the classification method used.

Conclusion:

To resolve the issue with the CoS-based VPN not functioning correctly due to exceeding the maximum number of forwarding classes, you must delete forwarding classes to reduce the total number to four or fewer.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security ReferenceUnderstanding the Problem:The goal is to bypass IDP for traffic destined to social media sites using Application-Based Policy Routing (APBR).Despite the configuration, IDP is still dropping the sessions.Need to identify two reasons why this is happening.Key Concepts:Application-Based Policy Routing (APBR): Allows routing decisions based on the application identified in the traffic.IDP (Intrusion Detection and Prevention): Monitors network traffic for malicious activity and can drop suspicious packets.Bypassing IDP: To bypass IDP for certain traffic, specific configurations are required within the APBR rule.Option A: IDP disable is not configured on the APBR rule.To bypass IDP for specific traffic using APBR, you must explicitly configure the idp-disable option within the APBR rule.Without this configuration, even if APBR redirects the traffic, IDP will still inspect and potentially drop the traffic.Juniper Networks Documentation:'To bypass IDP processing for traffic matching an APBR rule, include the idp-disable statement in the rule configuration.'Source: Juniper TechLibrary - Configuring APBR to Bypass IDPOption D: The session did not properly reclassify midstream to the correct APBR rule.Midstream Reclassification: APBR relies on application identification, which may occur after several packets have been exchanged (not just the first packet).When the application is identified mid-session, the session should be reclassified according to the correct APBR rule.If midstream reclassification does not occur properly, the session continues under the initial policy, and IDP continues to inspect and potentially drop the traffic.Possible Causes:Session Setup Issues: If the session was established before the application was identified, and reclassification is not enabled or not functioning, the session won't switch to the APBR rule that bypasses IDP.Configuration Errors: Incorrect or missing configuration for midstream reclassification.Juniper Networks Documentation:'For APBR to reclassify sessions after the application is identified, ensure that midstream reclassification is enabled.'Source: Juniper TechLibrary - Understanding APBR and Midstream ReclassificationWhy Options B and C are Incorrect:Option B: The application services bypass is not configured on the APBR rule.There is no specific application-services bypass option within APBR rules for bypassing IDP.To bypass IDP, the idp-disable option must be used.Application services bypass generally refers to bypassing other services like UTM, not specifically IDP within APBR.Juniper Networks Documentation:'APBR rules can include the idp-disable statement to bypass IDP. There is no application-services bypass statement for APBR.'Option C: The APBR rule does a match on the first packet.By default, APBR can match on the first packet, but for applications that require deeper inspection, you can configure the rule to not match on the first packet.Matching on the first packet is generally beneficial for routing decisions.In this scenario, matching on the first packet is not the reason why IDP is dropping the session.Juniper Networks Documentation:'If you configure APBR to match on the first packet, the routing decision is made immediately. If the application is not identified on the first packet, the default routing is used until the application is identified.'Conclusion:Answer:s:A . IDP disable is not configured on the APBR rule.Without idp-disable, IDP will continue to inspect and possibly drop the traffic matching the APBR rule.D . The session did not properly reclassify midstream to the correct APBR rule.If midstream reclassification fails, the session remains under the initial policy, and IDP processing continues.Resolution Steps:Configure idp-disable: Ensure that the APBR rule includes the idp-disable statement to bypass IDP for the specified traffic.arduinoCopy codeset security application-path-routing rule <rule-name> then idp-disableEnable Midstream Reclassification: Verify that midstream reclassification is enabled and functioning correctly to reclassify sessions once the application is identified.Note: Midstream reclassification is enabled by default, but verify that no configuration is preventing it.Additional

Reference:Juniper TechLibrary:'Application-Based Policy Routing Overview' - Provides an overview of APBR features and configurations.Source: Juniper TechLibrary - APBR Overview'Configuring IDP Policy Bypass' - Discusses how to bypass IDP for specific traffic.Source: Juniper TechLibrary - Configuring IDP BypassJuniper Networks Day One Book:'Advanced Security Policies' - Offers insights into configuring advanced security policies, including APBR and IDP interactions.
