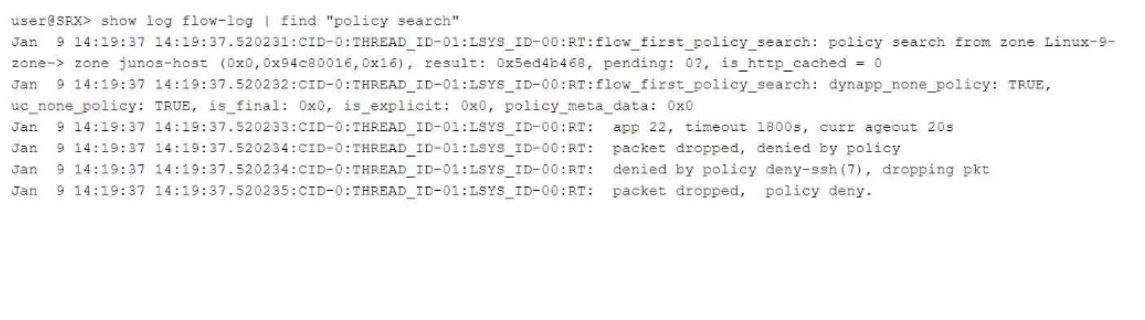

Policy Enforcer interacts with other network elements like EX switches to enforce blocking of infected hosts based on threat intelligence from ATP Cloud and other sources. For more information, refer to Juniper Policy Enforcer Documentation.

In a Juniper automated threat mitigation setup involving Security Director, Policy Enforcer, Juniper ATP Cloud, SRX Series, and EX Series switches, the Policy Enforcer is the component responsible for blocking infected hosts. The role of each component is as follows:

Policy Enforcer (Correct: Option A):

Policy Enforcer receives threat intelligence from Juniper ATP Cloud and instructs SRX devices and EX Series switches to block or quarantine infected hosts. Policy Enforcer pushes policies to these devices to enforce the mitigation actions.

Security Director (Incorrect):

Security Director provides centralized management and visibility but does not directly enforce policies.

Juniper ATP Cloud (Incorrect):

Juniper ATP Cloud is responsible for analyzing threats and providing intelligence but does not take direct mitigation actions.

EX Series Switch (Incorrect):

EX Series switches can enforce the policy pushed by Policy Enforcer but are not responsible for deciding which hosts to block.

Juniper

Reference:

Juniper ATP Cloud and Policy Enforcer Documentation: Details the roles of each component in the automated threat mitigation architecture.

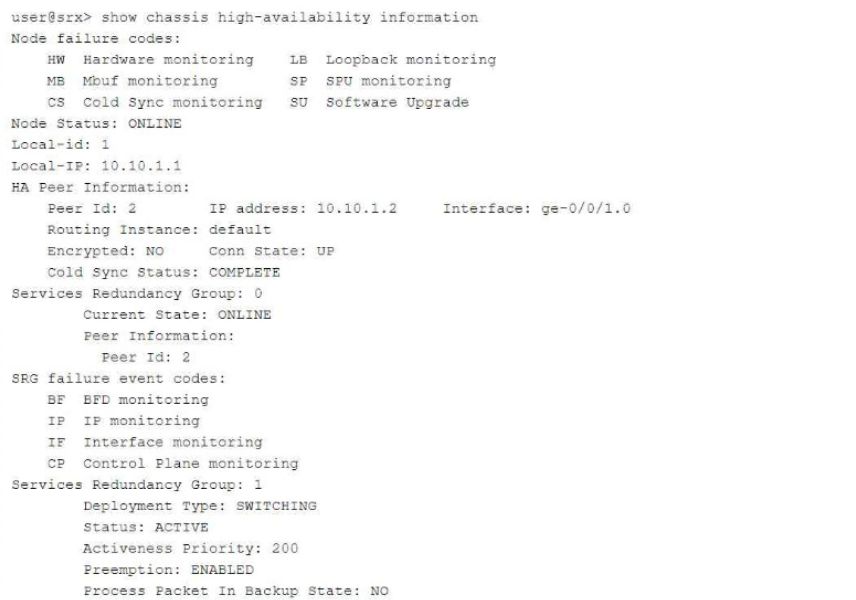

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:

Two Services Redundancy Groups (Correct: Option A):

The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):

The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):

In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.

Juniper

Reference:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

The problem describes two offices needing to communicate, but both share the same IP address space, 192.168.100.0/24. To resolve this, NAT must be configured to translate the conflicting address spaces on each side. Here's how each of the configurations works:

Option A (Correct):

This source NAT rule translates the source address of traffic from Office B to Office A. By configuring source NAT, the source IP addresses from Office B (192.168.210.0/24) will be translated when communicating with Office A (192.168.200.0/24). This method ensures that there is no overlap in address space when packets are transmitted between the two offices.

Option D (Correct):

This is a source NAT rule configured on Office B, which translates the source addresses from Office A to prevent address conflicts. It ensures that when traffic is initiated from Office A to Office B, the overlapping address range (192.168.100.0/24) is translated.

Options B and C (Incorrect):

These options involve static NAT rules that map address ranges between the two offices, but they do not resolve the overlapping IP address space issue effectively. Static NAT is not the optimal solution in this scenario since the problem involves address space conflict, which requires translation of source addresses during communication.

Juniper

Reference:

Juniper NAT Configuration Guide: Detailed instructions on how to configure source NAT and resolve address conflicts between networks.

Aggressive mode is required when an IP address is dynamically assigned, such as through DHCP, as it allows for faster establishment with less identity verification. More details are available in Juniper IKE and IPsec Configuration Guide.

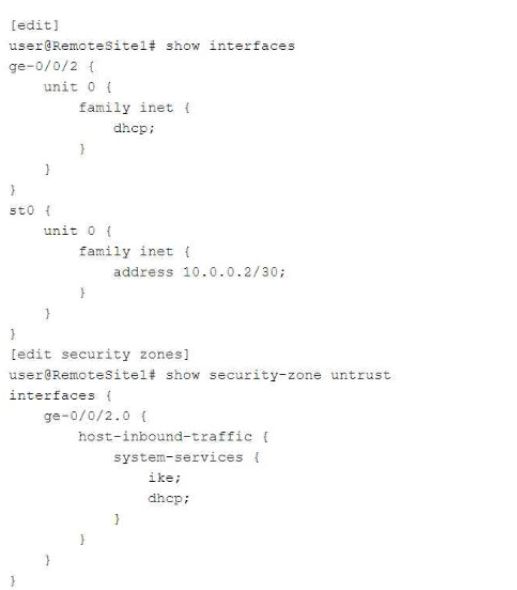

The configuration shown in the exhibit highlights that the RemoteSite1 SRX Series device is using DHCP to obtain an IP address for its external interface (ge-0/0/2). This introduces a challenge in IPsec VPN configurations when the public IP address of the remote site is not static, as is the case here.

Aggressive mode in IKE (Internet Key Exchange) is designed for situations where one or both peers have dynamically assigned IP addresses. In this scenario, aggressive mode allows the devices to exchange identifying information, such as hostnames, rather than relying on static IP addresses, which is necessary when the remote peer (RemoteSite1) has a dynamic IP from DHCP.

Correct Action (D): Changing the IKE policy mode to aggressive will resolve the issue by allowing the two devices to establish the VPN even though one of them is using DHCP. In aggressive mode, the initiator can present its identity (hostname) during the initial handshake, enabling the VPN to be established successfully.

Incorrect Options:

Option A: Changing the external interface to st0.0 is incorrect because the st0 interface is used for the tunnel interface, not for the IKE negotiation.

Option B: Changing to IKE version 2 would not resolve the dynamic IP issue directly, and IKEv1 works in this scenario.

Option C: Changing the IKE proposal set to basic doesn't address the dynamic IP challenge in this scenario.

Juniper

Reference:

Juniper IKE and VPN Documentation: Provides details on when to use aggressive mode, especially when a dynamic IP address is involved.

The command show security nat source persistent-nat-table all provides a comprehensive view of all entries in the persistent NAT table, enabling administrators to monitor and manage resource exhaustion. Refer to Juniper NAT Monitoring Guide for more.

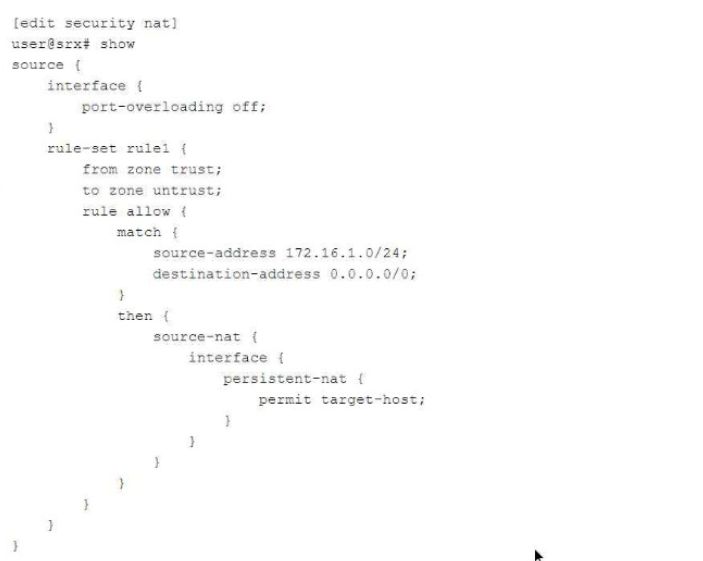

In Junos OS, when persistent NAT is configured, a binding table is created to keep track of NAT sessions and ensure that specific hosts are allowed to initiate sessions back to internal hosts. To check if the persistent NAT binding table is full or exhausted, the correct command must display the entire table.

Correct Command (D):

The command show security nat source persistent-nat-table all will display the entire persistent NAT binding table. This allows you to check whether the table is exhausted or if there is space available for new persistent NAT sessions.

Incorrect Options:

Option A: The command show security nat source persistent-nat-table summary provides a summary view but does not give detailed insights into whether the table is exhausted.

Option B and Option C: These commands deal with general NAT source summaries or pools, which are not related specifically to persistent NAT bindings.

Juniper

Reference:

Juniper Persistent NAT Documentation: Describes the persistent NAT binding table and the commands used to monitor its status.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding NAT64:

NAT64 allows IPv6-only clients to communicate with IPv4 servers by translating IPv6 addresses to IPv4 addresses and vice versa.

It is essential in environments where IPv6 clients need access to IPv4 resources.

Flow-Based vs. Packet-Based Forwarding Modes:

Flow-Based Forwarding Mode:

The SRX device processes packets based on the session state.

Supports advanced services like NAT, IDP, and ALG.

Packet-Based Forwarding Mode:

The SRX device processes each packet individually without maintaining session state.

Limited support for advanced services.

Option A: An SRX Series device should be in flow-based forwarding mode for IPv4.

True.

NAT64 requires flow-based mode for IPv4 traffic to properly translate and maintain session states.

Option B: An SRX Series device should be in packet-based forwarding mode for IPv4.

False.

Packet-based mode does not support NAT features.

Option C: An SRX Series device should be in packet-based forwarding mode for IPv6.

False.

Similar to IPv4, NAT64 requires flow-based mode for IPv6 traffic.

Option D: An SRX Series device should be in flow-based forwarding mode for IPv6.

True.

Flow-based mode is necessary for NAT64 to handle IPv6 traffic correctly.

Key Points:

NAT64 Requires Flow-Based Mode:

Both IPv4 and IPv6 interfaces involved in NAT64 must be configured in flow-based mode.

This is because NAT64 relies on session information and stateful packet inspection.

Packet-Based Mode Limitations:

Does not support NAT, as it lacks session awareness.

Not suitable for NAT64 operations.

Juniper Security

Reference:

Juniper Networks Documentation:

'NAT64 is supported only in flow-based processing mode.'

Source: Configuring NAT64

Understanding Flow-Based and Packet-Based Modes:

'Flow-based mode is required for stateful services such as NAT.'

Source: Flow-Based and Packet-Based Processing

Conclusion:

To implement NAT64 on an SRX Series device, both IPv4 and IPv6 traffic must be processed in flow-based forwarding mode.

Therefore, Options A and D are the correct statements.
