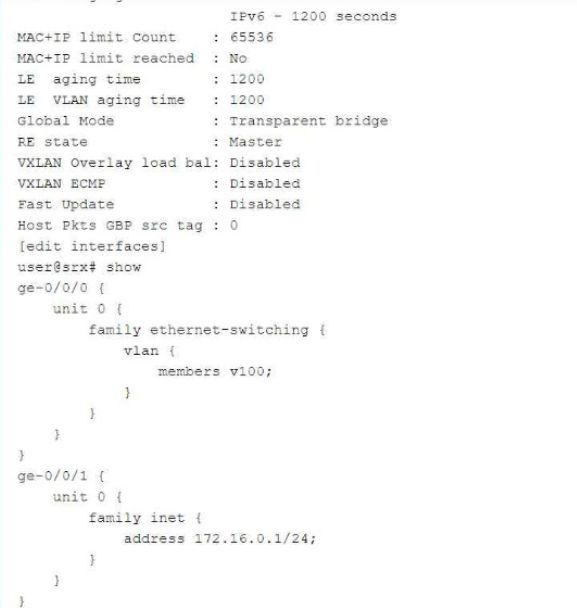

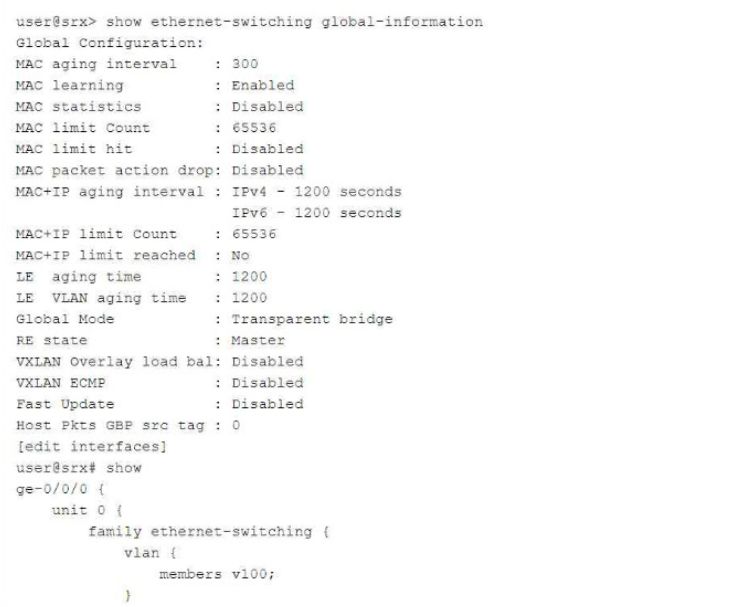

When Ethernet interfaces are configured as Layer 2 and added to the same VLAN without being assigned to a security zone, they will not forward traffic by default. Additionally, because they are operating in a pure Layer 2 switching mode, they lack the capability to enforce stateful security policies. For further details, refer to Juniper Ethernet Switching Layer 2 Documentation.

Explanation of Answer A (Unable to Apply Stateful Security Features):

When two interfaces are configured as Layer 2 interfaces and belong to the same VLAN but are not assigned to any security zone, traffic switched between them is handled purely at Layer 2. Stateful security features, such as firewall policies, are applied at Layer 3, so traffic between these interfaces will not undergo any stateful inspection or firewalling by default.

Explanation of Answer C (Interfaces Will Not Forward Traffic):

In Junos, Layer 2 interfaces must be added to a security zone to allow traffic forwarding. Since the interfaces in this scenario are not part of a security zone, they will not forward traffic by default until assigned to a zone. This is a security measure to prevent unintended forwarding of traffic.

Juniper Security

Reference:

Layer 2 Interface Configuration: Layer 2 interfaces must be properly assigned to security zones to enable traffic forwarding and apply security policies. Reference: Juniper Networks Layer 2 Interface Documentation.

When handling traffic that is destined for itself, the SRX examines the host-inbound-traffic configuration for the ingress interface and the associated security zone. It evaluates whether the traffic should be allowed based on this configuration. Traffic not addressed to the ingress interface is handled based on security policies within the junos-host zone, which applies to traffic directed to the SRX itself. For more details, refer to Juniper Host Inbound Traffic Documentation.

When handling traffic that is destined for the SRX device itself (also known as host-bound traffic), the SRX follows a specific process to evaluate the traffic and apply the appropriate security policies. The junos-host zone is a special security zone used for managing traffic destined for the device itself, such as management traffic (SSH, SNMP, etc.).

Explanation of Answer B (Packet to a Different Interface):

If the packet is destined for an interface other than the ingress interface, the SRX performs a security policy evaluation specifically for the junos-host zone. This ensures that management or host-bound traffic is evaluated according to the security policies defined for that zone.

Explanation of Answer C (Packet to the Ingress Interface):

If the packet is addressed to the ingress interface, the device first checks the host-inbound-traffic configuration for the ingress interface and zone. This configuration determines whether certain types of traffic (such as SSH, HTTP, etc.) are allowed to reach the device on that specific interface.

Step-by-Step Handling of Host-Bound Traffic:

Host-Inbound Traffic: Define which services are allowed to the SRX device itself:

bash

set security zones security-zone <zone-name> host-inbound-traffic system-services ssh

Security Policy for junos-host: Ensure policies are defined for managing traffic destined for the SRX device:

bash

set security policies from-zone <zone-name> to-zone junos-host policy allow-ssh match source-address any

set security policies from-zone <zone-name> to-zone junos-host policy allow-ssh match destination-address any

Juniper Security

Reference:

Junos-Host Zone: This special zone handles traffic destined for the SRX device, including management traffic. Security policies must be configured to allow this traffic. Reference: Juniper Networks Host-Inbound Traffic Documentation.

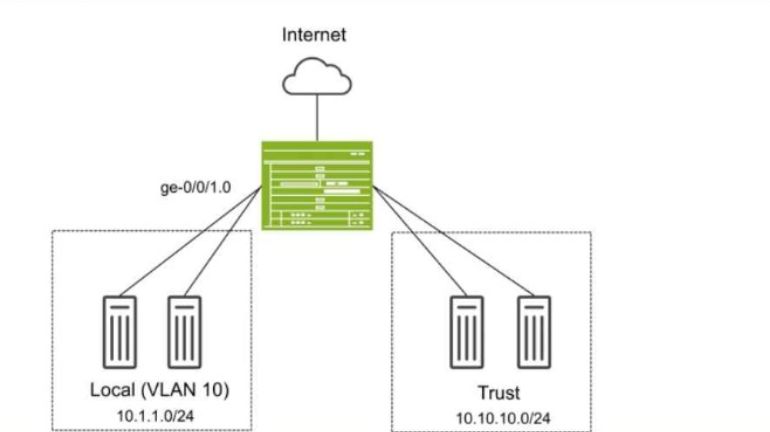

In this scenario, we need to configure the SRX Series device so that devices in the Local zone (VLAN 10, 10.1.1.0/24 network) can communicate with each other but not with other networks or the SRX itself. Additionally, you must be able to apply security policies to traffic flows between the devices in the Local zone.

Explanation of Answer A (Assigning Interface to Security Zone):

You need to assign the interface ge-0/0/1.0 to the Local security zone. This is crucial because the SRX only applies security policies to interfaces assigned to security zones. Without this, traffic between devices in the Local zone won't be processed by security policies.

Configuration:

set security zones security-zone Local interfaces ge-0/0/1.0

Explanation of Answer B (Configuring Ethernet-Switching for VLAN 10):

Since we are using Layer 2 switching between devices in VLAN 10, we need to configure the interface to operate in Ethernet switching mode and assign it to VLAN 10.

Configuration:

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-members 10

Explanation of Answer D (Transparent Bridging Mode for Layer 2):

The global mode for Layer 2 switching on the SRX device must be set to transparent-bridge. This ensures that the SRX operates in Layer 2 mode and can switch traffic between devices without routing.

Configuration:

set protocols l2-learning global-mode transparent-bridge

Summary:

Interface Assignment: Interface ge-0/0/1.0 is assigned to the Local zone to allow policy enforcement.

Ethernet-Switching: The interface is configured for Layer 2 Ethernet switching in VLAN 10.

Transparent Bridging: The SRX is configured in Layer 2 transparent-bridge mode for switching between devices.

Juniper Security

Reference:

Layer 2 Bridging and Switching Overview: This mode allows the SRX to act as a Layer 2 switch for forwarding traffic between VLAN members without routing. Reference: Juniper Transparent Bridging Documentation.

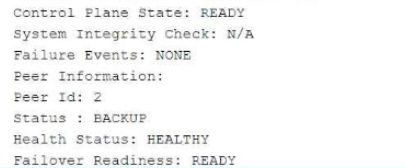

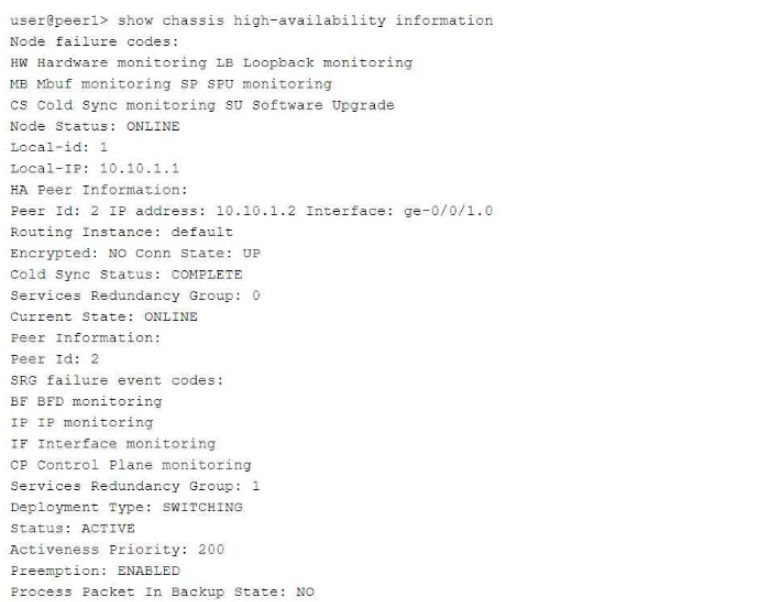

The exhibit describes a Chassis Cluster configuration with high availability (HA) settings. The key information is related to Service Redundancy Group 1 (SRG1) and its failover behavior between the two peers.

Explanation of Answer D (Packet Forwarding after Failover):

In a typical SRX HA setup with active/backup configuration, if the SRG1 group moves to peer 2 (the backup), peer 1 (previously the active node) will forward packets to peer 2 instead of dropping them. This ensures smooth failover and seamless continuation of services without packet loss.

This behavior is part of the active/backup failover process in SRX chassis clusters, where the standby peer takes over traffic processing without disruption.

Juniper Security

Reference:

Chassis Cluster Failover Behavior: When a service redundancy group fails over to the backup peer, the previously active peer forwards traffic to the new active node. Reference: Juniper Chassis Cluster Documentation.

Logical systems on SRX Series devices allow the creation of separate virtual routers, each with its unique RPD process. This segmentation ensures that routing and security policies are isolated across different logical systems, effectively acting like independent routers within a single SRX device. For further information, see Juniper Logical Systems Documentation.

To create multiple virtual routers on a single SRX Series device, each with its own unique copy of the routing protocol daemon (RPD) process, you need to use logical systems. Logical systems allow for the segmentation of an SRX device into multiple virtual routers, each with independent configurations, including routing instances, policies, and protocol daemons.

Explanation of Answer D (Logical System):

A logical system on an SRX device enables you to create multiple virtual instances of the SRX, each operating independently with its own control plane and routing processes. Each logical system gets a separate copy of the RPD process, ensuring complete isolation between virtual routers.

This is the correct solution when you need separate routing instances with their own RPD processes on the same physical device.

Configuration Example:

bash

set logical-systems <logical-system-name> interfaces ge-0/0/0 unit 0

set logical-systems <logical-system-name> routing-options static route 0.0.0.0/0 next-hop 192.168.1.1

Juniper Security

Reference:

Logical Systems Overview: Logical systems allow for the creation of multiple virtual instances within a single SRX device, each with its own configuration and control plane. Reference: Juniper Logical Systems Documentation.

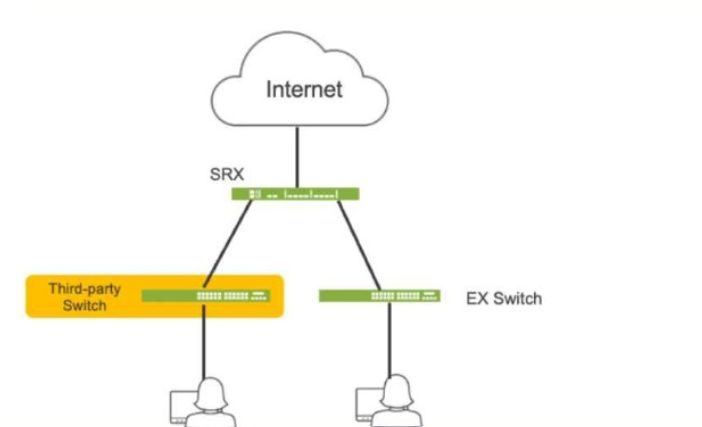

A. Enroll the SRX Series device with Juniper ATP Cloud. This is essential for the SRX to receive threat intelligence from ATP Cloud, enabling it to identify infected hosts and take action.

B. Use a third-party connector. In this specific scenario, a third-party connector is required to integrate the SRX with the third-party switch. While Juniper has native integration for its EX switches, a connector is necessary to communicate with and manage the third-party switch.

C. Deploy Security Director with Policy Enforcer. Security Director orchestrates the automated response, and Policy Enforcer translates the policies into device-specific commands for the SRX and the third-party switch (via the connector).

Secure wire mode on SRX devices allows traffic to flow transparently through the firewall without being routed or switched, while still applying security policies. This is ideal for scenarios where traffic inspection is required without altering the traffic path or performing additional routing decisions. For further details on Secure Wire, refer to Juniper Secure Wire Documentation.

In this scenario, you want traffic to pass through the SRX unchanged (without routing or switching lookups) but still be subject to security policy checks. The best solution for this requirement is Secure Wire.

Explanation of Answer C (Secure Wire):

Secure Wire allows traffic to flow through the SRX without any Layer 3 routing or Layer 2 switching decisions. It effectively bridges two interfaces at Layer 2 while still applying security policies. This ensures that traffic remains unchanged, while security policies (such as firewall rules) can still be enforced.

This is an ideal solution when you need the SRX to act as a 'bump in the wire' for security enforcement without changing the traffic or performing complex network lookups.

Juniper Security

Reference:

Secure Wire Functionality: Provides transparent Layer 2 forwarding with security policy enforcement, making it perfect for scenarios where traffic needs to pass through unchanged. Reference: Juniper Secure Wire Documentation.
