You have a multinode HA default mode deployment and the ICL is down.

In this scenario, what are two ways that the SRX Series devices verify the activeness of their peers? (Choose two.)

A.

Custom IP addresses may be configured for the activeness probe.

A.

Custom IP addresses may be configured for the activeness probe.

Answers
B.

Fabric link heartbeats are used to verify the activeness of the peers.

B.

Fabric link heartbeats are used to verify the activeness of the peers.

Answers
C.

Each peer sends a probe with the virtual IP address as the destination IP address.

C.

Each peer sends a probe with the virtual IP address as the destination IP address.

Answers
D.

Each peer sends a probe with the virtual IP address as the source IP address and the upstream router as the destination IP address.

D.

Each peer sends a probe with the virtual IP address as the source IP address and the upstream router as the destination IP address.

Answers
Suggested answer: A, D

Explanation:

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding the Scenario:

Multinode HA Default Mode Deployment:

In a chassis cluster, two SRX devices operate together to provide high availability.

ICL (Inter-Cluster Link) is Down:

The control and fabric links between the nodes are not operational.

Objective:

Determine how the SRX devices verify each other's activeness without the ICL.

Option A: Custom IP addresses may be configured for the activeness probe.

When the control link is down, SRX devices use an ICMP ping-based activeness probe to check the peer's status.

Custom IP addresses can be configured as probe targets to verify the peer's activeness.

'You can configure the SRX Series device to send activeness probes to a configured IP address to verify the peer's state when the control link is down.'

Source: Juniper Networks Documentation - Control Link Failure Detection

Option D: Each peer sends a probe with the virtual IP address as the source IP address and the upstream router as the destination IP address.

The SRX devices send ICMP probes to an upstream device using the redundancy group's virtual IP address as the source.

This helps determine if the peer node is still active by verifying network reachability.

'When the control link fails, each node sends ICMP pings to the configured probe addresses using the redundancy group's virtual IP address as the source.'

Source: Juniper Networks Documentation - Chassis Cluster Control Link Failure

Why Options B and C are Incorrect:

Option B: Fabric link heartbeats cannot be used because the ICL (which includes the fabric link) is down.

Option C: Probes are sent to upstream devices, not using the virtual IP address as the destination.

Conclusion:

The correct options are A and D because they accurately describe how SRX devices verify activeness without the ICL.

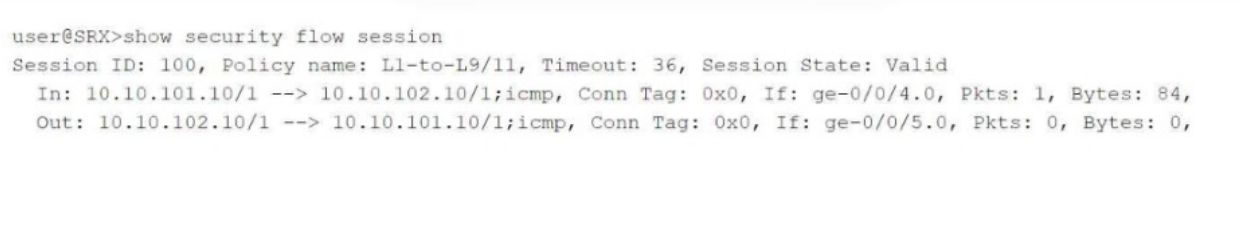

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A.

The traffic is permitted.

A.

The traffic is permitted.

Answers
B.

The traffic was initiated by the 10.10.102.10 address.

B.

The traffic was initiated by the 10.10.102.10 address.

Answers
C.

The destination device is not responding.

C.

The destination device is not responding.

Answers
D.

The traffic is denied.

D.

The traffic is denied.

Answers
Suggested answer: A, C

Explanation:

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding the Session Output:

Session State: Valid

Indicates that the session is active and permitted by security policies.

Policy Name: L1-to-L9/11

Shows the policy that allowed the session.

In Direction:

Source: 10.10.101.10

Destination: 10.10.102.10

Packets: 1

Bytes: 84

Out Direction:

Packets: 0

Bytes: 0

Indicates no return traffic.

Option A: The traffic is permitted.

The session state is Valid, and a policy name is specified.

This means the SRX device allowed the traffic.

'A session with a Valid state and an associated policy name indicates permitted traffic.'

Source: Juniper TechLibrary - Understanding Security Flow Sessions

Option C: The destination device is not responding.

The lack of packets in the Out direction suggests that the destination (10.10.102.10) is not responding.

'If there are no packets in the reverse direction, it may indicate that the destination host is not responding.'

Source: Juniper KB - Troubleshooting Traffic Flows

Why Options B and D are Incorrect:

Option B: The traffic was initiated by 10.10.101.10, not 10.10.102.10.

Option D: The session is valid and permitted; the traffic is not denied.

Conclusion:

The correct options are A and C because they accurately describe the state of the session.

You are setting up multinode HA for redundancy.

Which two statements are correct in this scenario? (Choose two.)

A.

Dynamic routing is active on one device at a time.

A.

Dynamic routing is active on one device at a time.

Answers
B.

Dynamic routing is active on both devices.

B.

Dynamic routing is active on both devices.

Answers
C.

Physical connections are used for the control and fabric links.

C.

Physical connections are used for the control and fabric links.

Answers
D.

ICL links require Layer 3 connectivity between peers.

D.

ICL links require Layer 3 connectivity between peers.

Answers
Suggested answer: A, C

Explanation:

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding Multinode HA:

Chassis Cluster in Active/Passive Mode:

One node is active, and the other is standby.

Dynamic Routing Protocols:

Run on the active node only.

Option A: Dynamic routing is active on one device at a time.

In active/passive HA, dynamic routing protocols run only on the primary (active) node.

'In a chassis cluster, the primary node handles all control plane tasks, including dynamic routing.'

Source: Juniper TechLibrary - Chassis Cluster Overview

Option C: Physical connections are used for the control and fabric links.

Control and fabric links are direct physical connections between cluster nodes.

'The control and fabric links must be connected using physical interfaces between the nodes.'

Source: Juniper TechLibrary - Chassis Cluster Components

Why Options B and D are Incorrect:

Option B: Dynamic routing is not active on both devices simultaneously in active/passive mode.

Option D: The Inter-Cluster Link (ICL) uses Layer 2 connectivity, not Layer 3.

Conclusion:

The correct options are A and C.

You want to configure the SRX Series device to map two peer interfaces together and ensure that there is no switching or routing lookup to forward traffic.

Which feature on the SRX Series device is used to accomplish this task?

A.

Transparent mode

A.

Transparent mode

Answers
B.

Secure wire

B.

Secure wire

Answers
C.

Mixed mode

C.

Mixed mode

Answers
D.

Switching mode

D.

Switching mode

Answers
Suggested answer: B

Explanation:

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding Secure Wire:

Secure Wire Feature:

Connects two interfaces directly without any Layer 2 or Layer 3 processing.

No routing or switching lookup occurs.

Use Case:

Ideal for scenarios where traffic needs to pass through the SRX device transparently.

Option B: Secure wire

Secure wire creates a bidirectional link between two interfaces.

Traffic flows between the interfaces as if they are connected by a physical wire.

'The secure wire feature allows traffic to pass between two interfaces without any security processing or route lookups.'

Source: Juniper TechLibrary - Secure Wire Overview

Why Other Options Are Incorrect:

Option A: Transparent mode involves Layer 2 switching.

Option C: Mixed mode combines Layer 2 and Layer 3 but doesn't prevent switching/routing lookups.

Option D: Switching mode operates at Layer 2 and includes switching lookups.

Conclusion:

Secure wire is the correct feature to map two interfaces together without switching or routing lookups.

You are enabling advanced policy-based routing. You have configured a static route that has a next hop from the inet.0 routing table. Unfortunately, this static route is not active in your routing instance.

In this scenario, which solution is needed to use this next hop?

A.

Use RIB groups.

A.

Use RIB groups.

Answers
B.

Use filter-based forwarding.

B.

Use filter-based forwarding.

Answers
C.

Use transparent mode.

C.

Use transparent mode.

Answers
D.

Use policies.

D.

Use policies.

Answers
Suggested answer: A

Explanation:

To enable advanced policy-based routing in Junos OS and activate a static route with a next-hop address in the inet.0 table within your routing instance, you should utilize RIB groups. RIB groups allow you to import routes from one routing table to another. In this scenario, the static route within the routing instance needs access to the inet.0 routes, which is facilitated by configuring a RIB group. Juniper's documentation outlines RIB groups as a necessary component for handling instances where routes need to be shared across routing tables, thereby ensuring seamless traffic flow through specified routes. For more details, refer to the Juniper Networks Documentation on RIB Groups.

In Junos OS for SRX Series devices, when enabling advanced policy-based routing and configuring a static route with a next-hop from the inet.0 routing table, the issue arises because the static route is not being used in the routing instance. This is a common scenario when the next-hop belongs to a different routing table or instance, and the routing instance is not aware of that next-hop.

To resolve this, RIB (Routing Information Base) groups are used. RIB groups allow routes from one routing table (RIB) to be shared or imported into another routing table. This means that the routing instance can import the necessary routes from inet.0 and make them available for the routing instance where the policy-based routing is applied.

Detailed Steps:

Configure the Static Route: First, configure the static route pointing to the next-hop in inet.0. Here's an example:

bash

set routing-options static route 10.1.1.0/24 next-hop 192.168.1.1

This static route will be placed in the inet.0 routing table by default.

Create and Apply a RIB Group: To import routes from inet.0 into the routing instance, create a RIB group configuration. This will allow the static route from inet.0 to be visible within the routing instance.

Example configuration for the RIB group:

bash

set routing-options rib-groups RIB-GROUP import-rib inet.0

set routing-options rib-groups RIB-GROUP import-rib <routing-instance-name>.inet.0

This configuration ensures that routes from inet.0 are imported into the specified routing instance.

Apply the RIB Group to the Routing Instance: Once the RIB group is configured, apply it to the appropriate routing instance:

bash

set routing-instances <routing-instance-name> routing-options rib-group RIB-GROUP

Verify Configuration: Use the following command to verify that the static route has been imported into the routing instance:

bash

show route table <routing-instance-name>.inet.0

The output should now display the static route imported from inet.0.

Juniper Security

Reference:

RIB Groups Overview: Juniper's documentation provides detailed information on how RIB groups function and how to use them to share routes between different routing tables. This is essential for scenarios involving policy-based routing where routes from one instance (like inet.0) need to be available in another instance. Reference: Juniper Networks Documentation on RIB Groups.

By using RIB groups, you ensure that the static route from inet.0 is available in the appropriate routing instance for policy-based routing to function correctly. This avoids the need for other methods like filter-based forwarding or transparent mode, which do not address the specific issue of static route visibility across routing instances.

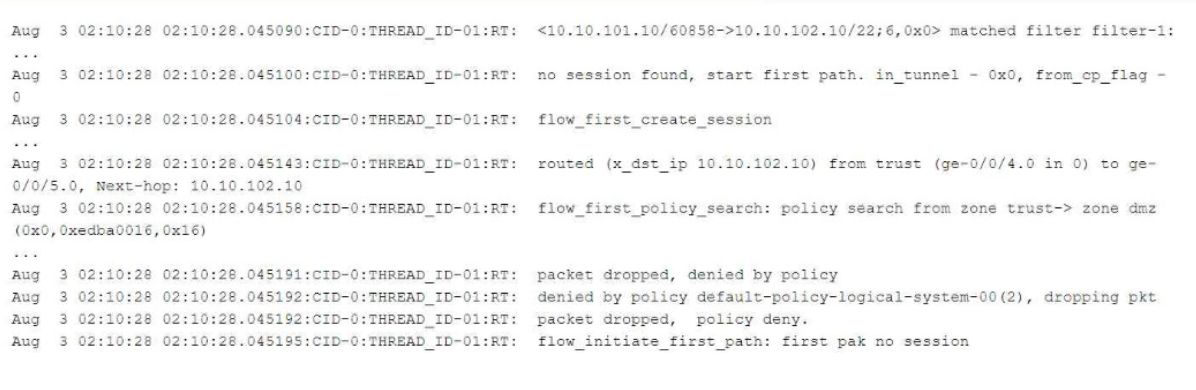

Exhibit:

Referring to the flow logs exhibit, which two statements are correct? (Choose two.)

A.

The packet is dropped by the default security policy.

A.

The packet is dropped by the default security policy.

Answers
B.

The packet is dropped by a configured security policy.

B.

The packet is dropped by a configured security policy.

Answers
C.

The data shown requires a traceoptions flag of host-traffic.

C.

The data shown requires a traceoptions flag of host-traffic.

Answers
D.

The data shown requires a traceoptions flag of basic-datapath.

D.

The data shown requires a traceoptions flag of basic-datapath.

Answers
Suggested answer: A, D

Explanation:

Understanding the Flow Log Output:

From the flow logs in the exhibit, we can observe the following key events:

The session creation was initiated (flow_first_create_session), but the policy search failed (flow_first_policy_search), which implies that no matching policy was found between the zones involved (zone trust-> zone dmz).

The packet was dropped with the reason 'denied by policy.' This shows that the packet was dropped either due to no matching security policy or because the default policy denies the traffic (packet dropped, denied by policy).

The line denied by policy default-policy-logical-system-00(2) indicates that the default security policy is responsible for denying the traffic, confirming that no explicit security policy was configured to allow this traffic.

Explanation of Answer A (Dropped by the default security policy):

The log message clearly states that the packet was dropped by the default security policy (default-policy-logical-system-00). In Junos, when a session is attempted between two zones and no explicit policy exists to allow the traffic, the default policy is to deny the traffic. This is a common behavior in Junos OS when a security policy does not explicitly allow traffic between zones.

Explanation of Answer D (Requires traceoptions flag of basic-datapath):

The information displayed in the log involves session creation, flow policy search, and packet dropping due to policy violations, which are all part of basic packet processing in the data path. This type of information is logged when the traceoptions flag is set to basic-datapath. The basic-datapath traceoption provides detailed information about the forwarding process, including policy lookups and packet drops, which is precisely what we see in the exhibit.

The traceoptions flag host-traffic (Answer C) is incorrect because host-traffic is typically used for traffic destined to or generated from the Junos device itself (e.g., SSH or SNMP traffic to the SRX device), not for traffic passing through the device.

To capture flow processing details like those shown, you need the basic-datapath traceoptions flag, which provides details about packet forwarding and policy evaluation.

Step-by-Step Configuration for Tracing (Basic-Datapath):

Enable flow traceoptions:

To capture detailed information about how traffic is being processed, including policy lookups and flow session creation, enable traceoptions for the flow.

bash

set security flow traceoptions file flow-log

set security flow traceoptions flag basic-datapath

Apply the configuration and commit:

bash

commit

View the logs:

Once enabled, you can check the trace logs for packet flows, policy lookups, and session creation details:

bash

show log flow-log

This log will contain information similar to the exhibit, including session creation attempts and packet drops due to security policy.

Juniper Security

Reference:

Default Security Policies: Juniper SRX devices have a default security policy to deny all traffic that is not explicitly allowed by user-defined policies. This is essential for security best practices. Reference: Juniper Networks Documentation on Security Policies.

Traceoptions for Debugging Flows: Using traceoptions is crucial for debugging and understanding how traffic is handled by the SRX, particularly when issues arise from policy misconfigurations or routing. Reference: Juniper Traceoptions.

By using the basic-datapath traceoptions, you can gain insights into how the device processes traffic, including policy lookups, route lookups, and packet drops, as demonstrated in the exhibit.

Exhibit:

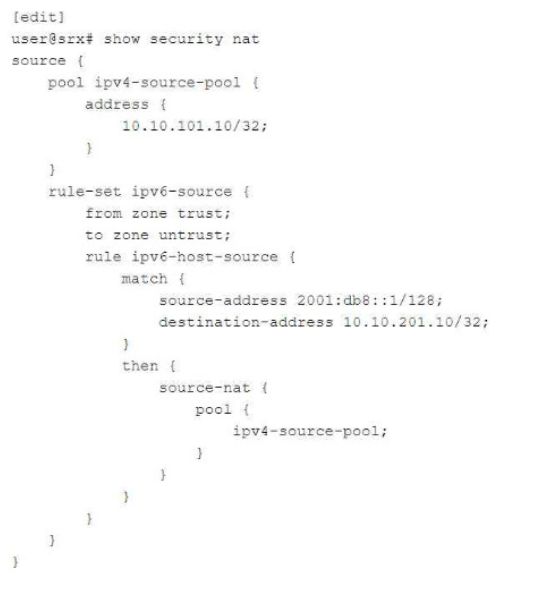

You are configuring NAT64 on your SRX Series device. You have committed the configuration shown in the exhibit. Unfortunately, the communication with the 10.10.201.10 server is not working. You have verified that the interfaces, security zones, and security policies are all correctly configured.

In this scenario, which action will solve this issue?

A.

Configure source NAT to translate return traffic from IPv4 address to the IPv6 address of your source device.

A.

Configure source NAT to translate return traffic from IPv4 address to the IPv6 address of your source device.

Answers
B.

Configure proxy-ARP on the external IPv4 interface for the 10.10.201.10/32 address.

B.

Configure proxy-ARP on the external IPv4 interface for the 10.10.201.10/32 address.

Answers
C.

Configure proxy-NDP on the IPv6 interface for the 2001:db8::1/128 address.

C.

Configure proxy-NDP on the IPv6 interface for the 2001:db8::1/128 address.

Answers
D.

Configure destination NAT to translate return traffic from the IPv4 address to the IPv6 address of your source device.

D.

Configure destination NAT to translate return traffic from the IPv4 address to the IPv6 address of your source device.

Answers
Suggested answer: D

What are three core components for enabling advanced policy-based routing? (Choose three.)

A.

Filter-based forwarding

A.

Filter-based forwarding

Answers
B.

Routing options

B.

Routing options

Answers
C.

Routing instance

C.

Routing instance

Answers
D.

APBR profile

D.

APBR profile

Answers
E.

Policies

E.

Policies

Answers
Suggested answer: A, C, D

Explanation:

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network's requirements. Refer to Juniper's APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper's SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables. To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24

set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies.

Juniper Security

Reference:

Advanced Policy-Based Routing (APBR): Juniper's APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs. Reference: Juniper Networks APBR Documentation.

You want to bypass IDP for traffic destined to social media sites using APBR, but it is not working and IDP is dropping the session.

What are two reasons for this problem? (Choose two.)

A.

The session did not properly reclassify midstream to the correct APBR rule.

A.

The session did not properly reclassify midstream to the correct APBR rule.

Answers
B.

IDP disable is not configured on the APBR rule.

B.

IDP disable is not configured on the APBR rule.

Answers
C.

The application services bypass is not configured on the APBR rule.

C.

The application services bypass is not configured on the APBR rule.

Answers
D.

The APBR rule does a match on the first packet.

D.

The APBR rule does a match on the first packet.

Answers
Suggested answer: A, C

Explanation:

Explanation of Answer A (Session Reclassification):

APBR (Advanced Policy-Based Routing) requires the session to be classified based on the specified rule, which can change midstream as additional packets are processed. If the session was already established before the APBR rule took effect, the traffic may not be correctly reclassified to match the new APBR rule, leading to IDP (Intrusion Detection and Prevention) processing instead of being bypassed. This can occur especially when the session was already established before the rule change.

Explanation of Answer C (Application Services Bypass):

For APBR to work and bypass the IDP service, the application services bypass must be explicitly configured. Without this configuration, the APBR rule may redirect the traffic, but the IDP service will still inspect and potentially drop the traffic. This is especially important for traffic destined for specific sites like social media platforms where bypassing IDP is desired.

Example configuration for bypassing IDP services:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Step-by-Step Resolution:

Reclassify the Session Midstream:

If the traffic was already being processed before the APBR rule was applied, ensure that the session is reclassified by terminating the current session or ensuring the APBR rule is applied from the start.

Command to clear the session:

bash

clear security flow session destination-prefix <ip-address>

Configure Application Services Bypass:

Ensure that the APBR rule includes the application services bypass configuration to properly bypass IDP or any other security services for traffic that should not be inspected.

Example configuration:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Juniper Security

Reference:

Session Reclassification in APBR: APBR requires reclassification of sessions in real-time to ensure midstream packets are processed by the correct rule. This is crucial when policies change dynamically or new rules are added.

Application Services Bypass in APBR: This feature ensures that security services such as IDP are bypassed for traffic that matches specific APBR rules. This is essential for applications where performance is a priority and security inspection is not necessary.

Which two statements are correct about mixed mode? (Choose two.)

A.

Layer 2 and Layer 3 interfaces can use the same security zone.

A.

Layer 2 and Layer 3 interfaces can use the same security zone.

Answers
B.

IRB interfaces can be used to route traffic.

B.

IRB interfaces can be used to route traffic.

Answers
C.

Layer 2 and Layer 3 interfaces can use separate security zones.

C.

Layer 2 and Layer 3 interfaces can use separate security zones.

Answers
D.

IRB interfaces cannot be used to route traffic.

D.

IRB interfaces cannot be used to route traffic.

Answers
Suggested answer: B, C
Total 115 questions
Go to page: of 12
