In this configuration, User1 is logged into logical system LSYS-1, which restricts access and visibility to that particular system. This ensures isolation between logical systems on the same physical device. Only a system administrator can assign additional permissions. For more details, see Juniper Logical Systems Guide.

From the exhibit, we see that User1 is logged into logical system LSYS-1:

Access to Assigned Logical System (Answer A): User1, being logged into the logical system LSYS-1, only has access to the configuration and interfaces within that logical system. This is a key feature of logical systems in Junos, ensuring users are restricted to their respective environments.

Logged into LSYS-1 (Answer B): The prompt shows that User1 is currently operating in LSYS-1, as indicated by the User1@SRX:LSYS-1> command line.

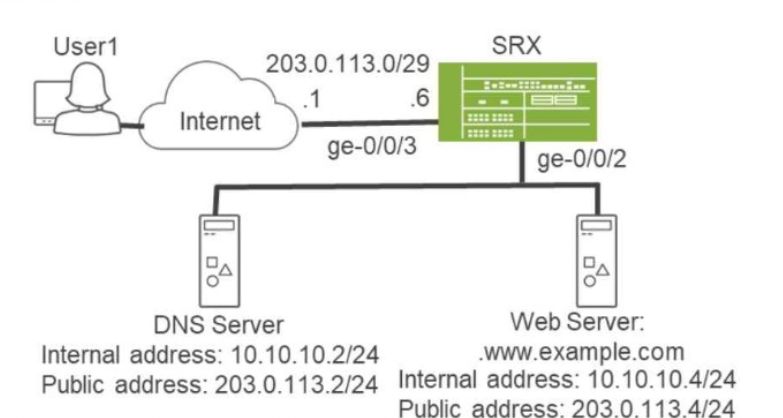

In the scenario where internal users are trying to access the company's web server via its FQDN but the DNS server resolves to a private IP, two key actions are needed:

Static NAT (Answer B): Since the internal DNS server resolves the web server to its private IP address (10.10.10.4/24), you need to configure static NAT for both the DNS server and the webserver. This will ensure that requests coming from the internet will be translated to the web server's public IP (203.0.113.4) and the DNS server's public IP (203.0.113.2).

Example Command:

bash

set security nat static rule-set public-to-private from zone untrust

set security nat static rule-set public-to-private rule dns-server match destination-address 203.0.113.2/32

set security nat static rule-set public-to-private rule dns-server then static-nat-prefix 10.10.10.2/32

set security nat static rule-set public-to-private rule web-server match destination-address 203.0.113.4/32

set security nat static rule-set public-to-private rule web-server then static-nat-prefix 10.10.10.4/32

Proxy ARP (Answer D): The SRX needs to respond to ARP requests for the public IP addresses of both the DNS and webserver on the interface facing the internet (ge-0/0/3). This allows the SRX to handle requests directed at the public IPs.

Example Command:

set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.2/32

set interfaces ge-0/0/3 unit 0 family inet proxy-arp interface-address 203.0.113.4/32

These two configurations allow external users to access the internal web server via its public IP, as resolved by the DNS server.

Exception traffic, including management and control plane traffic, is handled by examining host-inbound traffic configurations at the ingress interface and zone. It ensures traffic reaches necessary services like SSH and IKE securely. See Juniper Host Inbound Traffic Documentation for more.

SRX Series devices handle exception traffic (such as management traffic like SSH, Telnet, DNS queries, etc.) differently than regular transit traffic. Exception traffic is examined based on host-inbound traffic for the ingress interface and zone. If traffic is destined for the device itself (e.g., management traffic or routing protocol messages), it must be allowed as host-inbound traffic on both the ingress interface and zone.

Example Command:

bash

set security zones security-zone trust host-inbound-traffic system-services ssh

This ensures that traffic destined to the SRX device is inspected based on the ingress interface and zone.

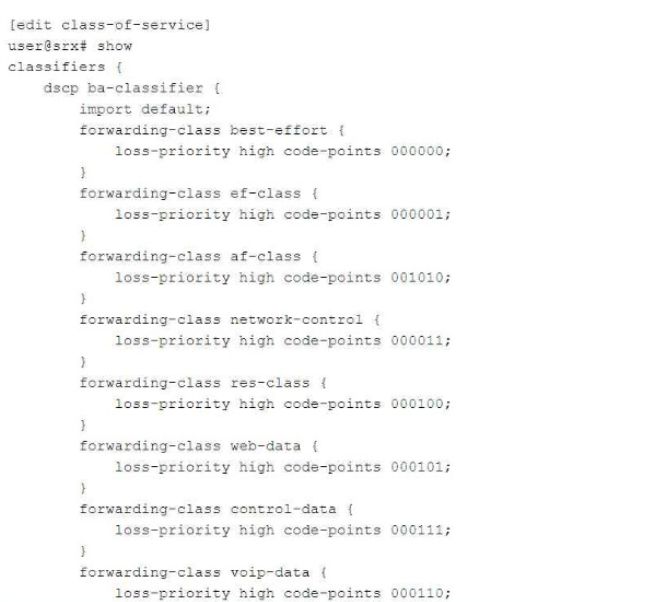

In the exhibit, the CoS-based VPN configuration is not functioning correctly due to an issue with the number of forwarding classes. The maximum number of forwarding classes supported for CoS-based VPNs with multiple SAs (security associations) is typically four forwarding classes. In this case, more than four forwarding classes are defined.

To solve the issue, one forwarding class must be deleted to ensure that the total number of forwarding classes is reduced to four or fewer.

The SRX Series can inspect traffic within VXLAN tunnels, providing in-depth security services across multiple layers. Adding SRX in the overlay network allows comprehensive control, leveraging advanced firewall capabilities. For more details, see Juniper EVPN-VXLAN Security.

When integrating an SRX Series device into an EVPN-VXLAN solution, it offers several security benefits:

Layer 4-7 Security Services (Answer A): The SRX can provide deep packet inspection for VXLAN encapsulated traffic, enhancing security by offering services such as intrusion prevention, application layer filtering, and antivirus scanning. This allows security monitoring of the encapsulated traffic at higher layers of the OSI model (Layers 4-7), which is essential for advanced threat detection.

Security in the Overlay Network (Answer C): The SRX adds security by functioning as an enterprise-grade firewall within the EVPN-VXLAN overlay. This means that traffic flowing between virtualized segments or networks can be inspected and filtered using SRX firewall rules, ensuring that the VXLAN overlay remains secure.

These features make the SRX a powerful addition for securing EVPN-VXLAN environments, providing comprehensive security for encapsulated traffic and ensuring that both the underlay and overlay networks are protected.
