Question 31

(0)

You are asked to implement fault tolerant RPs in your multicast network. Which two solutions would accomplish this behavior? (Choose two.)

Question 32

(0)

Your network has an unmanaged switch between the hosts and your EX Series switch. After the traffic enters the EX Series switch, each host must be on a separate VLAN. How would you accomplish this

Question 33

(0)

Which three MSTP parameters must match on all switches in the same MST region? (Choose three.)

Question 34

(0)

Referring to the exhibit, a PIM-SM network is set up to enable communication between multicast devices. Which two statements are true? (Choose two.)

Question 35

(0)

When using wide metrics, which two statements about route advertisement between IS-IS levels are correct? (Choose two.)

Question 36

(0)

Question 37

(0)

You recently committed a change to a router to reject OSPF routes sourced from area 10. However, you are still seeing area 10 routes in the routing table. Referring to the exhibit, which statement

Question 38

(0)

Your EX Series switch has IP telephones and computers connected to a single switch port. You are considering implementing the voice VLAN feature to help with this setup. In this scenario, which two

Question 39

(0)

You are deploying new Juniper EX Series switches in a network that currently is using Cisco's Per- VLAN spanning tree plus (PVST+) and you must provide compatibility with this environment. Which sp

Question 40

(0)

A modified deficit round-robin scheduler is defined by which three variables? (Choose three.)

Question 31

You are asked to implement fault tolerant RPs in your multicast network.

Which two solutions would accomplish this behavior? (Choose two.)

Use BFD with statically defined RPs.

Use MSDP with statically defined RPs.

Use anycast PIM with statically defined RPs.

Use IGMPv3 with statically defined RPs.

Show Answer Comment (0)

Question 32

Your network has an unmanaged switch between the hosts and your EX Series switch. After the traffic enters the EX Series switch, each host must be on a separate VLAN.

How would you accomplish this task?

Configure an input firewall filter on interface ge-0/0/3 to match the source MAC or IP address of the hosts to assign the VLANs.

Configure an output firewall filter on interface ge-0/0/1 to match the destination MAC or IP address of the hosts to assign the VLANs.

Configure interface ge-0/0/3 to a mode trunk to assign the VLANs.

Configure VSTP on interface ge-0/0/1 to assign the VLANs.

Show Answer Comment (0)

Question 33

Which three MSTP parameters must match on all switches in the same MST region? (Choose three.)

forwarding delay

bridge priority

revision number

MSTI-to-VLAN mapping

configuration name

Show Answer Comment (0)

Question 34

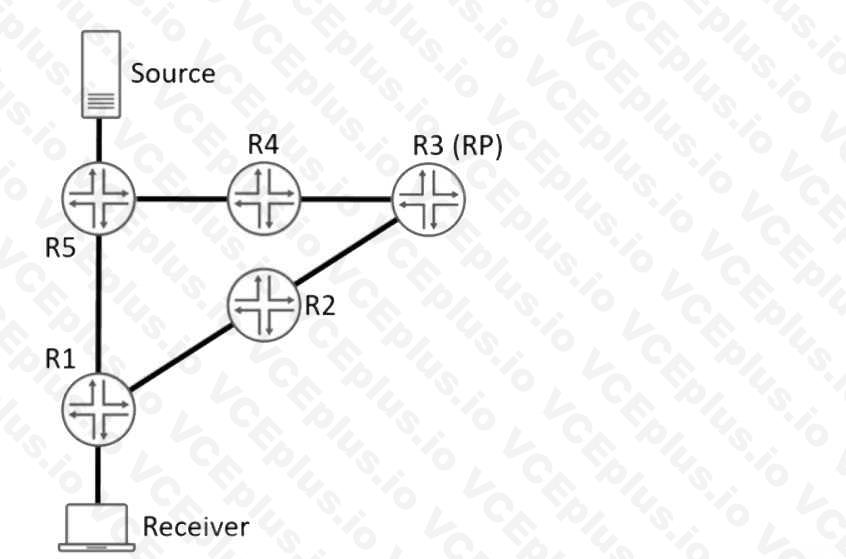

Referring to the exhibit, a PIM-SM network is set up to enable communication between multicast devices.

Which two statements are true? (Choose two.)

Before the formation of the rendezvous-point tree, a join message is sent from R1 to R3.

Before the formation of the rendezvous-point tree, an IGMP is sent from the Receiver to R1.

Before the formation of the rendezvous-point tree, an IGMP is sent from the Source to R5.

Before the formation of the rendezvous-point tree, a join message is sent from R1 to R5.

Show Answer Comment (0)

Question 35

When using wide metrics, which two statements about route advertisement between IS-IS levels are correct? (Choose two.)

Level 1 and Level 2 routers do not advertise Level 2 routes into the Level 1 area by default.

Level 1 routes are advertised to Level 2 routers by default.

If wide-metrics-only is configured, Level 1 routes are not advertised to Level 2 routers by default.

Level 1 routes advertised as external routes into Level 1 are not advertised to any Level 2 routers by default.

Show Answer Comment (0)

Question 36

What are two similarities between OSPFv2 and OSPFv3? (Choose two.)

virtual links

support for multiple instances per link

32-bit router ID

protocol processing per link, not per subnet

Show Answer Comment (0)

Question 37

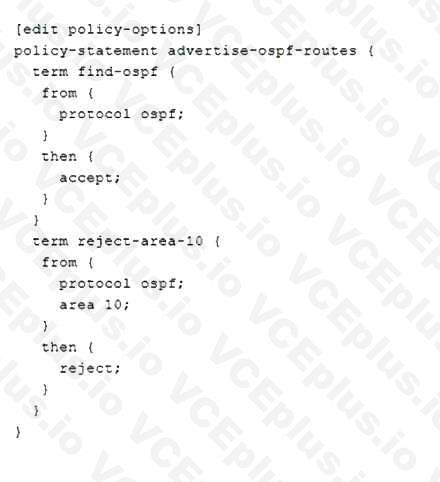

You recently committed a change to a router to reject OSPF routes sourced from area 10. However, you are still seeing area 10 routes in the routing table.

Referring to the exhibit, which statement is correct?

The OSPF protocol is first matched by find-ospf and accepted.

The routes only timeout after 24 hours.

The routes remain in the table until the device is rebooted.

The routes remain in the table until the routing daemon is restarted.

Show Answer Comment (0)

Question 38

Your EX Series switch has IP telephones and computers connected to a single switch port. You are considering implementing the voice VLAN feature to help with this setup.

In this scenario, which two statements are correct? (Choose two.)

The voice VLAN feature must be used with LLDP-MED to associate VLAN ID and 802.1p values with the traffic.

The interfaces must be configured as access ports.

Assigning the incoming voice and data traffic to separate VLANs enables the ability to prioritize the traffic using CoS.

The voice VLAN feature will enable incoming tagged data and voice traffic to be associated with separate VLANs.

Show Answer Comment (0)

Question 39

You are deploying new Juniper EX Series switches in a network that currently is using Cisco's Per- VLAN spanning tree plus (PVST+) and you must provide compatibility with this environment.

Which spanning tree protocol do you deploy in this scenario?

STP

MSTP

VSTP

RSTP

Show Answer Comment (0)
