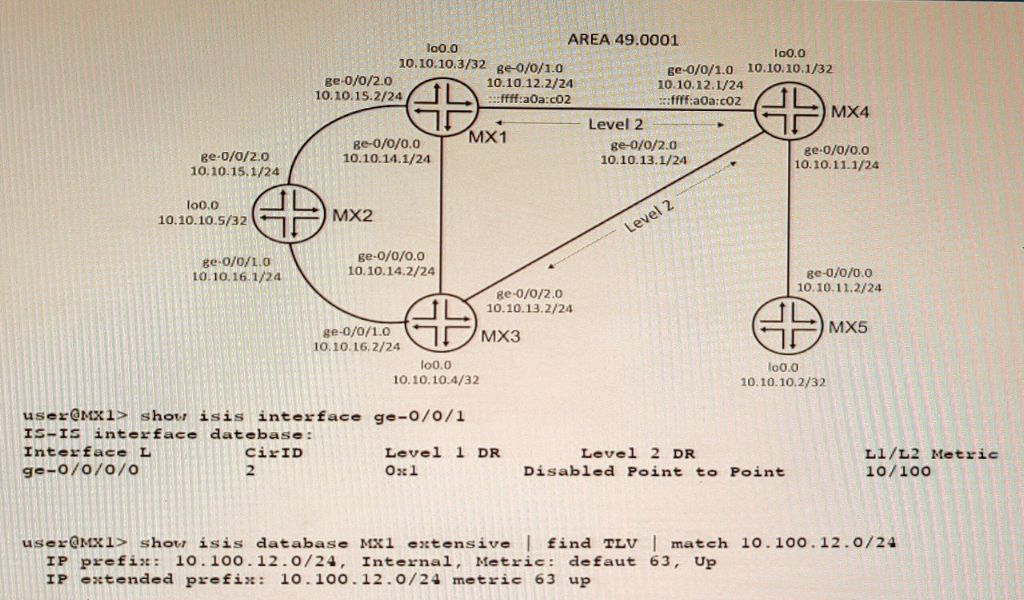

TLVs are tuples of (Type, Length, Value) that can be advertised in IS-IS packets. TLVs can carry different kinds of information in the Link State Packets (LSPs). IS-IS supports both narrow and wide metrics for link costs. Narrow metrics use a single octet to encode the link cost, while wide metrics use three octets. Narrow metrics have a maximum value of 63, while wide metrics have a maximum value of 16777215. If there are both narrow and wide metric devices in the topology, IS-IS will advertise two TLVs for each link: one with the narrow metric and one with the wide metric.This allows backward compatibility with older devices that only support narrow metrics12.

OSPF uses different types of LSAs to describe different aspects of the network topology. Type 1 LSAs are also known as router LSAs, and they describe the links and interfaces of a router within an area. Type 3 LSAs are also known as summary LSAs, and they describe routes to networks outside an area but within the same autonomous system (AS). By default, OSPF will summarize routes from Type 1 LSAs into Type 3 LSAs when advertising them across area boundaries .

BGP FlowSpec is a feature that extends the Border Gateway Protocol (BGP) to enable routers to exchange traffic flow specifications, allowing for more precise control of network traffic. The BGP FlowSpec feature enables routers to advertise and receive information about specific flows in the network, such as those originating from a particular source or destined for a particular destination.Routers can then use this information to construct traffic filters that allow or deny packets of a certain type, rate limit flows, or perform other actions1.BGP FlowSpec can also help in filtering traffic and taking action against distributed denial of service (DDoS) attacks by dropping the DDoS traffic or diverting it to an analyzer2.BGP FlowSpec rules are internally converted to equivalent Cisco Common Classification Policy Language (C3PL) representing corresponding match and action parameters2. Therefore, BGP FlowSpec uses dynamically created routing policies to protect a network from denial-of-service attacks.

Junos platforms use different mechanisms to evaluate incoming traffic for CoS purposes, such as:

Behavior aggregate classifiers: These classifiers use a single field in a packet header to classify traffic into different forwarding classes and loss priorities based on predefined or user-defined values.

Fixed classifiers: These classifiers use a fixed field in a packet header to classify traffic into different forwarding classes and loss priorities based on predefined values.

Multifield classifiers: These classifiers use multiple fields in a packet header to classify traffic into different forwarding classes and loss priorities based on user-defined values and filters.

Rewrite rules and traffic shapers are not used to evaluate incoming traffic for CoS purposes, but rather to modify or shape outgoing traffic based on CoS policies.

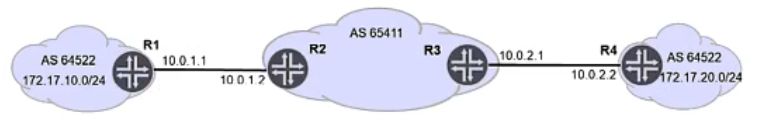

BGP uses several attributes to select the best path for a destination prefix. One of these attributes is origin, which indicates how BGP learned about a route. The origin attribute can have one of three values: IGP, EGP, or Incomplete. IGP means that the route was originated by a network or aggregate statement within BGP or by redistribution from an IGP into BGP. EGP means that the route was learned from an external BGP peer (this value is obsolete since BGP version 4). Incomplete means that the route was learned by some other means, such as redistribution from a static route into BGP. BGP prefers routes with lower origin values, so Incomplete is preferred over EGP, which is preferred over IGP.

behavior aggregate (BA) classifiers and multifield (MF) classifiers are two types of classifiers that are used to assign packets to a forwarding class and a loss priority based on different criteria. The forwarding class determines the output queue for a packet. The loss priority is used by a scheduler to control packet discard during periods of congestion.

A BA classifier maps packets to a forwarding class and a loss priority based on a fixed-length field in the packet header, such as DSCP, IP precedence, MPLS EXP, or IEEE 802.1p CoS bits. A BA classifier is computationally efficient and suitable for core devices that handle high traffic volumes. A BA classifier is useful if the traffic comes from a trusted source and the CoS value in the packet header is trusted.

An MF classifier maps packets to a forwarding class and a loss priority based on multiple fields in the packet header, such as source address, destination address, protocol type, port number, or VLAN ID. An MF classifier is more flexible and granular than a BA classifier and can match packets based on complex filter rules. An MF classifier is suitable for edge devices that need to classify traffic from untrusted sources or rewrite packet headers.

You can configure both a BA classifier and an MF classifier on an interface. If you do this, the BA classification is performed first and then the MF classification. If the two classification results conflict, the MF classification result overrides the BA classification result.

Based on this information, we can infer the following statements:

The packet will be discarded. This is not correct because the packet will not be discarded by the classifiers unless it matches a filter rule that specifies discard as an action. The classifiers only assign packets to a forwarding class and a loss priority based on their match criteria.

The packet will be processed by the BA classifier first, then the MF classifier. This is correct because if both a BA classifier and an MF classifier are configured on an interface, the BA classification is performed first and then the MF classification. If they conflict, the MF classification result overrides the BA classification result.

The packet will be forwarded with no classification changes. This is not correct because the packet will be classified by both the BA classifier and the MF classifier if they are configured on an interface. The final classification result will determine which output queue and which discard policy will be applied to the packet.

The packet will be processed by the MF classifier first, then the BA classifier. This is not correct because if both a BA classifier and an MF classifier are configured on an interface, the BA classification is performed first and then the MF classification. If they conflict, the MF classification result overrides the BA classification result.

A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone. A sham link creates an OSPF multihop neighborship between the PE routers using TCP port 646.The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes, which allows OSPF to use the correct metric for route selection1.
