Issue Analysis:

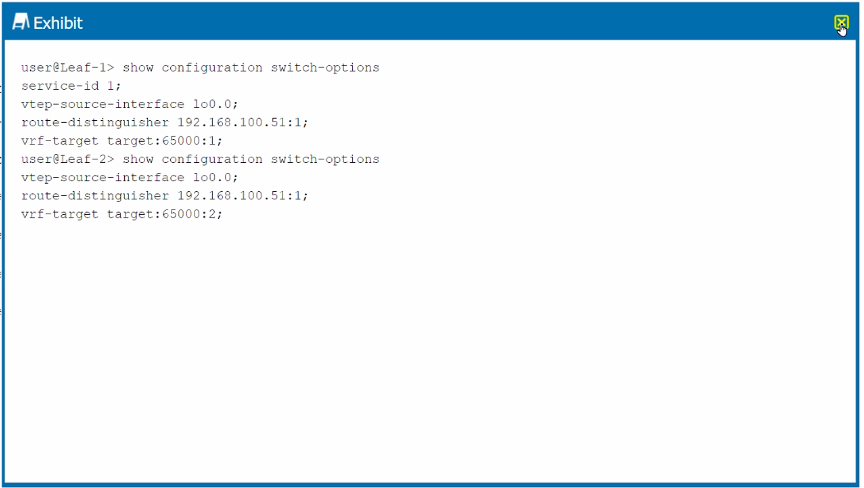

The problem in the exhibit suggests a mismatch in configuration parameters between Leaf-1 and Leaf-2, leading to communication issues between hosts connected to these leaf devices.

Configuration Mismatches:

Service-ID: Leaf-1 has service-id 1 configured, while Leaf-2 does not have this parameter. For consistency and proper operation, the service-id should be the same across both leaf devices.

VRF Target: Leaf-1 is configured with vrf-target target:65000:1, while Leaf-2 is configured with vrf-target target:65000:2. To allow proper VRF import/export between the two leafs, these should match.

Corrective Actions:

C . Configure the set switch-options vrf-target target:65000:1 parameter on Leaf-2: This aligns the VRF targets between the two leaf devices, ensuring they can correctly import and export routes.

E . Configure the set switch-options service-id 1 parameter on Leaf-2: This ensures that both Leaf-1 and Leaf-2 use the same service ID, which is necessary for consistency in the EVPN-VXLAN setup.

Data Center

Reference:

Correct configuration of VRF targets and service IDs is critical in EVPN-VXLAN setups to ensure that routes and services are correctly shared and recognized between different devices in the network fabric.

Multicast-Signaled VXLAN:

In traditional multicast-signaled VXLAN, VTEPs (VXLAN Tunnel Endpoints) use multicast to flood and learn about remote VTEPs. This method relies on multicast in the underlay network to distribute BUM (Broadcast, Unknown unicast, and Multicast) traffic.

This approach can be resource-intensive due to the need for multicast group management and increased network traffic, especially in large deployments.

EVPN-Signaled VXLAN:

EVPN-signaled VXLAN uses BGP (Border Gateway Protocol) to signal the presence of VTEPs and distribute MAC address information. BGP is used for VTEP autodiscovery and the distribution of endpoint information.

This method is more efficient because it reduces the reliance on multicast, instead using BGP control-plane signaling to handle VTEP discovery and MAC learning, which reduces the overhead on the network and improves scalability.

Correct Statements:

B . An EVPN-signaled VXLAN can perform autodiscovery of VTEPs using BGP: This is correct because EVPN uses BGP for VTEP autodiscovery, making it more efficient and scalable compared to multicast-based methods.

C . An EVPN-signaled VXLAN is less resource-intensive: This is correct because it eliminates the need for multicast flooding in the underlay, instead using BGP for signaling, which is less demanding on network resources.

Incorrect Statements:

A . An EVPN-signaled VXLAN can perform autodiscovery of VTEPs using IS-IS: This is incorrect because EVPN relies on BGP, not IS-IS, for VTEP discovery and signaling.

D . An EVPN-signaled VXLAN features slower and more complete convergence: This is incorrect; EVPN with BGP typically provides faster convergence due to its use of a control plane rather than relying on data plane learning.

Data Center

Reference:

EVPN-VXLAN is widely adopted in modern data center designs due to its scalability, efficiency, and reduced resource consumption compared to multicast-based VXLAN solutions. It leverages the strengths of BGP for control-plane-driven operations, resulting in more efficient and scalable networks.

VXLAN Overview:

VXLAN (Virtual Extensible LAN) is a network virtualization technology that encapsulates Layer 2 Ethernet frames into Layer 3 UDP packets for transmission over an IP network. It allows the creation of Layer 2 overlay networks across a Layer 3 infrastructure.

Understanding VXLAN Components:

VTEP (VXLAN Tunnel Endpoint): A VTEP is responsible for encapsulating and decapsulating Ethernet frames into and from VXLAN packets.

VNI (VXLAN Network Identifier): A 24-bit identifier used to distinguish different VXLAN segments, allowing for up to 16 million unique segments.

Correct Statements:

C . Layer 2 frames are encapsulated by the source VTEP: This is correct. In a VXLAN deployment, the source VTEP encapsulates the original Layer 2 Ethernet frame into a VXLAN packet before transmitting it over the IP network to the destination VTEP, which then decapsulates it.

A . A VXLAN packet does not contain a VLAN ID: This is correct. The VXLAN header does not carry the original VLAN ID; instead, it uses the VNI to identify the network segment. The VLAN ID is local to the switch and does not traverse the VXLAN tunnel.

Incorrect Statements:

B . The VNI must match the VLAN tag to ensure that the remote VTEP can decapsulate VXLAN packets: This is incorrect. The VNI is independent of the VLAN tag, and the VLAN ID does not need to match the VNI. The VNI is what the remote VTEP uses to identify the correct VXLAN segment.

D . The VNI is a 16-bit value and can range from 0 through 16,777,215: This is incorrect because the VNI is a 24-bit value, allowing for a range of 0 to 16,777,215.

Data Center

Reference:

VXLAN technology is critical for modern data centers as it enables scalability and efficient segmentation without the constraints of traditional VLAN limits.

Issue Overview:

The leaf devices in an IP fabric using eBGP are advertising and receiving all routes, but the routes are not being installed in the routing table and are marked as hidden. This typically indicates an issue with the BGP configuration, particularly with next-hop handling or AS path concerns.

Corrective Actions:

B . You need to configure a next-hop self policy: This action ensures that the leaf devices modify the next-hop attribute to their own IP address before advertising routes to their peers. This is particularly important in eBGP setups where the next-hop may not be directly reachable by other peers.

D . You need to configure multipath multiple-as: This setting allows the router to accept multiple paths from different autonomous systems (ASes) and use them for load balancing. Without this, the BGP process might consider only one path and mark others as hidden.

Incorrect Statements:

A . You need to configure as-override: AS-override is used to replace the AS number in the AS-path attribute to prevent loop detection issues in MPLS VPNs, not in a typical eBGP IP fabric setup.

C . You need to configure loops 2: There is no specific BGP command loops 2 relevant to resolving hidden routes in this context. It might be confused with allowas-in, which is used to allow AS path loops under certain conditions.

Data Center

Reference:

Proper BGP configuration is crucial in IP fabrics to ensure route propagation and to prevent routes from being marked as hidden. Configuration parameters like next-hop self and multipath multiple-as are common solutions to ensure optimal route installation and load balancing in a multi-vendor environment.

Understanding the Scenario:

In an EVPN-VXLAN environment, when using multi-homing in active/active scenarios, there's a risk that a multihomed server might receive duplicate copies of Broadcast, Unknown unicast, and Multicast (BUM) traffic. This is because multiple VTEPs might forward the same BUM traffic to the server.

EVPN Route Types:

Type 4 Route (Ethernet Segment Route): This route type is used to advertise the Ethernet Segment (ES) to which the device is connected. It is specifically used in multi-homing scenarios to signal the ES and its associated Ethernet Tag to all the remote VTEPs. The Type 4 route includes information that helps prevent BUM traffic duplication in active/active multi-homing by using a split-horizon mechanism, which ensures that traffic sent to a multihomed device does not get looped back.

The Type 4 route is crucial for ensuring that in a multi-homed setup, particularly in an active/active configuration, BUM traffic does not result in duplication at the server. The route helps coordinate which VTEP is responsible for forwarding the BUM traffic to the server, thereby preventing duplicate traffic.

Data Center

Reference:

Type 4 routes are essential for managing multi-homing in EVPN to avoid the issues of BUM traffic duplication, which could otherwise lead to inefficiencies and potential network issues.

Scenario Overview:

Converting an MX Series router from a VXLAN Layer 2 gateway to a VXLAN Layer 3 gateway involves transitioning the router's functionality from simply bridging traffic within a VXLAN segment to routing traffic between different segments.

Key Configuration Requirement:

IRB (Integrated Routing and Bridging) Interface: An IRB interface allows for both Layer 2 switching and Layer 3 routing. To enable routing for a specific VNI (VXLAN Network Identifier), the IRB interface must be associated with the routing function in the corresponding bridge domain.

Correct Command:

C . set bridge-domains VLAN-100 routing-interface irb.100: This command correctly binds the IRB interface to the bridge domain, enabling Layer 3 routing functionality within the VXLAN for VNI 100. This effectively transitions the device from operating solely as a Layer 2 gateway to a Layer 3 gateway.

Data Center

Reference:

This configuration step is essential when converting a Layer 2 VXLAN gateway to a Layer 3 gateway, enabling the MX Series router to route between VXLAN segments.

Understanding VRF and Routing Instances:

In an EVPN-VXLAN overlay network, multiple tenants are separated using unique VRF (Virtual Routing and Forwarding) instances. Each VRF instance maintains its own routing table, allowing for isolated routing domains within the same network infrastructure.

Role of Route Distinguisher:

Route Distinguisher (RD): The RD is a unique identifier used in MPLS and EVPN environments to distinguish routes belonging to different VRFs. The RD is prepended to the IP address in the route advertisement, ensuring that routes from different tenants remain unique even if they use the same IP address range.

Correct Property:

the route distinguisher value: This is the correct answer because the RD is crucial in determining which routing information belongs to which VRF instance. It ensures that each VRF's routing table only contains relevant routes, maintaining isolation between tenants. Data Center

Reference: The RD is a key element in MPLS and EVPN-based multi-tenant environments, ensuring proper routing segregation and isolation for different VRFs within the data center fabric.

Understanding the Configuration:

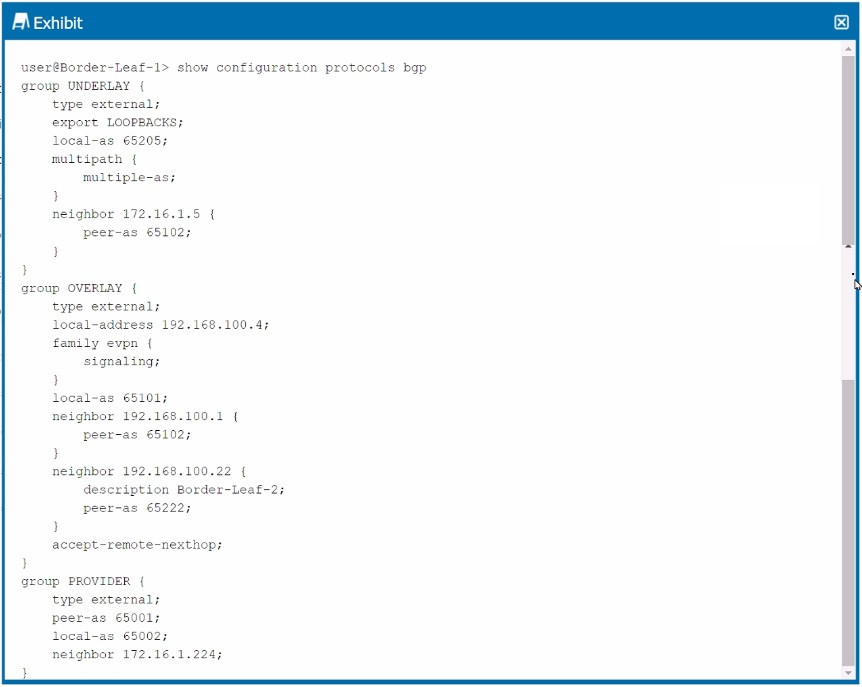

The exhibit shows a BGP configuration on a Border-Leaf device. The BGP group UNDERLAY is used for the underlay network, OVERLAY for EVPN signaling, and PROVIDER for connecting to the provider network.

The OVERLAY group has the accept-remote-nexthop statement, which is designed to accept the next-hop address learned from the remote peer as is, without modifying it.

Problem Identification:

The BGP session to Border-Leaf-2 is not established. A common issue in EVPN-VXLAN environments is related to next-hop reachability, especially when accept-remote-nexthop is configured.

In typical EVPN-VXLAN setups, the next-hop address should be reachable within the overlay network. However, the accept-remote-nexthop can cause issues if the next-hop IP address is not directly reachable or conflicts with the expected behavior in the overlay.

Corrective Action:

delete protocols bgp group OVERLAY accept-remote-nexthop: Removing this command will ensure that the device uses its own IP address as the next-hop in BGP advertisements, which is standard practice in many EVPN-VXLAN setups. This change should help establish the BGP session with Border-Leaf-2. Data Center

Reference: Proper handling of BGP next-hop attributes is critical in establishing and maintaining stable BGP sessions, especially in complex multi-fabric environments like EVPN-VXLAN. Removing accept-remote-nexthop aligns with best practices in many scenarios.

Zero-Touch Provisioning (ZTP):

ZTP is a feature that allows for the automatic provisioning of devices with minimal manual intervention. It is widely used in large-scale deployments to quickly bring new devices online.

Key Requirements for ZTP:

A . DHCP Server: A DHCP server is crucial for ZTP as it provides the necessary information to new devices, such as the IP address, the location of the software image, and configuration files.

D . File Server: The file server is where the software image and configuration files are stored. The device downloads these files during the provisioning process.

Incorrect Options:

B . Syslog Server: While a syslog server is important for logging and monitoring, it is not a requirement for the initial provisioning process.

C . NTP Server: An NTP server is used for time synchronization, which is essential for accurate logging and operation but not specifically required for ZTP.

Data Center

Reference:

ZTP simplifies the deployment process by automating the initial configuration steps, relying heavily on DHCP for communication and a file server for delivering the necessary configuration and software.
